goliath IGNITE B2256EF - Connecting Upper Arms to Backboard Frame

28
HARDWARE NEEDED (ACTUAL SIZE)
3/8" WASHER
701-50
QTY. 4
36
42
9/16”
TOOLS NEEDED
9/16”
34
34
34
36
36
36
36
42
42
25
25
DO NOT OVER TIGHTEN THESE BOLTS. THIS
IS A PIVOT POINT, SNUG IS TIGHT ENOUGH.
NOTE
3/8-16 LOCKNUT
901-28
QTY. 2
NYLON WASHER,
0.38 ID X 1.25 OD
3M-6883-00
QTY. 2

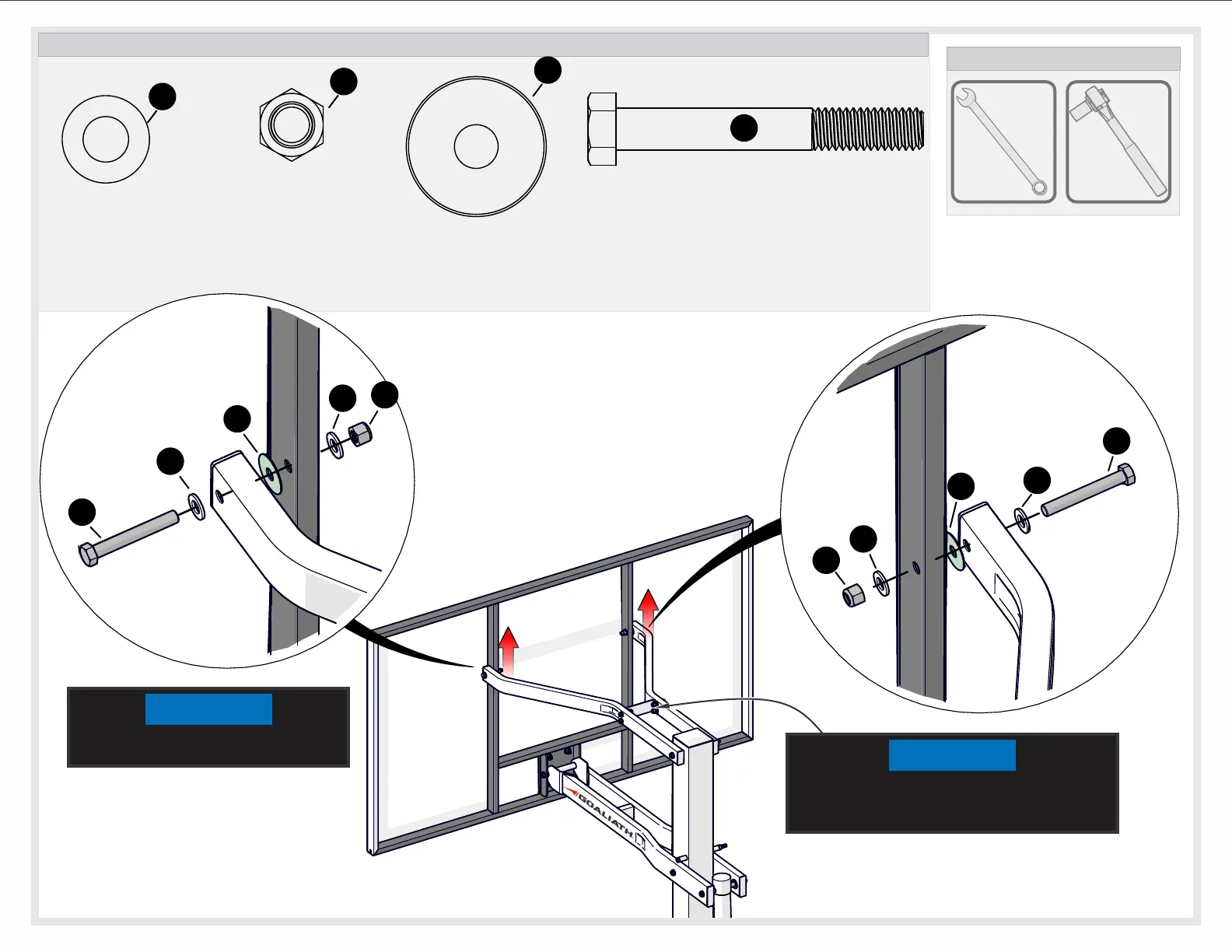

6. Pivot upper arms up and attach to the
outside of Backboard frame as shown.
Make sure you have a Nylon Washer
(#34) between the arms and the
backboard frame. Tighten this hardware
until snug tight but do not collapse
tubes.
25
3/8-16 X 2 3/4" HHCS
1B-6195-00
QTY. 2
AFTER THE BACKBOARD IS ATTACHED SNUG
TIGHTEN THE BOARD ARM BRACE HARDWARE,
FROM PAGE 23, BUT DO NOT COLLAPSE THE TUBES.
NOTE
