golmar EL632 GB2A User Manual

7

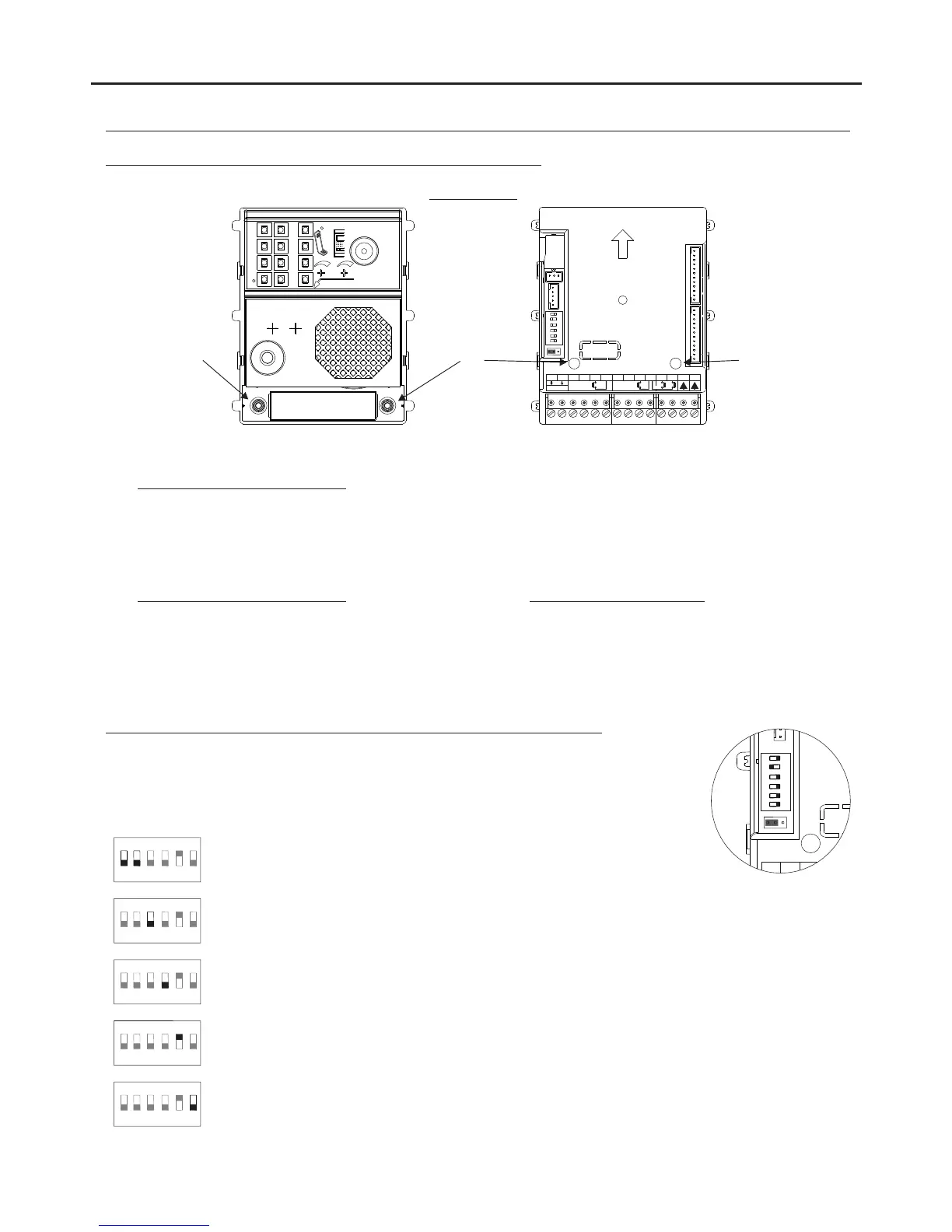

DOOR PANEL INSTALLATION
Codes assigned to the call buttons of the sound module:
C 16 31odes - C s 0 15ode -
P1P2 P2
The sound module’s P1 and P2 push buttons are assigned with factory codes.
- : .Apartment 1, push button “P1” Assigned with codes 0-15
Monitors in this apartment must be set with codes in order of allocation of 0-15.
When push button “P1” on the door panel is pressed, all of the monitors in apartment 1 will receive the call and
only the monitor assigned with code 0 will show the door panel image If the call is answered from any other.
monitor in the apartment, the image on the monitor assigned with code 0 will disappear and audio and video
communication will be established with the door panel.
- :Apartment 2, push button “P2” Assigned with codes 16-31 ( ).only kits with 2 push buttons
Monitors in this apartment must be set with codes in order of allocation of 16-31.
When push button “P2” on the door panel is pressed, all of the monitors in apartment 2 will receive the call and
only the monitor assigned with code 16 will show the door panel image If the call is answered from any other.
monitor in the apartment, the image on the monitor assigned with code 0 will disappear and audio and video
communication will be established with the door panel.
C s 16 31ode -
Description of the configuration dip switch of the sound module:
1 2 3 4 5 6
ON
+
C1
_
1
The configuration dip switch is located on the left side of the rear part of the module.
1 2
3 4 5 6
ON
Door Panel Address:
Dip switches 1 and 2 OFF (address 1), 1 ON and 2 OFF (address 2), 1 OFF and:
2 ON (address 3), 1 and 2 ON (address 4).
1 2 4 5 6
3
ON
Set to OFF.
1 2 3 5 6
4
ON
Set to OFF for use with door panels in and set to ON for use in apartmentvillas
buildings.
1 2 3 4 6
5
ON
Set to ON to configure the door release time to 5 seconds Set to OFF to.
configure the door release time to 1 second.
1 2 3 4 5
6
ON
Set to ON to configure: see pages 9-10( )
The vocal synthesis language elay 1 and Relay 2 of, rvocal synthesis volume,
the lock release will be NO or NC Set to OFF when configuring is complete..
*
( )
*
( )
Factory default setting.
*
( )
*
( )
*
( )
*
( )
*
( )
NEXA MODULAR GB2 VIDEO DOOR ENTRY SYSTEM KIT - VILLAS
EL632 GB2A
1 2 3 4 5 6
ON
NA2
+
AP-
C1
NA1
AP+
C2
AP+ AP-
P1 P2
BUSBUS
Relé 2
Relé 1
_
12Vdc
1
2
