DESCRIPTION OF THE NEXA MODULAR DOOR PANEL
5
Sound module
EL632 GB2 video door entry system with colour camera.A,

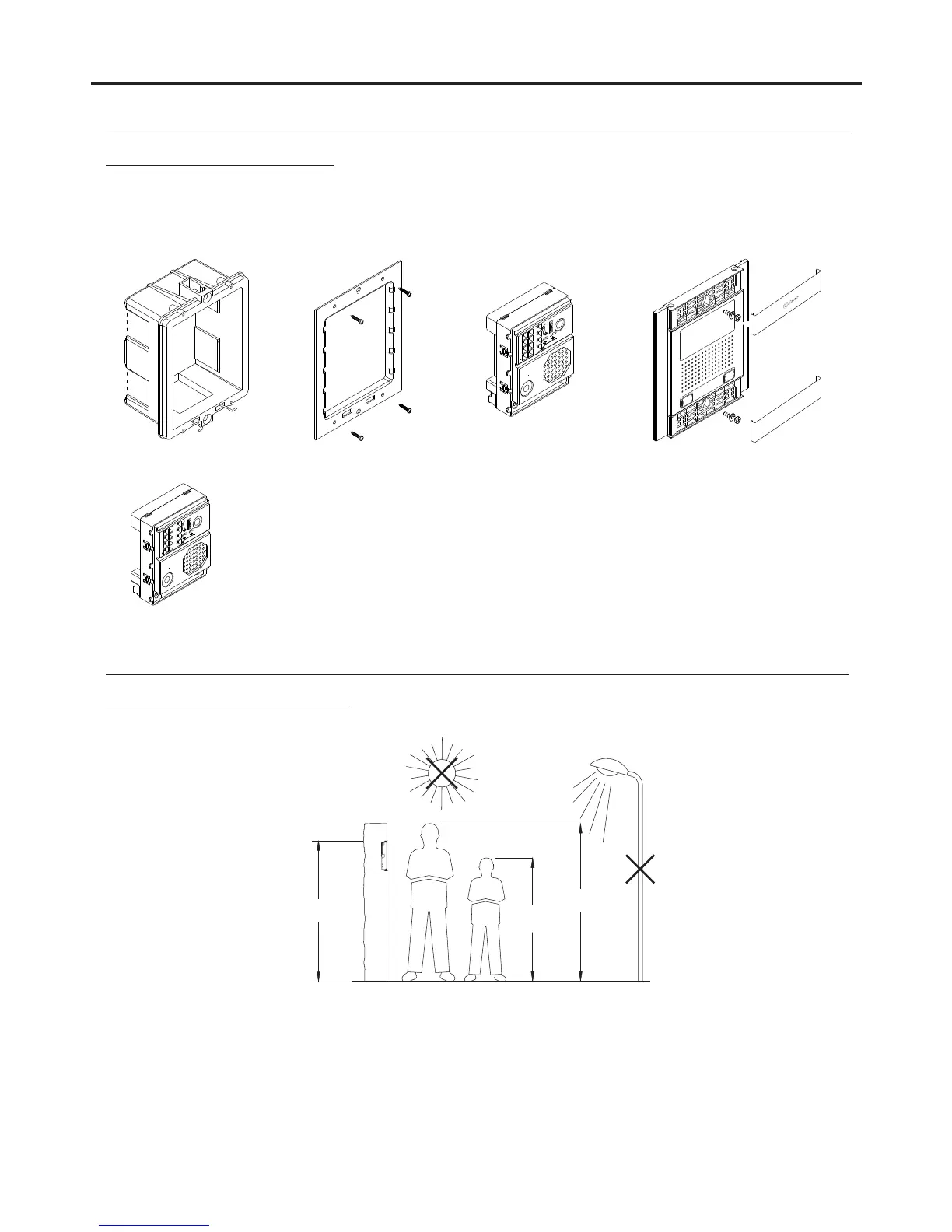

Door panel component assembly drawing:
Aluminium panel
Sound module
Frame moduleEmbedding box
Description of the door panel:
DOOR PANEL INSTALLATION
NCEV-90CS embedding box: 99(W) x 13 5(H) x (D) mm.2, 56,5
1650
1850
1450
Make a hole in the wall to position the top of the door panel at a height of 1.65m.
Hole dimensions:
The door panel has been designed to be used under most environmental conditions. It is
however advisable to take extra precautions to prolong its service life (shields, covered areas, etc.).
To obtain optimum video door entry system image quality, avoid direct contact from light
sources (sunshine, street lights, etc.).
Positioning the embedding box:
NEXA MODULAR GB2 VIDEO DOOR ENTRY SYSTEM KIT - VILLAS
