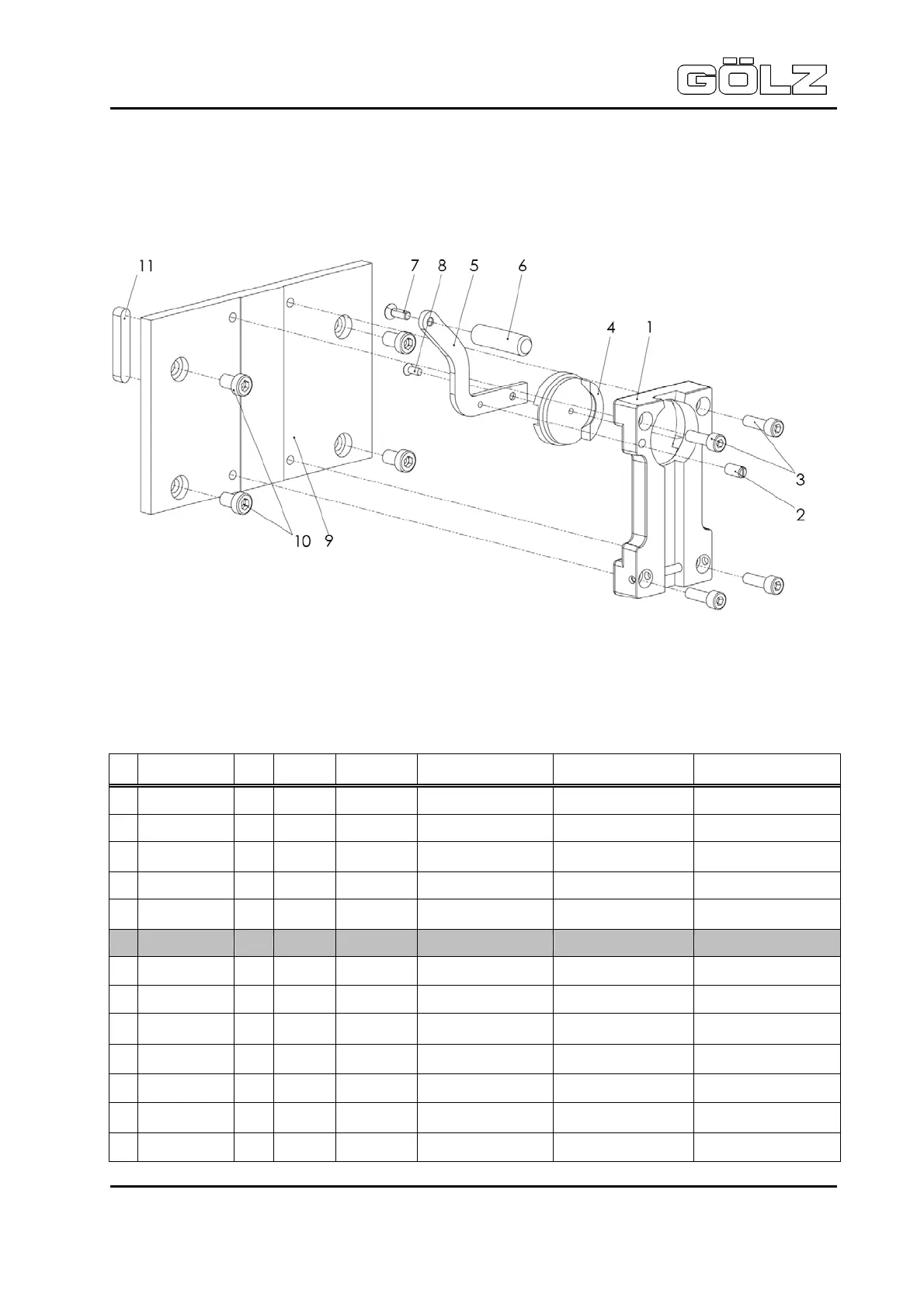

KB 200
Bedienungsanleitung / Operating instructions / Mode d’emploi
- 46-
02952000996
5005984-01
Pos Artikelnummer
Meng
e
Norm Info Bezeichnung Description Désignation
- 0295 150 0400 1 Pos. 1-10 STS Umrüstsatz STS Conversion kit STS jeu de remplacement
1 0295 000 0888 1 Gehäuseplatte Case plate Plaque de carter
0295 000 0879 1 DIN 7
(in Pos. 1)
6m 6 x 40
Bolzen Pin Cheville
2 0295 000 0882 1 Druckstück Member Vis d’arrêt
3 0295 000 0872 4
DIN EN
ISO 4762
M 10 x 16 Schraube Screw Vis
4 0295 000 0889 1 Exzenter Eccentric Excentrique
5 0295 000 0890 1 Hebel Lever Levier
6 0295 000 0891 1 Hebelbolzen Pin Poignée de levier
7 0295 000 0458 1
DIN EN
ISO 10642
M 6 x 18 Schraube Screw Vis
8 0295 000 0845 1
DIN EN
ISO 7046
M 5 x 12 Schraube Screw Vis
9 0295 000 1102 1 Zwischenplatte Plate Plaque
10 0295 000 0228 4
DIN EN
ISO 4762
M 8 x 25 Schraube Screw Vis
11 0295 000 0206 1 DIN 6885 10 x 8 x 56 Paßfeder Key Clavette
