KB 200
Bedienungsanleitung / Operating instructions / Mode d’emploi
- 20-
02952000996
5005984-01
3. Description
3.2 Technical data
Stroke
450 mm - 17.7 “ in.
Drill bit-Ø
50 - 200 mm - 1.97 - 7.87 “ in.
Feed
Manual feed
Weight (with Motor, Gear)
ca. 53 kg - app. 110 lbs.
Length
660 mm - 26 “
Width
832 mm - 32.75 “
Height
1030 mm - 40.6 ”

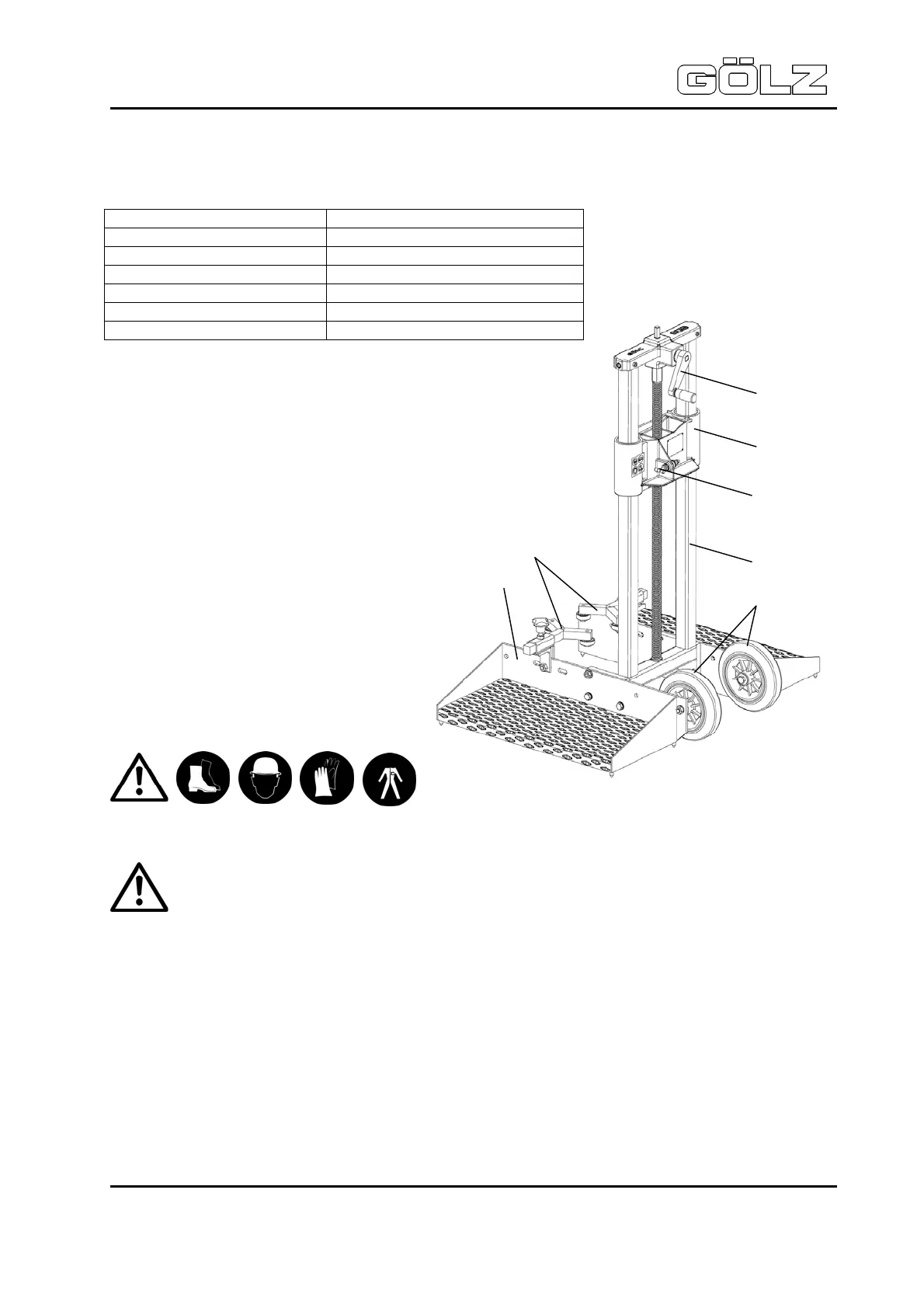

3.2 Main parts
(1) Standing plates
(2) Transporting wheels
(3) Drill carriage
(4) Crank handle
(5) Pipe layout
(8) Water valve
(9) Roller guide
4. Starting
4.1 Site
Danger of down coming drilling cores when drilling through ceilings and so on!
Secure those places against entering!
Bring the machine to the site. The site must have a solid ground and free of obstacles. Make sure the
site is well lighted.
4.2 Drill bit
The drill bits must be in accordance with the specification from Gölz GmbH.
Use suitable drill - bits, depending on the processing material, the method of operation and the
character of the job. For misuse resulting through unconventional applications, Gölz does not assume
any liability. Consider maximum speed of the drill bits. If machines are equipped with variable speed,
the maximum cutting - speed of the used drill bit must suit to the maximum speed of the machine.
