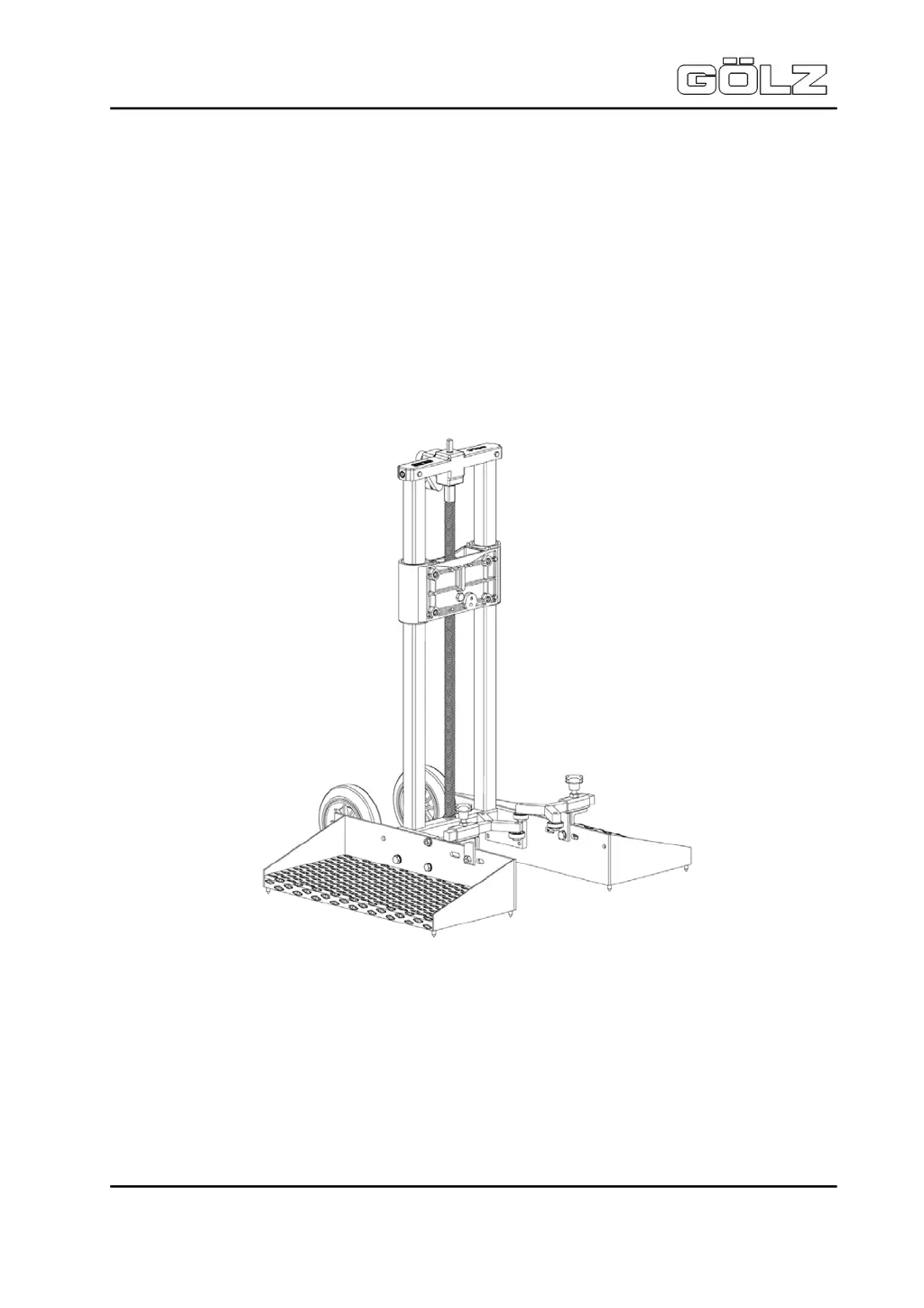

GÖLZ KB 200 - User Manual

Questions and Answers

Y
Yvonne DanielAug 3, 2025
What to do if there is excessive wear of segments on my GÖLZ KB 200 Drill?
- M
  Michele GilbertAug 3, 2025
  Excessive wear of segments in your GÖLZ Drill can be caused by several factors. If you are using soft bonded segments, switch to segments one class harder bonded, or increase the RPM and reduce the feed compression. If the segments are too narrow, use a drill bit with wider segments or reduce feed. If the RPM is too low, shift to a higher gear. If the drill bit is deformed or out of true, change the drill bit and bring the worn drill bit for rebalancing. Also check the drill stem and adjust or replace it. If you're working with abrasive material, use segments one class harder bonded and increase the water flow and the speed. If there's poor water flow, increase it to remove abrasive slurry around segments.
A
Alison HoAug 13, 2025
How to unstick a GÖLZ KB 200 Drill bit?
- R
  reginahallAug 14, 2025
  If your GÖLZ Drill bit is stuck, it could be due to loose material blocking the drill bit. Apply a wrench and rotate the drill bit in both directions while it is under tension. You can also disconnect the drill bit from the drill motor and drill over with a larger sized drill bit. Another cause could be that the drill rig was displaced during drilling. Disconnect the drill bit and remove it. Break and pull the core. Start again with improved fastening of the drill rig. If the drill hole is misaligned, drill over with a larger sized drill bit. Finally, a misaligned drill hole guidance of the drill rig could have too much clearance. Disconnect the drill rig and adjust the guidance. Start with a new hole or wash over, and do not enter the old drill hole.
D
David DavisOct 24, 2025
Why is my GÖLZ KB 200 bit blunt?
- S
  Shawn PerezOct 24, 2025
  If the GÖLZ Drill bit is blunt, several factors could be the cause. It may be due to a hard bonded segment, in which case you should use segments one class softer bonded. If the segment surface is daubed with material sludge, increase the water flow and resharp the segments. If the segment surface is daubed with steel chips, reduce the speed, increase the water flow, and resharp the segments. If the drill bit is worn out, replace it with a new one. If diamond grains are pressed into the binding, sharpen the drill bit in a sharpening plate and work with low feed. If there is no free cut because of side wards wear-out of segments, replace the drill bit and have the drill motor spindle checked. If you are drilling in steel, use a lower gear, reduce feed, and increase water flow. If the segmen...

Summary

Preface

Warning advice and Symbols

Explains various safety symbols and warnings applicable to the machine's operation.

1.1 Intended use

Specifies the machine's intended purpose and limitations, including acceptable materials for drilling.

1.2 Organizational measures

Covers manual availability, regulations, personnel training, safety checks, modifications, and maintenance.

1.3 Selection and qualification of person

Emphasizes the need for reliable, trained personnel and clearly defined responsibilities.

1.5 Safety instructions governing specific operational phases

General safety rules for different operational stages, including site assessment and machine readiness.

1.5 Special work related to the maintenance and repair of the machine

Covers adjustment, maintenance, repair, parts replacement, lifting procedures, and cleaning.

1.6 Oils, greases and other chemical substances

Provides safety regulations for handling lubricants, greases, and other chemical substances.

1.7 Changing the location of the machine

Details procedures for loading, transporting, and re-commissioning the machine safely.

2. Transport and storing

2.1 Transport

Notes on transporting the machine, specifying it's not designed for crane transport.

2.2 Storing

Guidelines for storing the machine in a dry, safe location, including preservation for long periods.

3. Description

3.2 Technical data

Lists specifications like stroke, drill bit diameter, weight, and dimensions of the drill rig.

3.2 Main parts

Identifies key components of the drill rig with a corresponding diagram.

4. Starting

4.1 Site

Safety considerations for the work site, including ground condition and lighting.

4.2 Drill bit

Requirements for drill bits and potential liability for misuse.

4.3 Fastening the machine

Details on machine fastening using standing plates, noting no special fixing is required.

4.4 Water supply

Instructions for water supply, covering both internal tanks and public water mains.

4.4.1 Water tank - pressurized type

Instructions for filling, pressurizing, and operating the onboard water tank.

4.4.2 Public water mains

Guidance on connecting the machine to a public water supply.

5. Operation

5.1 How to drill

Steps for drilling, including feed pressure, peripheral speed, and operator positioning.

6. Maintenance

6.1 Drill rig

Procedures for cleaning, function checks, parts replacement, and lubrication of the drill rig.

6.2 Drill bits

Instructions for checking drill bits for wear, damage, and for resharpening.

7. Troubleshooting

8. Drehzahlrichtwerte; RPM; Vitesse de rotation

9. Verschleißteile; Wearing parts; Pièces dusure

10. Ersatzteilliste; Spare parts list; Liste des pièces de rechange
