P. 8
Tab
Bend these claws, if necessary
12
34
182m
53m
* Remove trim ring
* Insert release keys
* Pull unit away from cage
Insert cage into car slot
Fix cage to car
slot
Insert radio into
car slot
INSTALLATION/PRECAUTIONS
• Choose the mounting location carefully so that the unit will not interfere with the normal
driving functions of the vehicle.
• Avoid installing the unit where it would be subject to high temperatures, such as from
direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or
excessive vibration.
• Use only the supplied mounting hardware for a safe and secure installation.
• Be sure to remove the front panel before installing the unit.
Mounting angle adjustment
Adjust the mounting angle to less than 20°.

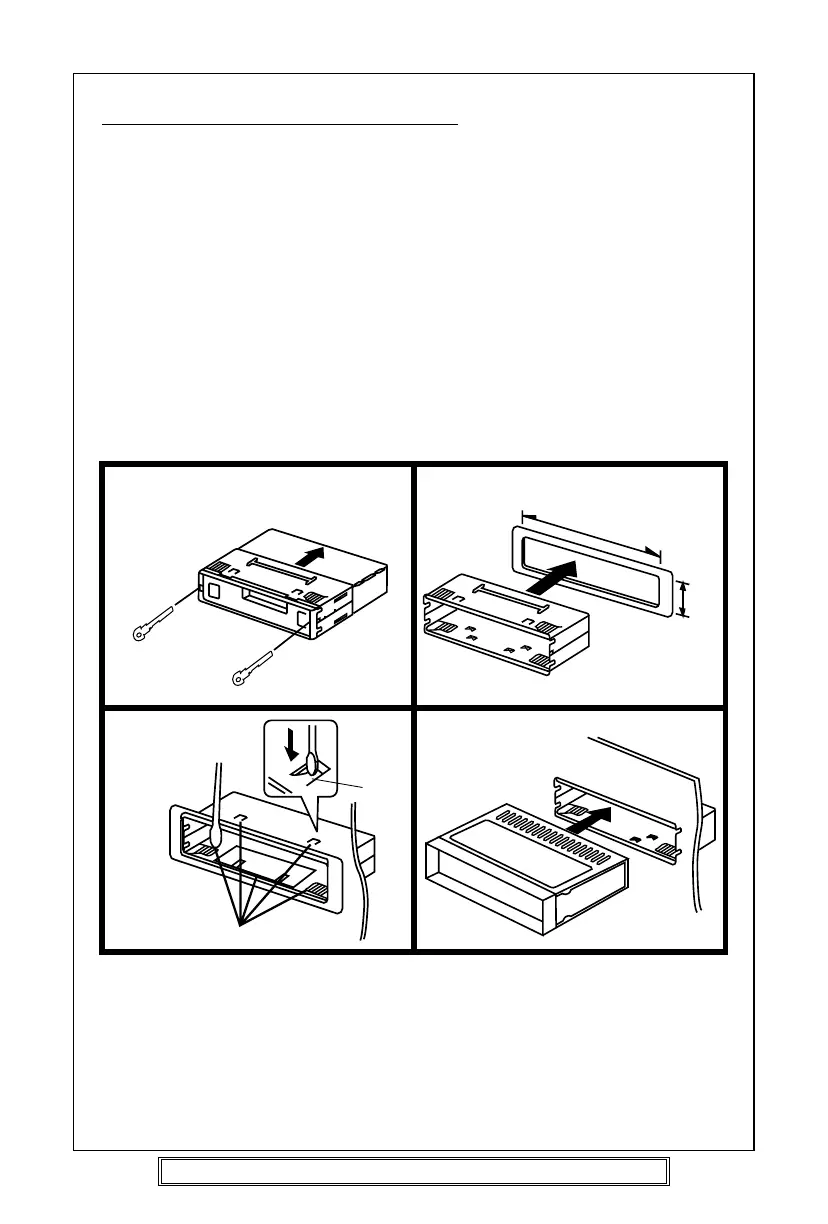

MOUNTING EXAMPLE
Installation in the dashboard
Note:
Keep the release keys in a safe place as you may need them in future to remove the unit
from the car.
Goodmans Product Information Helpline (0870) 873 0080
To Next Page
