WX-950
Installation Manual
2-20
Rev. C
2.9 DISPLAY/PROCESSOR INSTALLATION
The display/processor is designed to mount into a standard 3 ATI instrument panel cutout. The instrument
panel cutout and mounting holes are shown in figure 2-12.

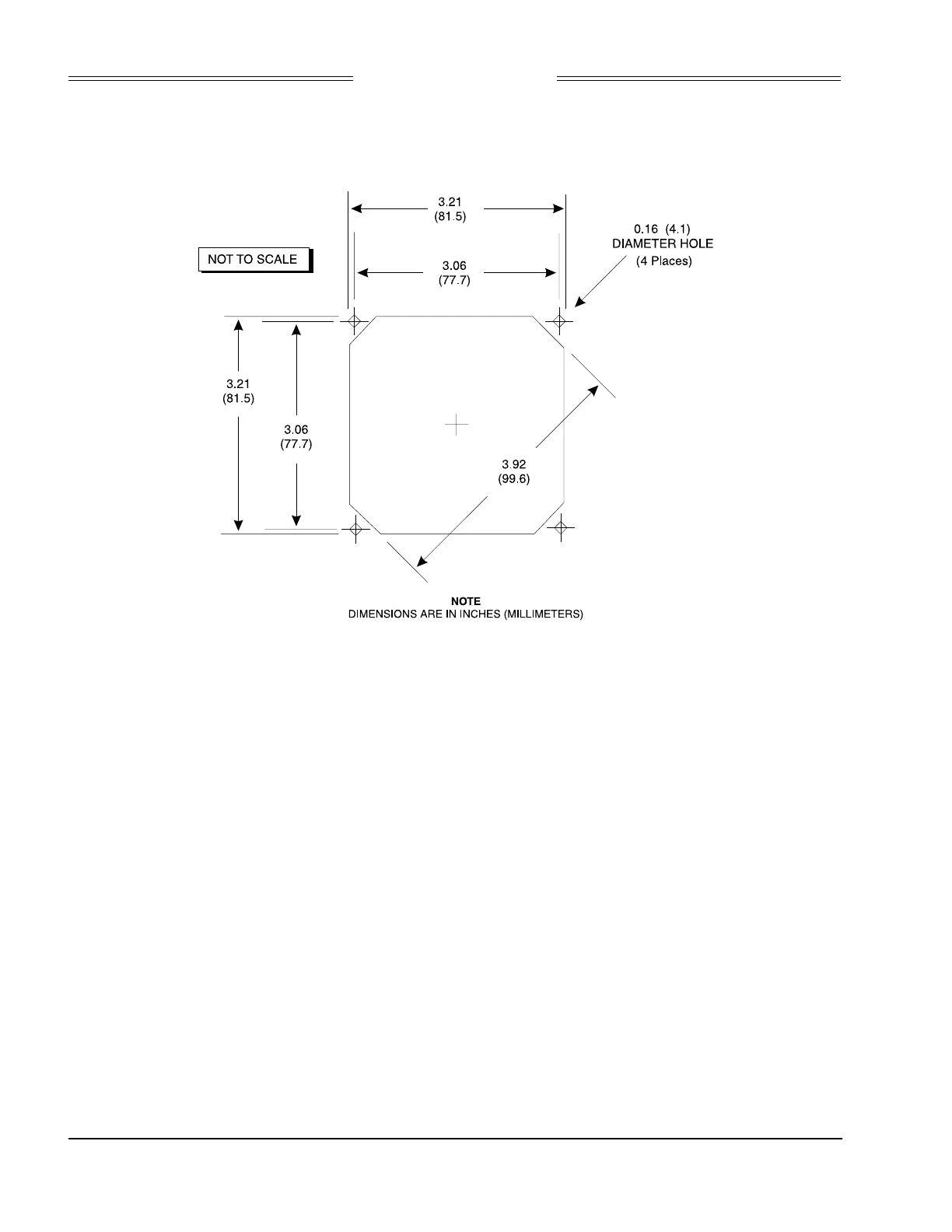

Figure 2-12. Instrument Panel Cutout and Mounting Holes
Goodrich Avionics Systems recommends front-mounting the display/processor using 6-32 rivet-nuts to
secure the unit to the instrument panel. For increased stability, in high-vibration environments, the
display/processor can be secured to the instrument panel with a mooring plate (see figure 2-13). A mooring
plate will accommodate mounting to the instrument panel from the front or from the rear.
A mooring plate can be ordered from Goodrich Avionics Systems.
P/N 78-8060-5856-2
3ATI mooring plates are also available from:
MSP, Incorporated
P.O. Box 1196
R.R. 4, Box 383A
Nashville, Indiana 47448
(812) 988-6623 FAX (812) 988-6181
