- 15 -

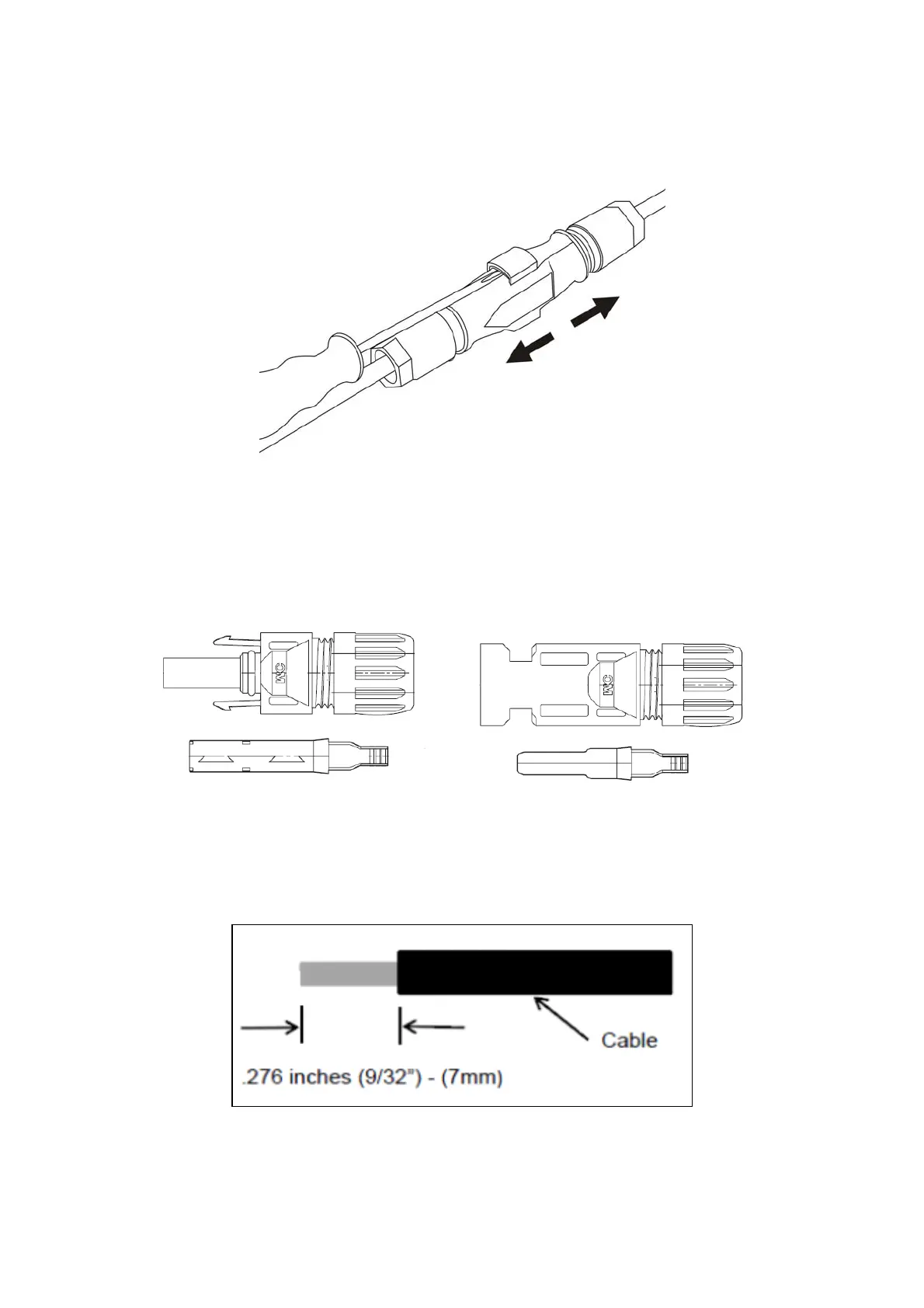

Figure 3.4.2-5
Can only be released using a screwdriver
If use Multi-contact connectors for PV array terminals, installation
as follows.
Female side connector (PV+) Male side connector (PV-)
Both types of connectors must be equipped in pair strictly
according to above graphs
