115
Chapter 6 RAID Setup Instructions
6.1 PCH configures RAID
6.1.1 Configuring RAID in UEFI Boot Mode
Operation before configuring RAID
1. During the server startup process, press Delete/Esc as prompted to enter the BIOS Setup interface.
2. Move to the PlatForm page-->PCH Configuration-->PCH Sata Configuration-->Configure SATA as.
Configure SATA to RAID mode, as shown in Figure 6-1.

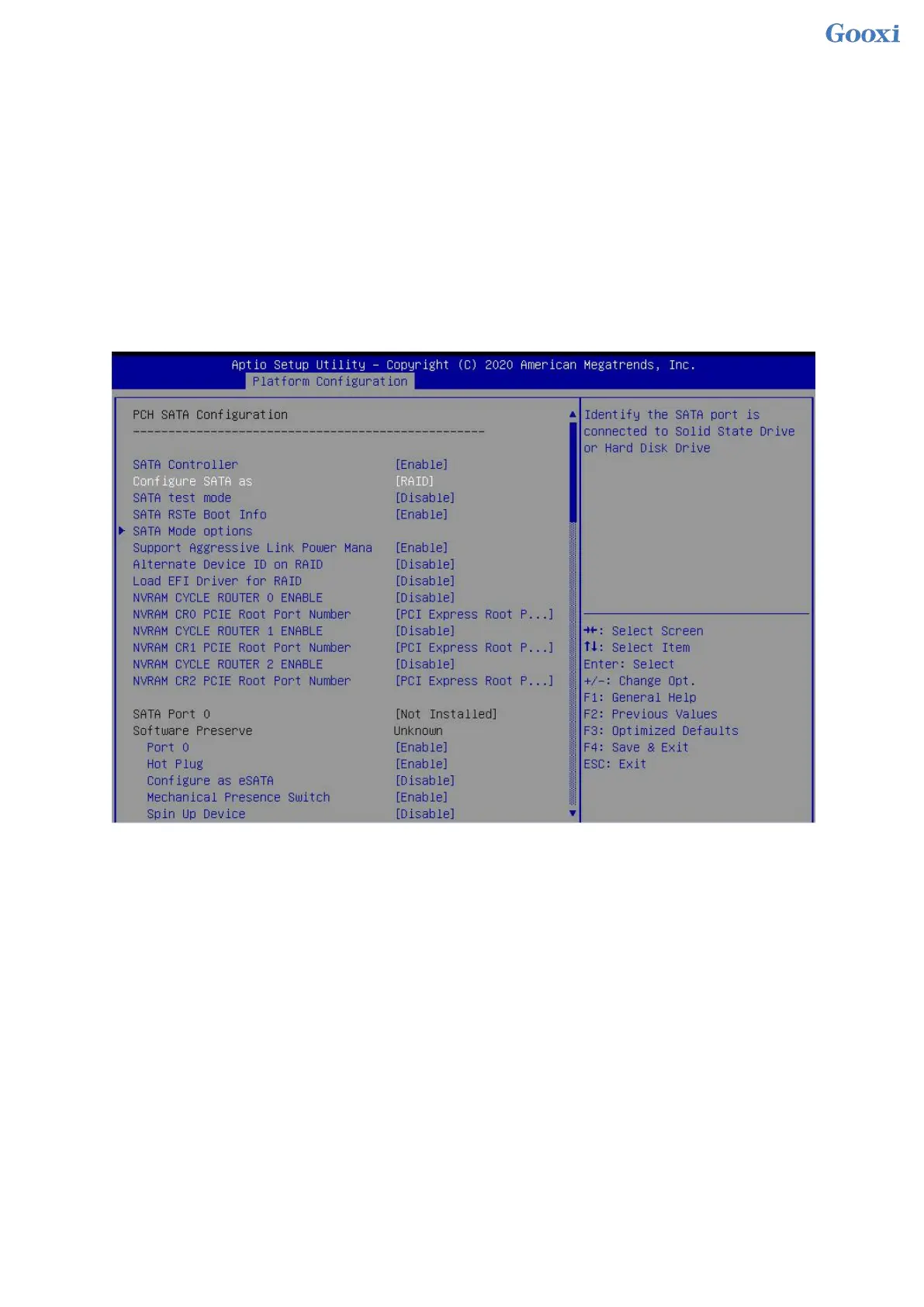

Figure 6-1 Configure SATA to RAID mode:
Figure 6- 1
3. Make sure that Storage and Video in CSM Configuration are in UEFI mode, as shown in Figure 6-2, set
Storage and Video to UEFI mode
