T-NUT
4 X 4 X 100"
ROPE LADDER RUNNER
3/8" x 5"
LAG SCREW
5/16" WASHER
3/8" WASHER
T-NUT
5/16" X 6"
HEX BOLT
LADDER
CENTER
LADDER SIDES
ROUNDED EDGE
COUNTERSUNK
HOLE

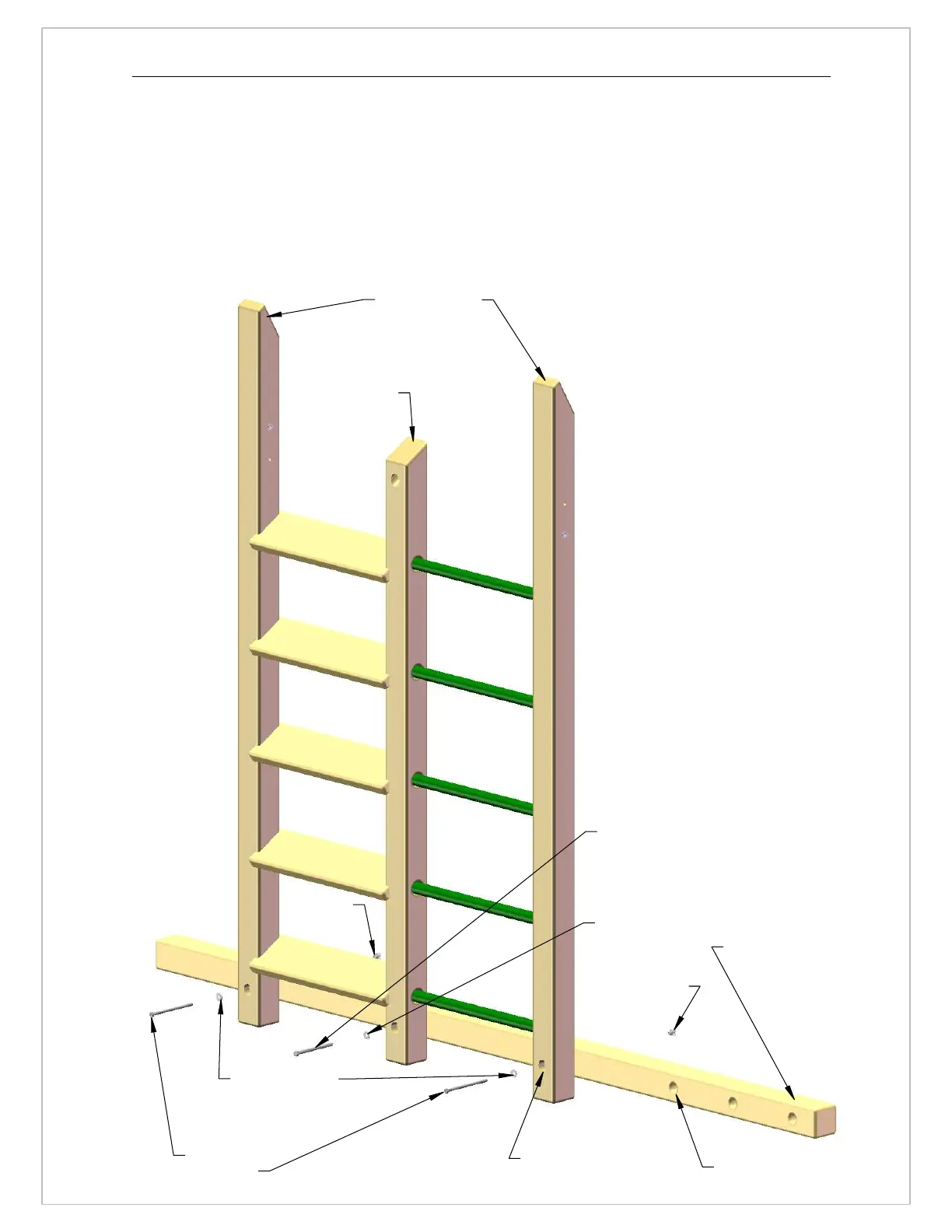

STEP 2: ATTACHING THE ROPE LADDER RUNNER
1: FIND THE 4 X 4 X 100" ROPE LADDER RUNNER. TAKE SPECIAL NOTE OF THE ROUNDED EDGE ON THE 7/8" HOLES
ON THE END OF THE ROPE LADDER RUNNER.
2: LINE UP THE TWO 3/8" PILOT HOLES ON THE ROPE LADDER RUNNER TO THE COUNTER-SUNK HOLES ON THE
LADDER SIDE PIECES. THE COUNTERSUNK HOLES OF THE LADDER ASSEMBLY WILL FACE OUTWARDS.
3: FIND TWO T-NUTS, AND SET WITH A HAMMER ON THE EXPOSED 3/8" HOLES OF THE ROPE LADDER RUNNER.
4: FASTEN THE ROPE LADDER RUNNER TO THE LADDER ASSEMBLY WITH 5/16 X 6" HEX BOLTS AND 5/16" WASHERS
THROUGH THE COUNTER-SUNK HOLES OF THE LADDER SIDES AND INTO THE T-NUTS INSTALLED IN THE ROPE LADDER
RUNNER. ATTACH THE LADDER CENTER TO THE ROPE LADDER RUNNER USING ONE 3/8" X 5" LAG SCREW AND ONE
3/8" WASHER.
