Gorilla Playsets Sun Palace - Swing Beam Assembly

STEP 24: IRON DUCTILES

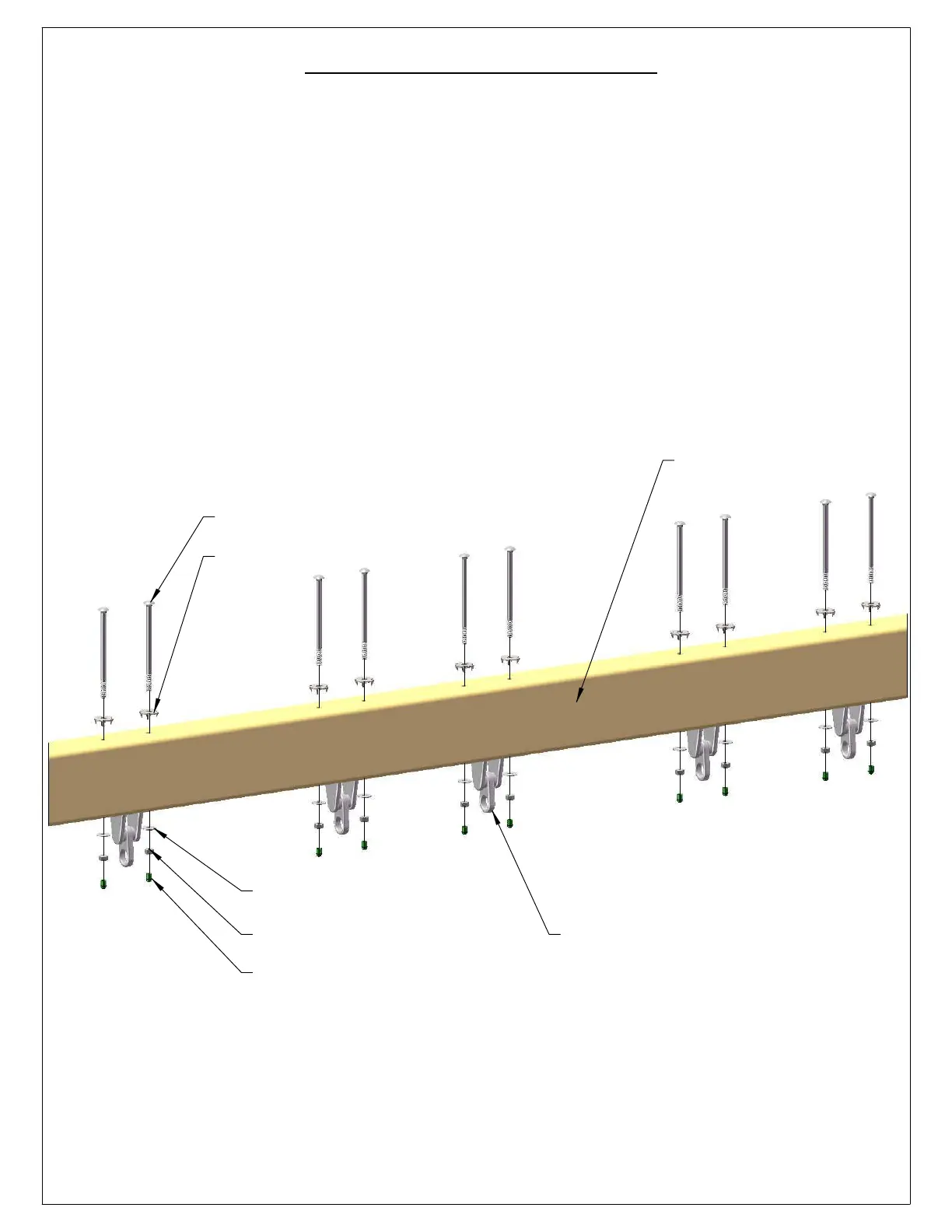

1: LINE UP THE HOLES OF THE IRON DUCTILES WITH THE HOLES IN THE SWING BEAM.
2: FASTEN THE IRON DUCTILES TO THE SWING BEAM USING 6-1/2" CARRIAGE BOLTS WITH TORQUE WASHERS ON
TOP OF THE SWING BEAM, AND 3/8" LOCK NUTS AND WASHERS ON THE BOTTOM. PLACE GREEN BOLT CAPS OVER
EXPOSED THREADS AFTER SECURING.
BOLT CAP
IRON DUCTILE
6-1/2" CARRIAGE BOLT
TORQUE WASHER
3/8" WASHER
3/8" LOCK NUT
4 X 6 X 108"
SWING BEAM
