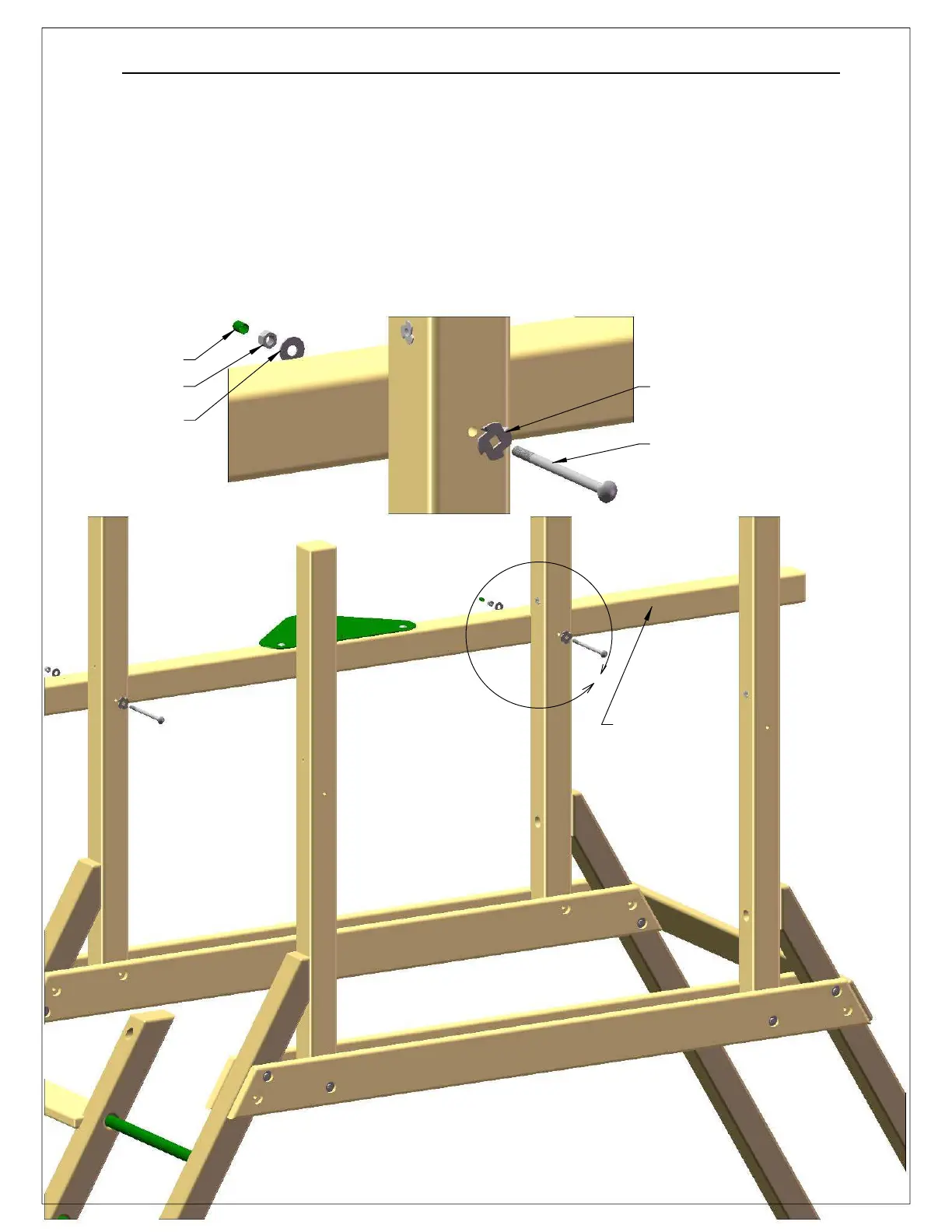

STEP 12: ATTACHING THE SWING BEAM SIDE RAIL
1: FIND TWO TORQUE WASHERS. PLACE A 6-1/2" CARRIAGE BOLT INSIDE THE TORQUE WASHER. PLACE THE
TORQUE WASHER/CARRIAGE BOLT ASSEMBLY INTO THE HOLES OF THE CORNER POST SO THAT THE HEAD OF THE
CARRIAGE BOLT IS INSIDE OF THE FORT.
2: TAKE THE 4 X 4 X 120" SWING BEAM SIDE RAIL WITH THE SWING BEAM PLATE AND LINE UP THE PILOT HOLES IN THE
CORNER POSTS WITH THE HOLES IN THE SWING BEAM SIDE RAIL. PUSH THE CARRIAGE BOLTS THROUGH THE HOLES
IN THE SWING BEAM SIDE RAIL.
3: FASTEN THE SWING BEAM SIDE RAIL TO THE FORT WITH 3/8" HEX NUTS AND 3/8" WASHERS. COVER ANY
EXPOSED THREADS WITH BOLT COVERS.
A
4 X 4 X 120"
SWING BEAM
SIDE RAIL
DETAIL A
3/8" LOCK NUT
3/8" WASHER
6-1/2" CARRIAGE BOLT
TORQUE WASHER
BOLT CAP
