A
4"
GREEN BRACKET
1-3/8" X 1-5/8" X 10-1/2"
TIC TAC TOE BOARD
GREEN BRACKET
1-5/8"

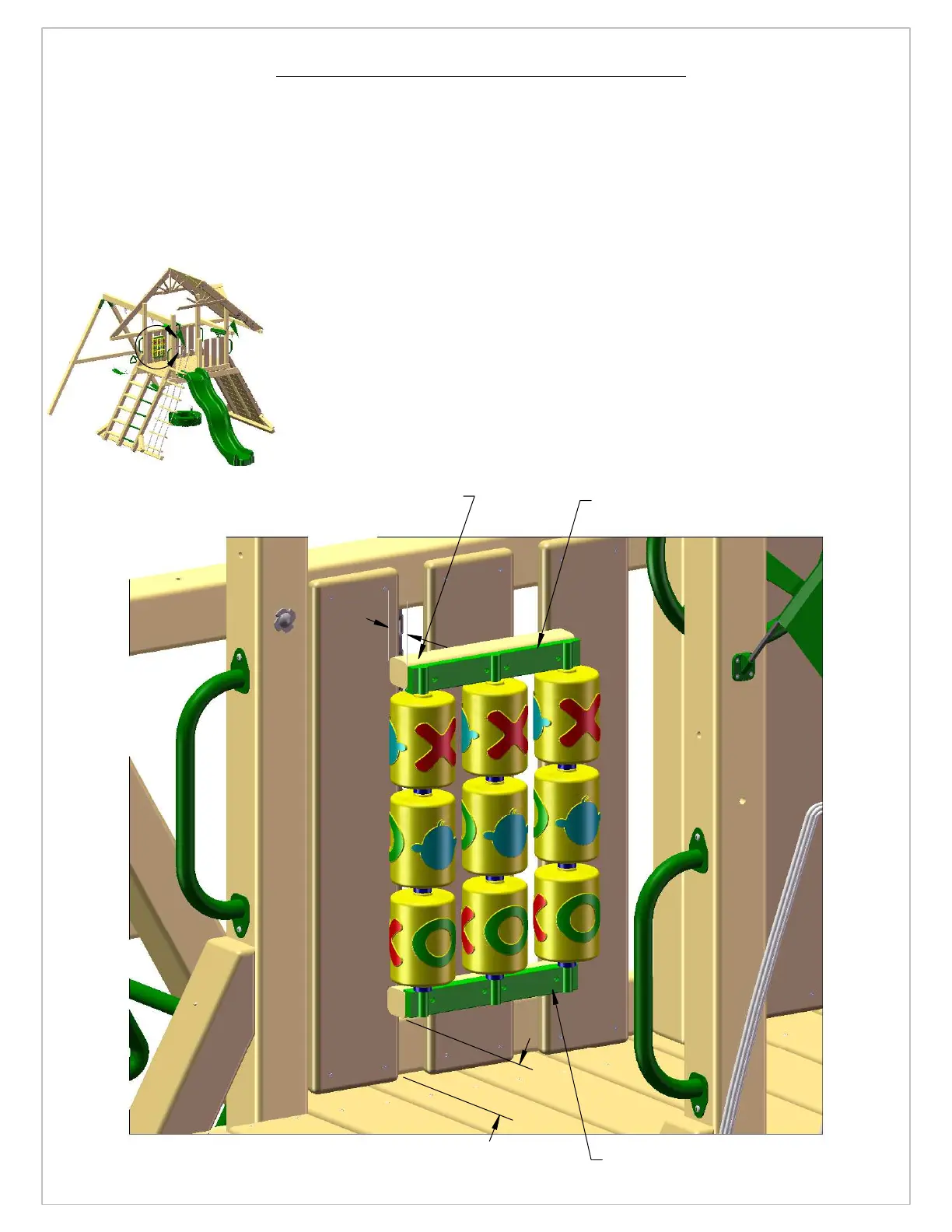

STEP 53: TIC TAC TOE PANEL
1: ASSEMBLE THE TIC TAC TOE PANEL ACCORDING TO THE INSTRUCTIONS IN THE BOX.
IGNORE
STEP 6 & 7 IN
THE INSTRUCTIONS.
2: ATTACH THE TWO 1-3/8" X 1-5/8" X 10-1/2"L TIC TAC TOE BOARDS TO THE GREEN PLASTIC BRACKETS WITH
THE 1"L PHILLIPS HEAD SCREWS PROVIDED IN THE TIC TAC TOE BOX.
IMPORTANT
: MAKE SURE THE TIC TAC
TOE BOARD IS MOUNTED TO THE GREEN BRACKET OBSERVING THE 1-5/8" DIMENSION SHOWN BELOW.
3: PLACE THE UNIT ON THE PANEL SLATS AS SHOWN.
4: MOUNT THE LOWER TIC TAC TOE BOARD 4" ABOVE THE DECK. ATTACH THE TIC TAC TOE BOARDS TO
THEPANEL SLATS FROM OUTSIDE THE FORT WITH #8 X 2" WOOD SCREWS.
