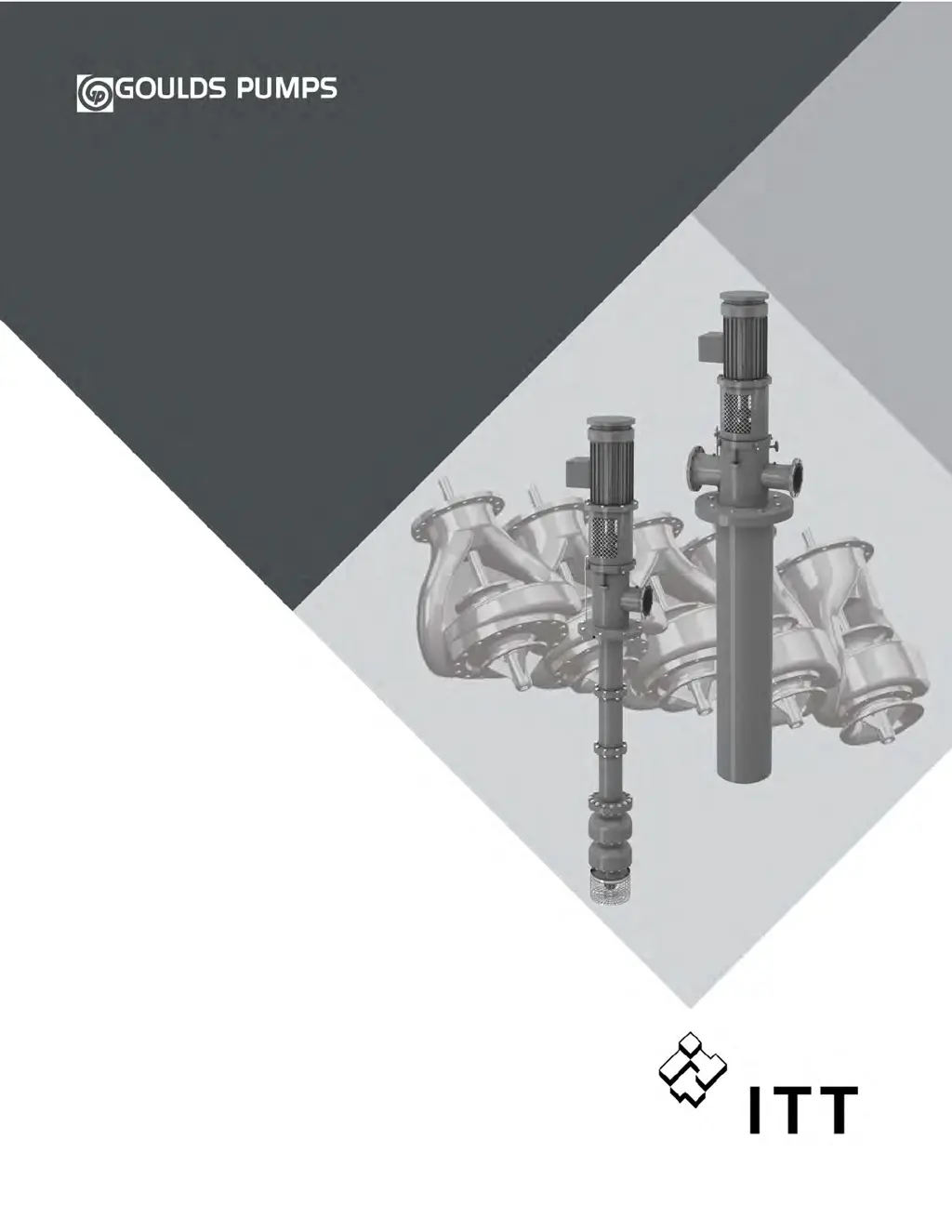

Installation, Operation, and
Maintenance Manual
Model VIT, VIC and VIDS

Table of Contents

Other manuals for Goulds Pumps VIT

Preview: Installation, Operation And Maintenance
Installation, Operation And Maintenance82 pages
Preview: Installation, Operation And Maintenance Instructions
Installation, Operation And Maintenance Instructions36 pages

Questions and Answers

  • R
    Rachel CummingsSep 14, 2025
    Why is my Goulds Pumps Water Pump not producing the rated flow or head?
    • O
      onewtonSep 14, 2025
      If your Goulds Pumps Water Pump isn't producing the rated flow or head, several factors could be responsible. Ensure the driver is wired correctly and receiving full voltage, as the impellers might not be rotating fast enough. Also, verify the impellers are spinning counterclockwise when viewed from above and check the engagement of the motor coupling. The total pump head might be too high, so check the pipe friction losses and consider using larger discharge piping. Inspect the impellers and bowls for any obstructions in the liquid passages. Check for and remove any obstructions in the pump suction inlet, as cavitation could be occurring. Finally, the impellers might be too high, requiring a reset of the impeller adjustment.
  • M
    Michael WilsonAug 25, 2025
    What to do if my Goulds Pumps VIT Water Pump is not delivering liquid?
    • C
      Chad Summers DDSAug 25, 2025
      If your Goulds Pumps Water Pump isn't delivering liquid, consider the following: * The bowl assembly might not be submerged enough; adjust the liquid level in the sump accordingly. * The suction strainer could be clogged; remove any obstructions. * There might be an obstruction in the liquid passage; pull the pump and inspect the impeller and bowl. * The discharge head might not be properly vented; open the vent.
  • J
    Jennifer ProctorAug 25, 2025
    Why is my Goulds Pumps Water Pump noisy?
    • A
      Angela RosalesAug 26, 2025
      A noisy Goulds Pumps Water Pump can be attributed to several factors: * The pump may be cavitating; increase the liquid level in the sump. * The shaft could be bent; straighten it as necessary. * Rotating parts might be binding, loose, or broken; replace parts as needed. * The bearings could be worn; replace them. * The discharge head might not be properly vented; open the vent.
  • C
    chloe38Aug 26, 2025
    How to fix excessive leakage from the stuffing box of Goulds Pumps Water Pump?
    • J
      James HarveyAug 27, 2025
      Excessive leakage from the stuffing box in your Goulds Pumps Water Pump may be due to: * Defective packing; replace any worn or damaged packing. * The wrong kind of packing being used; consult an ITT representative.
  • N
    Nicole HoffmanSep 14, 2025
    Why does my Goulds Pumps Water Pump start and then stop pumping?
    • A
      Allen KingSep 15, 2025
      If your Goulds Pumps Water Pump starts and then stops pumping, it could be due to several reasons. The pump may be requiring excessive power, or it might be pumping a liquid with a higher viscosity or different specific gravity than it was designed to handle, so test the liquid for these properties. Critical parts may have experienced mechanical failure, so check the bearings, wear rings, and impellers for damage. Ensure the impellers are not rotating too fast by checking the frequency on the motor. Also, realign the pump and driver if they are misaligned, and open the vent if the discharge head is not properly vented.
  • L
    Leslie LopezSep 23, 2025
    Why does the seal squeal during operation in my Goulds Pumps Water Pump?
    • J
      Jonathan SnowSep 23, 2025
      If the seal squeals during operation in your Goulds Pumps Water Pump, there might be an inadequate amount of liquid at the seal faces. A bypass flush line is necessary, or if one is already in use, enlarge it to produce more flow.
  • Y
    yibarraSep 7, 2025
    Why does my Goulds Pumps Water Pump take too much power?
    • A
      Amy RamseySep 7, 2025
      If your Goulds Pumps Water Pump takes too much power, inspect the impeller for damage and replace it if necessary. Check for any foreign objects lodged between the impeller and bowl and remove them. Test the liquid to ensure the specific gravity isn't higher than what the pump was designed for. Also, check for high viscosity or partial freezing of the pumpage, as these can cause drag on the impeller. Replace any defective bearings and check the shaft or shaft sleeve for scoring. If the packing is too tight, release the gland pressure and retighten it, ensuring some leakage. If there is no leakage, inspect the packing, sleeve, or shaft.
  • B
    Benjamin MerrittSep 7, 2025
    How to troubleshoot a Goulds Pumps VIT that does not start?
    • K
      Kimberly SimpsonSep 8, 2025
      If your Goulds Pumps Water Pump isn't starting, check the electrical circuit to ensure it's complete and correct any open circuits. Reset the impeller adjustment if it's improperly adjusted, causing the impeller to be on the bottom. Verify the driver wiring is correct and receiving full voltage; consult the factory if needed. If these steps don't resolve the issue, the motor may be defective.
  • J
    Justin BlackSep 23, 2025
    Why does the seal leak on my Goulds Pumps Water Pump when nothing appears to be wrong?
    • T
      Thomas MckenzieSep 23, 2025
      If the seal leaks on your Goulds Pumps Water Pump when nothing appears to be wrong, the seal faces may not be flat, so relap or replace them.
  • G
    Gabriel HillAug 31, 2025
    Why is the stuffing box overheating on my Goulds Pumps VIT Water Pump?
    • K
      Katie JonesAug 31, 2025
      If the stuffing box is overheating on your Goulds Pumps Water Pump, consider: * The packing being too tight; release the gland pressure and retighten, ensuring leakage. If there's no leakage, check the packing, sleeve, or shaft. * The packing not being lubricated; release the gland pressure, replace any burned or damaged packing, and regrease as necessary. * The wrong grade of packing being used; consult an ITT representative. * The stuffing box being improperly packed; repack the stuffing box.

Summary

Introduction and Safety

Safety

Covers warnings, cautions, and important safety information for handling the product.

Safety Terminology and Symbols

Explains hazard levels, terminology, and symbols used in safety messages.

User Safety

Outlines general safety rules and required safety equipment for users.

Ex-Approved Products

ATEX Considerations and Intended Use

Transportation and Storage

Pump or Bowl Assembly Handling, Rigging and Lifting

Provides warnings and precautions for safe handling, rigging, and lifting of pump assemblies.

Lifting Methods

Details safe lifting practices and methods for pump and motor components.

Product Description

Installation

Pre-installation

Concrete Foundation Requirements

Installing the Pump on a Structural-Steel Foundation

Piping Checklists

Pump Installation

Installing a Bare Shaft Pump

Details the installation steps for a bare shaft pump.

Installing a Disassembled Pump

Comprehensive guide for installing disassembled pump components.

Installing the Bowl Assembly

Step-by-step instructions for installing the pump's bowl assembly.

Column Installation

Procedures for installing the pump column with open or enclosed lineshafts.

Installing the Discharge Head

Instructions for correctly installing the pump's discharge head.

Shaft Sealing Installation and Alignment Summary

Covers shaft sealing options and alignment procedures.

Stuffing Box Installation

Detailed steps for installing different types of stuffing boxes.

Mechanical Seal Options

Describes available mechanical seal options and installation instructions.

Installing a Solid-Shaft Driver

Procedure for installing solid-shaft drivers, including coupling and alignment.

Installing a Hollow-Shaft Driver

Guide for installing hollow-shaft drivers and completing their setup.

Commissioning, Startup, Operation, and Shutdown

Preparation for Startup

Essential safety precautions and checks before starting the pump.

Prepare for Startup

Detailed steps to confirm all procedures are completed before initial startup.

Pump Priming

Explains the importance of proper pump venting and submergence.

Start the Pump

Procedure for safely starting the pump and monitoring its operation.

Pump Operation Precautions

Guidelines for operating the pump at rated conditions and avoiding damage.

Mechanical Seal Leaks

Addresses occasional and continuous leaks from mechanical seals.

Stuffing Box Leaks

Shut Down the Pump

Maintenance

Maintenance Schedule

Adjust and Replace the Packing

Adjust the Packing When Leaking is Excessive

Adjust the Packing When There is Overheating or No Leaks

Disassembly

Disassembly Precautions

Remove the Bowl and Impeller Wear Rings

Remove the Bowl, Suction Bell, and Lineshaft Bearings

Disassemble the Head and Column

Bowl Disassembly

Disassemble the Taper Collet Impeller

Disassemble the Keyed Impeller

Pre-assembly Inspections

Replacement Guidelines

Reassembly

Installing the Turbine Bowl and Impeller Wear Ring

Installing the Bowl, Suction Bell, and Lineshaft Bearings

Installing the Taper Collet Bowl Assembly

Installing the Keyed Bowl Assembly

Troubleshooting

Operation Troubleshooting

Lists common symptoms, causes, and remedies for pump operation issues.

Parts Listings and Cross-Sectionals

Annex I

Example of VIC-L Barrel Installation

Annex II

CE Declaration of Conformity

Local ITT Contacts
