Step 4
Thread the suction pipe into the pump’s inlet t-
ting and tighten until snug.
Step 5
Before installing the pump on the tank, clean the
tank interior of all dirt and foreign material
Step 6
Fully extend the telescoping portion of the suction
pipe. Carefully insert suction pipe into the tank
opening, position pump and tighten securely.
NOTE: Be sure tank is properly vented
(Vent cap sold separately) (Figure 3).
NOTE: For EZ-8 with Spin Collar, securely
tighten spin collar.

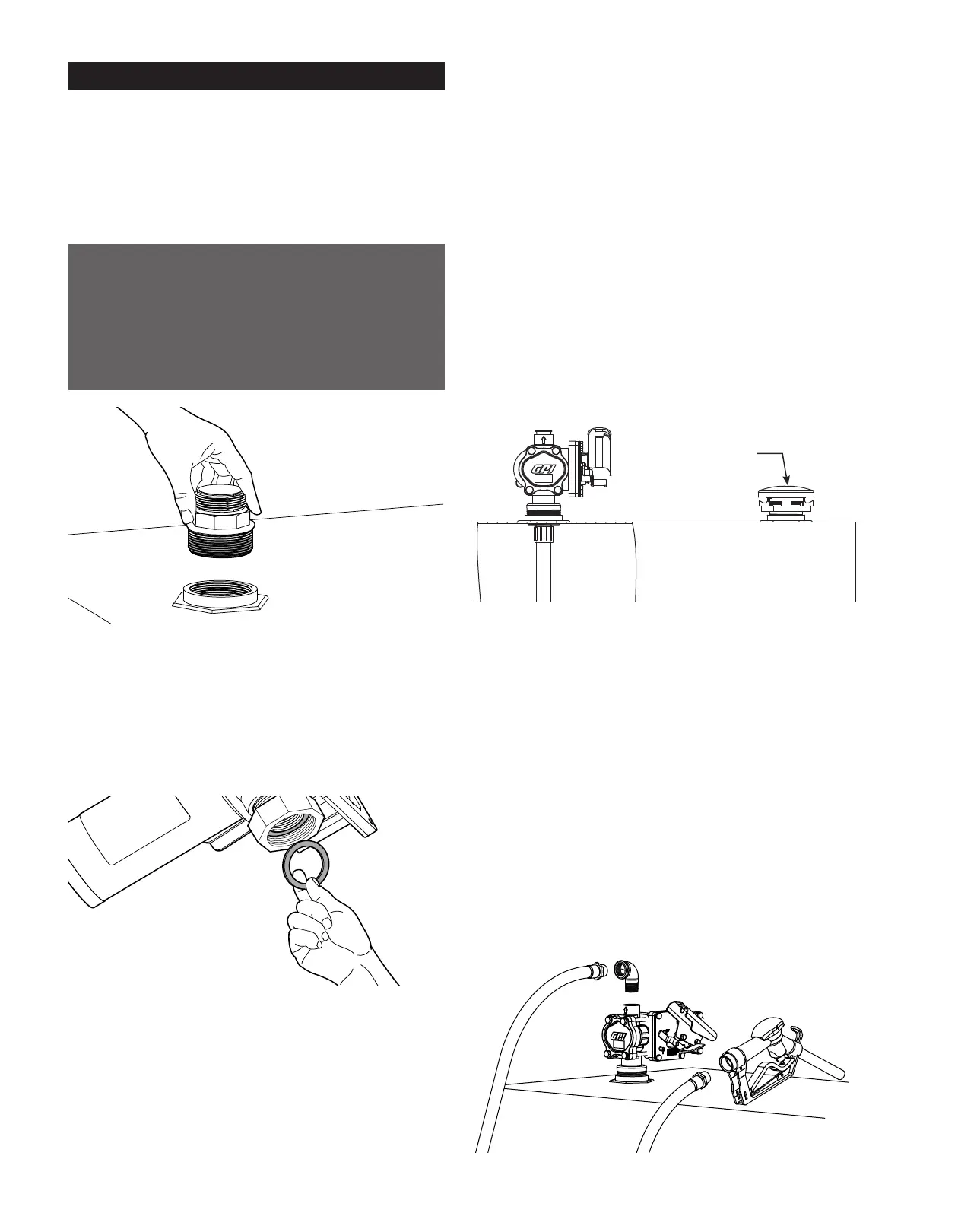

Figure 3
INSTALL ELBOW, HOSE & NOZZLE
Step 1
Seal the threaded ends of the 90° street elbow (E)
and both ends of the discharge hose (G) with 3 to
4 turns of thread tape.
Step 2
Using pliers, remove the plastic plug from outlet
port on top of pump. Thread the 90° street elbow
into outlet port and tighten securely.
Step 3
Thread one end of hose into the 90° street elbow
and tighten securely. Thread opposite end of hose
into nozzle (F) and tighten securely (Figure 4).
Figure 4
INSTALLATION
INSTALL PUMP ON TANK
Step 1
NOTE: For EZ-8 with Spin Collar, wrap both
threaded ends of the tank adapter (B) 3 or 4
times with thread tape, and then insert tank
adapter into tank (Figure 1).
NOTE: Aluminum Tank Installation -
To prevent thread galling of aluminum
ttings, always prepare the threads for
assembly using an anti-seize compound
such as Loctite® 567TM, Hernon®
Dripstop® 940, or equivalent.
Figure 1
Step 2
Using pliers, remove the plastic plug from inlet
port on bottom of pump. Note: For EZ-8 models
with Spin Collar, place the spin collar gasket
(C) into the inlet tting on bottom of pump
(see Figure 2).
Figure 2
Step 3
Wrap the threaded end of the telescoping suction
pipe (D) with 3 to 4 turns of thread tape.
Note: If your tank is 15” - 25” deep, do not use
the included suction pipe extension; if your
tank is 25” - 40” deep, attached the suction
pipe extension.
Vent Cap
(Sold Separately)
