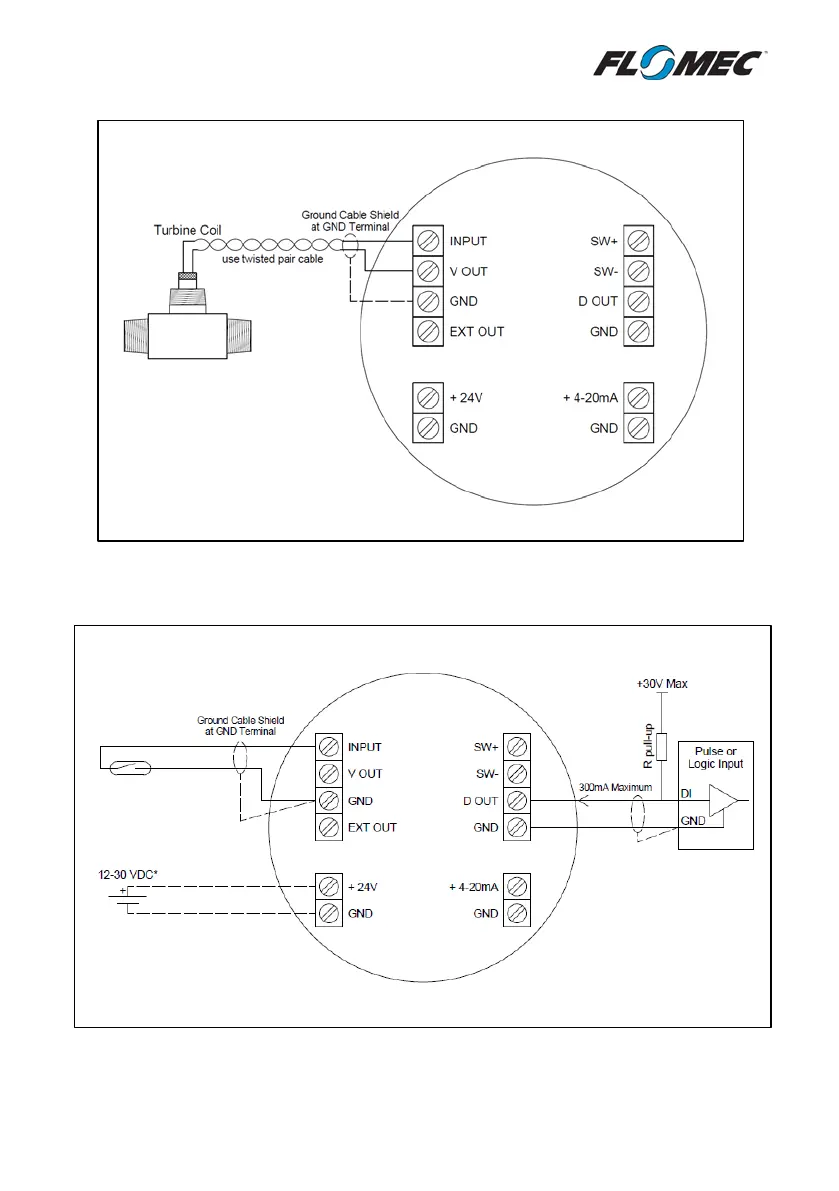

4.2.5 VR Coil Input (Turbine Meters)
4.3 Output Connections
4.3.1 Passive NPN Digital Output with Unpowered Sensor
Notes: Shown here with Reed Switch input, Coil and Voltage Pulse inputs also suitable for this
configuration. *External 12-30V DC power supply to instrument is optional.
