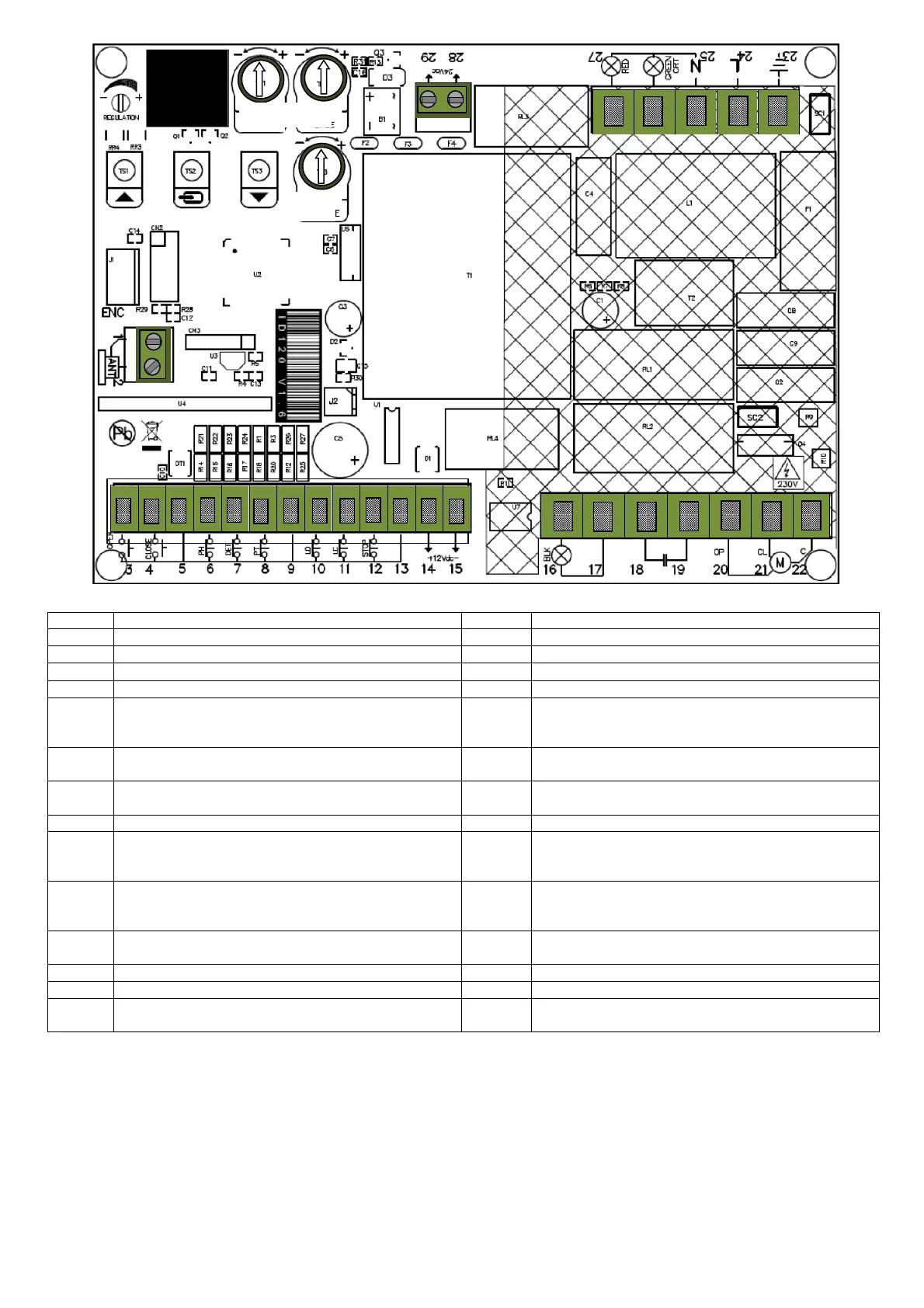

GR GR6EUO - Page 7

1
Antenna’s shield
18 – 19
Motor capacitor
2
Antenna
20
Motor output - OPEN
3
Input OPEN / START (NO) – see menu OL
21
Motor output - CLOSE
4
Input CLOSE / PEDESTRIAN (NO) – see menu OL
22
Motor output - COMMON
5
Common
23
Earth connection
6
Photocell input (NC - NO) see advanced menu PC
During the pause: Reload the pause time
During closing: Reverses the motion of the motors
24 – 25
AC Power connection 230V
7
DETECT quick closing input (NO)
26 – 27
Courtesy light (25-26) / red-green traffic light
control (see advanced menu CR)
8
PHOTOSTOP / PROTECTION input (NC / NO see
advanced menu Pt )
28 - 29
AC power out 24V– 250mA
9
Common
TR1
Slowdown speed adjustment
10
Limit switch Open input (NO/NC, see advanced
menu L5) If both limit switches open they are
disabled.
TR2
Motor power adjustment
11
Limit switch Close input (NO/NC, see advanced
menu L5) If both limit switches open they are
disabled.
TR3
Slowdown time adjustment
12
Stop input (NO/NC, see advanced menu 5P) In
every operation it blocks the gate.
TS1- TS3
Buttons UP/DOWN
13
Common
TS2
ENTER button
14 – 15
Output positive / negative 12Vdc – 250mA
DSP
Display
16 – 17
Blinker with two working modes (see advanced
menu BL)
F1
230Vac outputs fuse, 5A Fast
88
TR1
SD SPEED
TR2
FORCE
TR3
SD TIME
F1
