7BRAVADO-X Internet Radio and Network Media Player

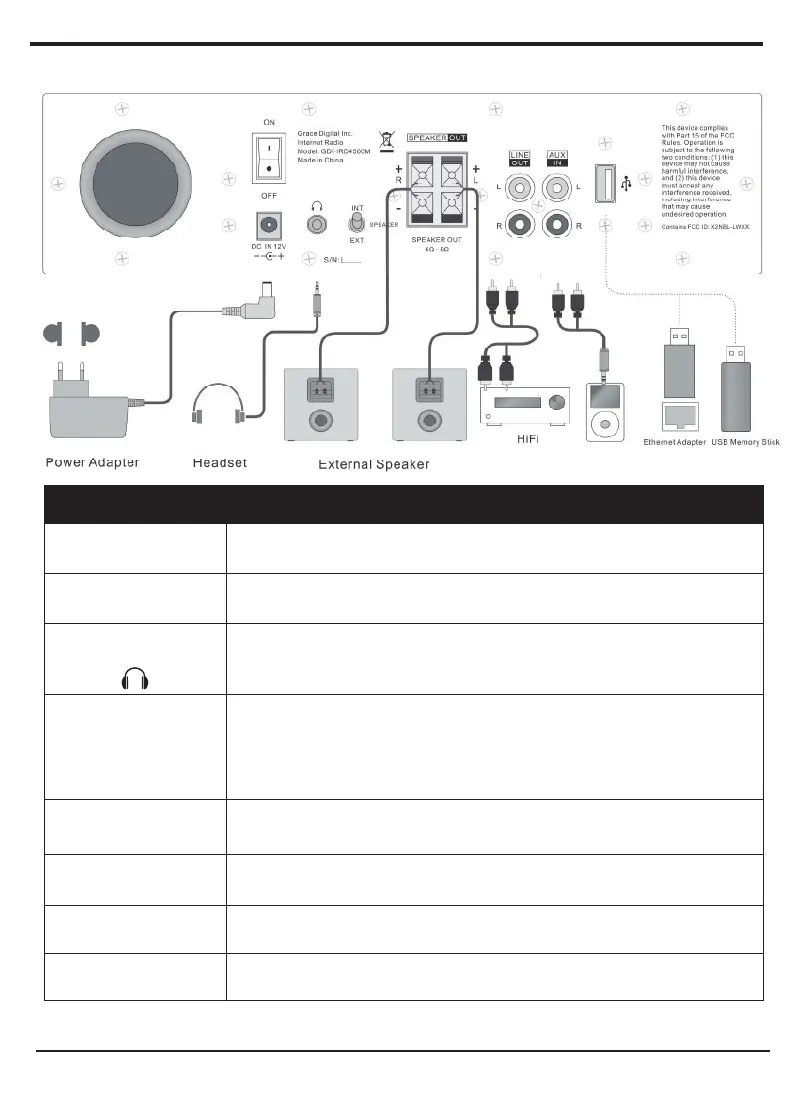

JACKS DESCRIPTION
ON / OFF
SWITCH
Master ON / OFF control for power. IMPORTANT: Switch MUIST be ON for the
power / standby switch on the front panel to operate the unit.
DC 12V Connection To supply power to the unit, connect the power adaoter to the DC connection
and a wall electrical power outlet
Headphone
Jack
The headphone jack is a stereo headphone jack. Plug stereo headphones in
for stereo playback of your music or to plug in and connect your internet radio
into a home stereo (cables not included)
INT - EXT SPEAKER
Selection Switch
The speaker switch is used to select between EITHER internal (INT) speaker or
external (EXT) speaker. Select ‘Speaker On’ if internal speaker is desired.
IMPORTANT: IF audio is not heard check that SPEAKER INT has been selected
To listen to internatl speakers INT must be selected & Master Power switch ON
To list to external speakers EXT must be selected & Mater Power switch ON
RCA (L R) Jack
LINE OUT
Connect RCA cables to optional external speakers (not included). 16 watts at 8
ohms or 24 watts for 6 ohm speakers. NOTE: select EXT on the SPEAKER switch
SPEAKER OUT (L R)
Wire Connections
Connect optional external speakers to the SPEAKER OUT 6 Ω - 8Ω wire
connections
RCA (L R) Jack
AUX IN
Connect alternative audio devices to the RCA AUX IN jacks and play audio over
the system
USB Port Play audio from a USB ash drive or connect an optional USB ethernet adapter
for use as a LAN internet connection.. Refer to APPENDIX for details
