Crib Assembly Steps
Figure 1
Figure 2
Step 1
Step 2
1
1
1
1
5
4
C
A1
B1

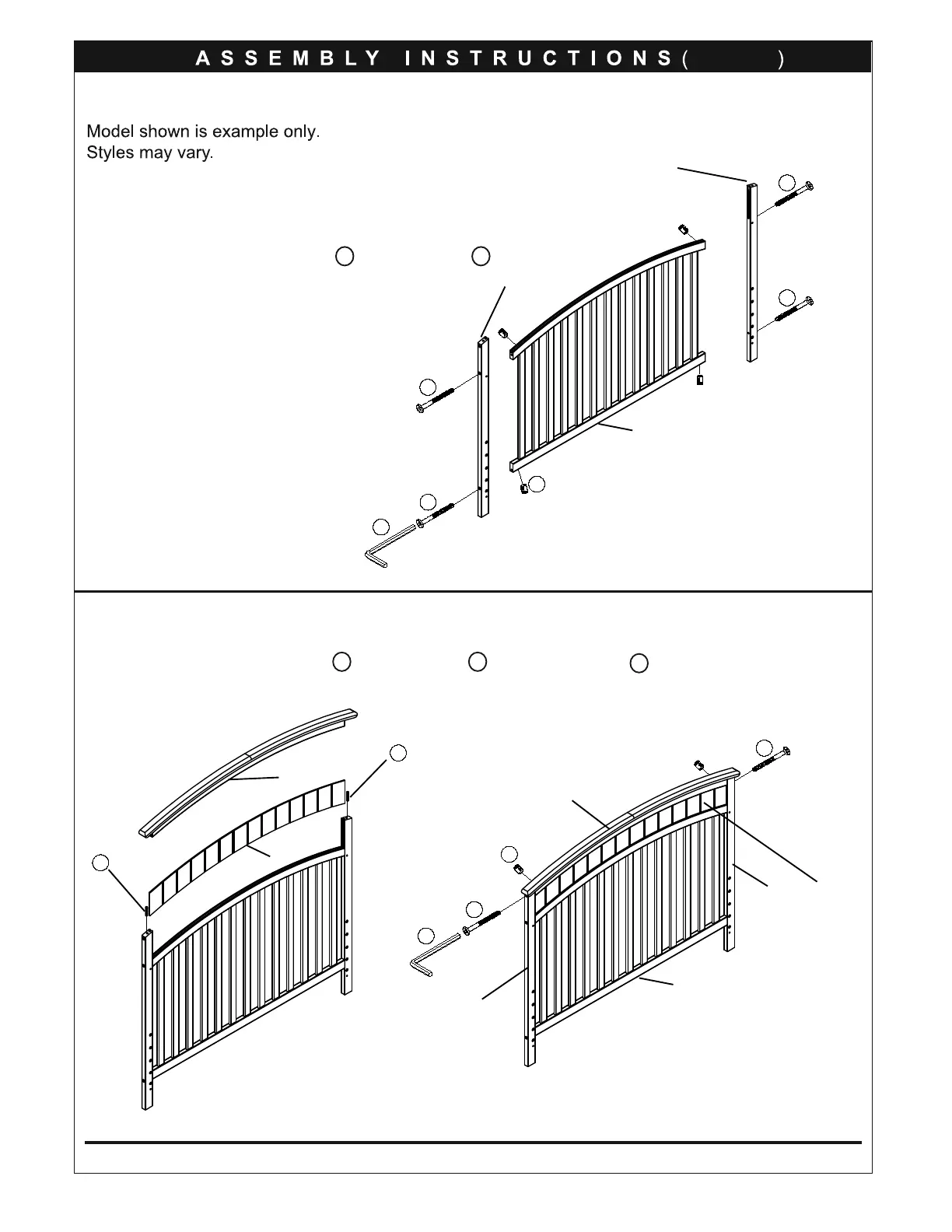

Attach left post(A1) and right post(B1)to the back fixed side(C)
using M6*80 Allen head bolts( 1 )&barrel nuts( 4 ).
See figure 1.
Attach mid panel(E) and top cap(F)to the back fixed side(C)
using M6*80 Allen head bolts( 1 )&barrel nuts( 4 )& wood dowels( 6 ).
See figure 2 and 2A.
1
1
4
C
5
E
F
1
5
A1
B1
Figure 2A
6
6
E
F
