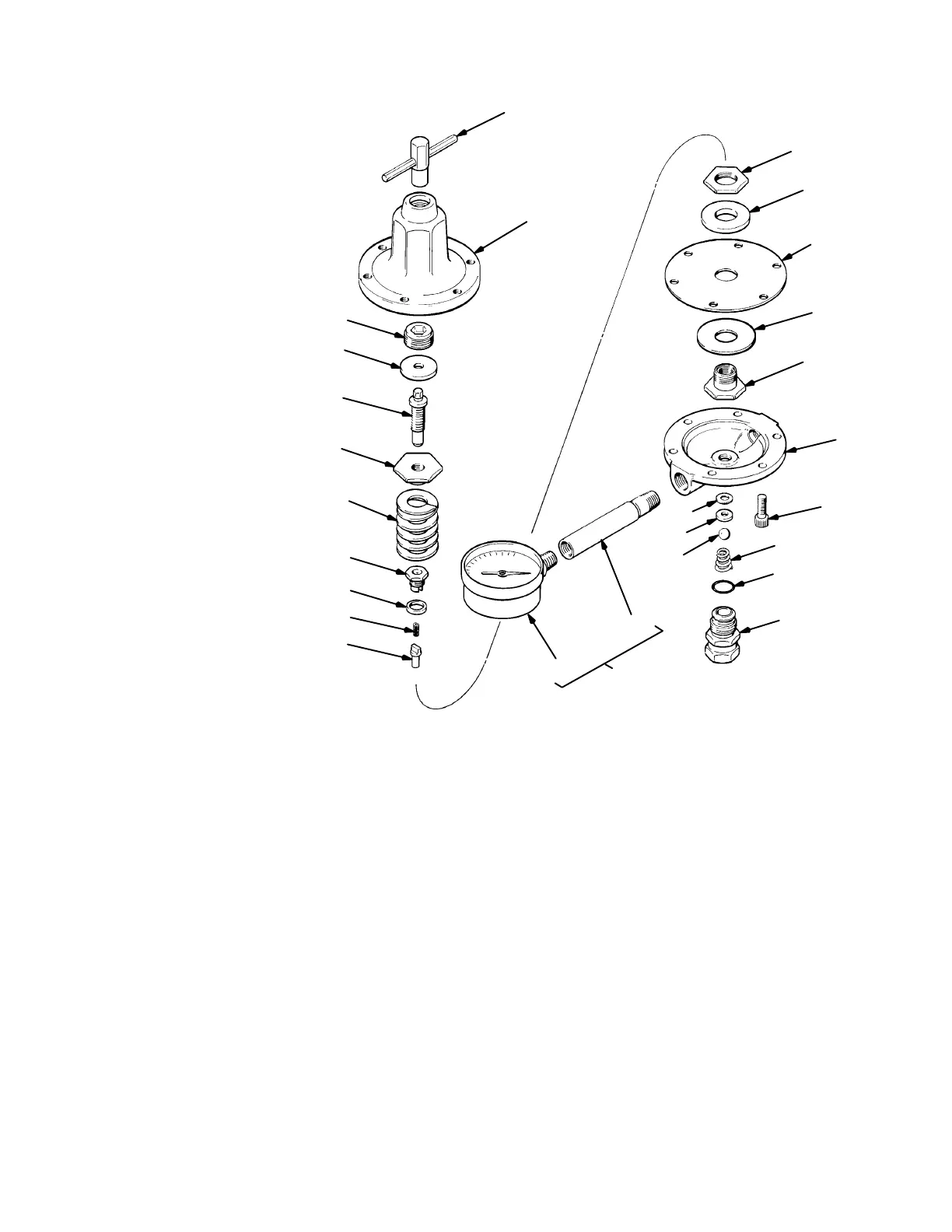

Graco 217314 - Parts

16 307212
Parts
24
7
19
14
12
11
5
10
*21
*3
*9
27
28
23
4*

*15
*16
*20
40*
1
6
18
26*
22*
17
13
Model 214895, Series H
Without gauge. Includes items 1–26, 40
Model 214706, Series H
With gauge. Includes items 1–40
Model 214706 only
Ref
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
1 100644 SCREW, soc hd cap;
0.25”–20 x 0.75” 6
3 111736* SPRING, compression 1
4 104319* O-RING, PTFE 1
5 105291 SPRING, compression 1
6 187880 HOUSING; stainless steel 1
7 176135 CAP, regulator 1
9 187851* STEM, valve 1
10 188004 SCREW, retaining 1
11 171855 NUT, adjustment 1
12 176691 SCREW, adjustment 1
13 171858 NUT, jam; special 1
14 176692 WASHER, flat 1
15 171860* GASKET, seat 1
16 112366* SEAT, valve; tungsten carbide 1
15F236 SEAT, valve; tungsten carbide 1
17 171862 WASHER, diaphragm 1
18 187879 HOUSING, stem 1
19 176136 SCREW, adjustment 1
20 112365* BALL; tungsten carbide 1
21 171867* GASKET 1
22 171868* DIAPHRAGM; PTFE with nylon
fabric/Buna-N base 1
23 235209 UNION, swivel; 3/8 npsm 1
24 215393 KEY, regulator 1
26 172132* GASKET; cellulose fibre 1
27 187874 GAUGE, pressure; stainless steel;
100 psi (0.7 MPa, 7 bar)
(214706 only) 1
28 187877 TUBE, riser
(214706 only) 1
40 111858* SPRING, compression 1
* Included in Repair Kit 222651.
 Included in Repair Kit 249147 (for solvent or thin material).
