Graco 224348 - 10:1 Ratio President Pump Parts

18 308118
Parts
Model 224348, Series C
10:1 Ratio Presidentr Pump
Model 256713, Series A
10:1 Ratio Presidentr Pump (1.5 in. Female Inlet)
Includes items 101--112
REF PART
NO. NO. DESCRIPTION QTY
101 224349
} DISPLACEMENT PUMP ASSY
See pages 20 and 21 for parts 1
256712* DISPLACEMENT PUMP ASSY, 1.5 in.
female inlet
See pages 20 and 21 for parts 1
102 166237 ROD, tie; stainless steel;
3.5” (89 mm) shoulder--to --shoulder 3
105† 156082 SEAL, o--ring; nitrile rubber 1
106 207352 AIR MOTOR
See manual 306982 for parts 1
107 158256 ADAPTER, swivel; 1/2 npt(m) x
3/8 npsm(f) 1
109† 101946 PIN, cotter; stainless steel;
0.12” (3.2 mm) x 1.5” (3.8 mm) 1
112 102021 NUT, lock; 3/8--16; stainless steel 3
{ Recommended “tool box” spare parts. Keep on hand to re-
duce downtime.
} For 224348 assembly
* For 256713 assembly

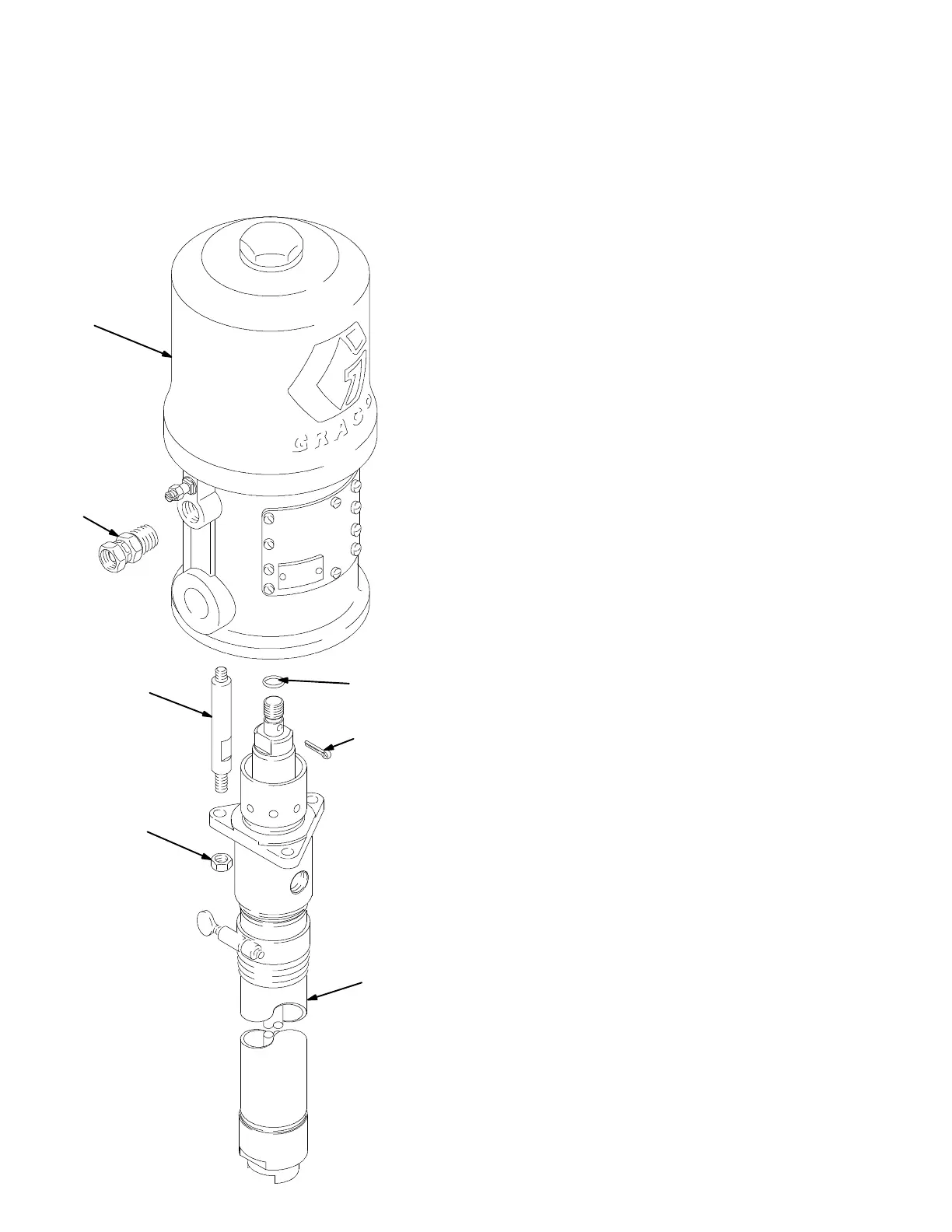

109†
106
101
112
102
105†
107
0199B
224348 shown
