Sprayer Parts List
Model 232655, Series A
Ref.
No. Part No. Description Qty.
Ref.
No. Part No. Description Qty.
3 192027 SLEEVE, cart 2
4{ 237458 MOTOR KIT
Includes items 4a to 4f
1
4a 100069 . BALL, sst, 1/4” dia. 1
4b 111616 . TERMINAL, flat, 1/4” (f), 18 awg 2
4c 107503 . TERMINAL, 3/16” (m), 16 awg 2
4dY 187784 . LABEL, DANGER, French 1
4eY 187791 . LABEL, DANGER, English 1
4fY 187975 . LABEL, WARNING, electric shock 1
5 100643 SCREW, socket head, 1/4–20 x 1” 3
6 105510 LOCKWASHER, 1/4” 3
10 100721 PLUG, 1/4–18 npt(f) 1
11 224965 DRIVE HOUSING KIT 1
Includes item 11a, 11b
11a 100069 . BALL, stainless steel, 1/4” dia. 1
11b 111726 . PLUG 1
12 224803 CRANKSHAFT 1
Includes items 12a, 12b
12a 180131 . BEARING, thrust 1
12b 107434 . BEARING 1
13 187789 COVER, front 1
14Y 177762 LABEL, WARNING 1
15 218359 CONNECTING ROD 1
16 218364 GEAR REDUCER 1
17 176818 PIN, headless, 3/8” dia. x 1” 1
18 176817 SPRING, retaining 1
19 103345 SCREW, socket head, 5
1/4–20 x 1–1/4”
20 235699 PUMP KIT 1
See manual 308190 for parts
21 111706 CAPSCREW, 7/16–14 x 1–3/4” 2
23 109032 SCREW, 10–32 x 0.25” 4
24 224554 HANDLE, sprayer 1
25 105521 PLUG, tubing 2
26 106062 WHEEL, sprayer 2
28 162453 NIPPLE, hex, 1/4 npsm x 2
1/4 npt, 1–3/16”
29 235009 PRESSURE TRANSDUCER 1
30 186245 CLIP, spring 1
31 108850 SCREW, filh, 8–32 x 1–1/4” 1
32 192169 SUCTION TUBE 1
33 186549 DRAIN TUBE 1
34 111705 SCREW, filh, 8–32 x 2–1/2” 3
35 194671 LABEL, identification 1
36 108982 CONNECTOR, tube 1
37 101242 RING, retaining, wheel 2
39 183770 STRAINER 1
42 235014 DRAIN VALVE KIT 1
Includes items 42a to 42e
42a 111699 . GASKET, valve seat 1
42b 187615 . SEAT, drain valve 1
42c 224968 . STEM, drain valve 1
42dH 168110 . O–RING, stem 1
42e 110110 . SEALANT, pipe (not shown) 1
43 224807 BASE, valve 1
44 111600 PIN, grooved, 3/32 x 1” 1
45 187625 HANDLE, drain valve 1
46 110997 SCREW, washer/hex hd, 5/16” 2
47 235707 MOTOR START BOARD 1
includes items 47a to 47c
48Y 186620 LABEL, ground terminal 1
49 110037 SCREW, mach, pnhd, 10–24 x 5/8” 1
50 235010 POWER CORD SET 1
51 111617 STRAIN RELIEF BUSHING, 1
3/8–18 npt
52 105679 SWITCH, ON/OFF 1
53 235035 GROUND HARNESS 1
54 105658 LOCKING RING 1
55 105659 BOOT, switch 1
56 111703 SCREW, filh, 10–24 x 3” 4
58 100035 SCREW, pan hd, 8–32 x 5/16” 2
59 187795 JUNCTION BOX 1
62 110243 RING, retaining 2
63 111704 SCREW, filh, 10–24 x 1–5/8” 2
64 239515 PRESSURE CONTROL KIT 1
65 104811 HUBCAP 4
66 238669 FRAME, cart 1
67 238350 CONTRACTOR FTx GUN 1
See manual 308645 for parts
68 206994 TSL, 8 oz. (not shown) 1
72 111590 BUTTON, spring 2
73 183350 WASHER 1
74 238361 HOSE, grounded, nylon; 1/4” ID; 1
cpld 1/4 npsm(f); 50 ft (15 m);’
spring guards both ends
85 239425 FILTER, fluid 1
See Manual 308249 for parts
88 181102 CLIP, spring 1
89 187963 GASKET 1
Y
Extra warning labels available free of charge.
{
Motor Brush and Spring Replacement Kit,
236967 is available. Purchase separately.
H
Replace Ref. No. 42d with 112319 if using severe solvents
such as lacquer thinner and acetone.
04720
52
47
54
55
53
50
51
49

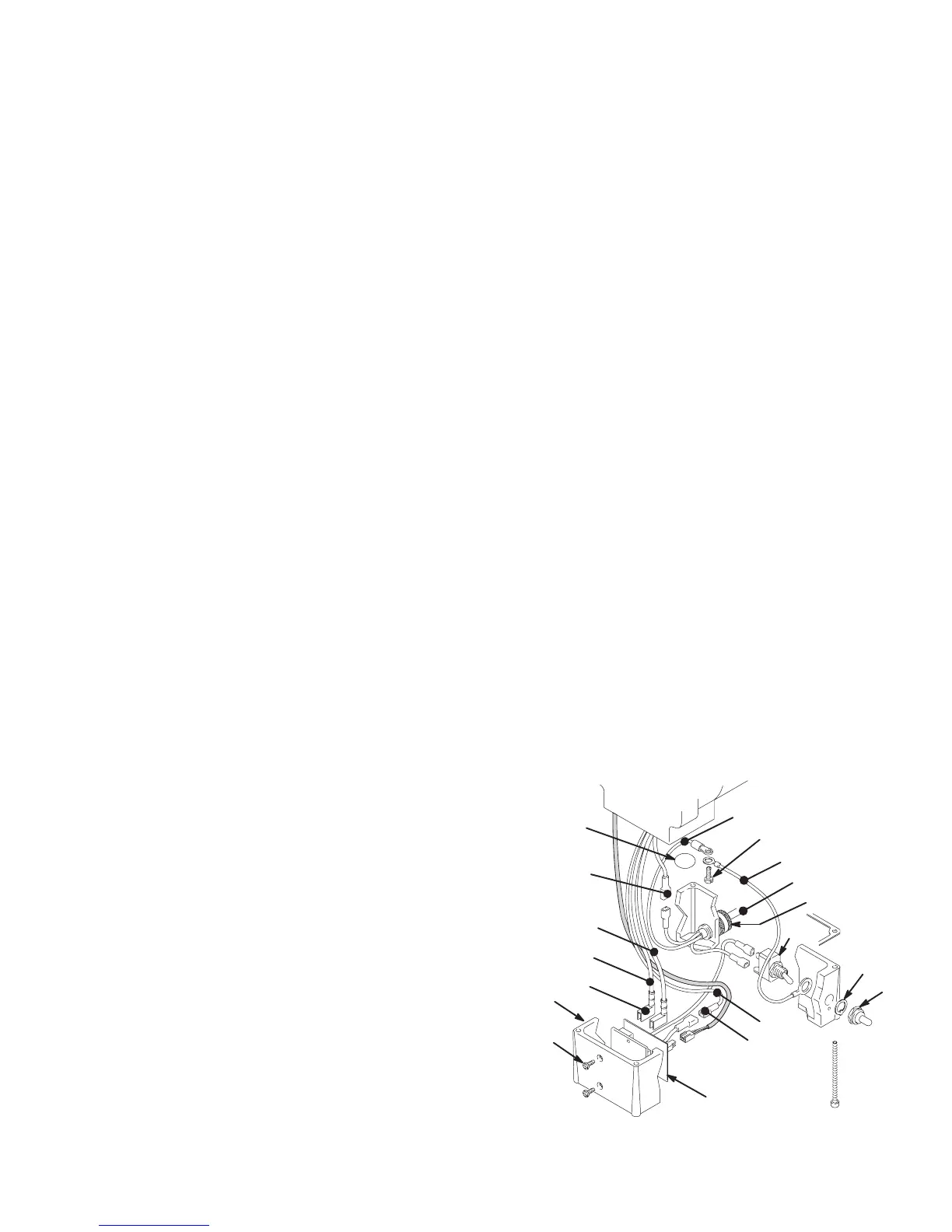

GREEN
MOTOR
BLACK/
WHITE
BLACK
59
58
RED
4b
GREEN/
YELLOW
4c
4c
48
