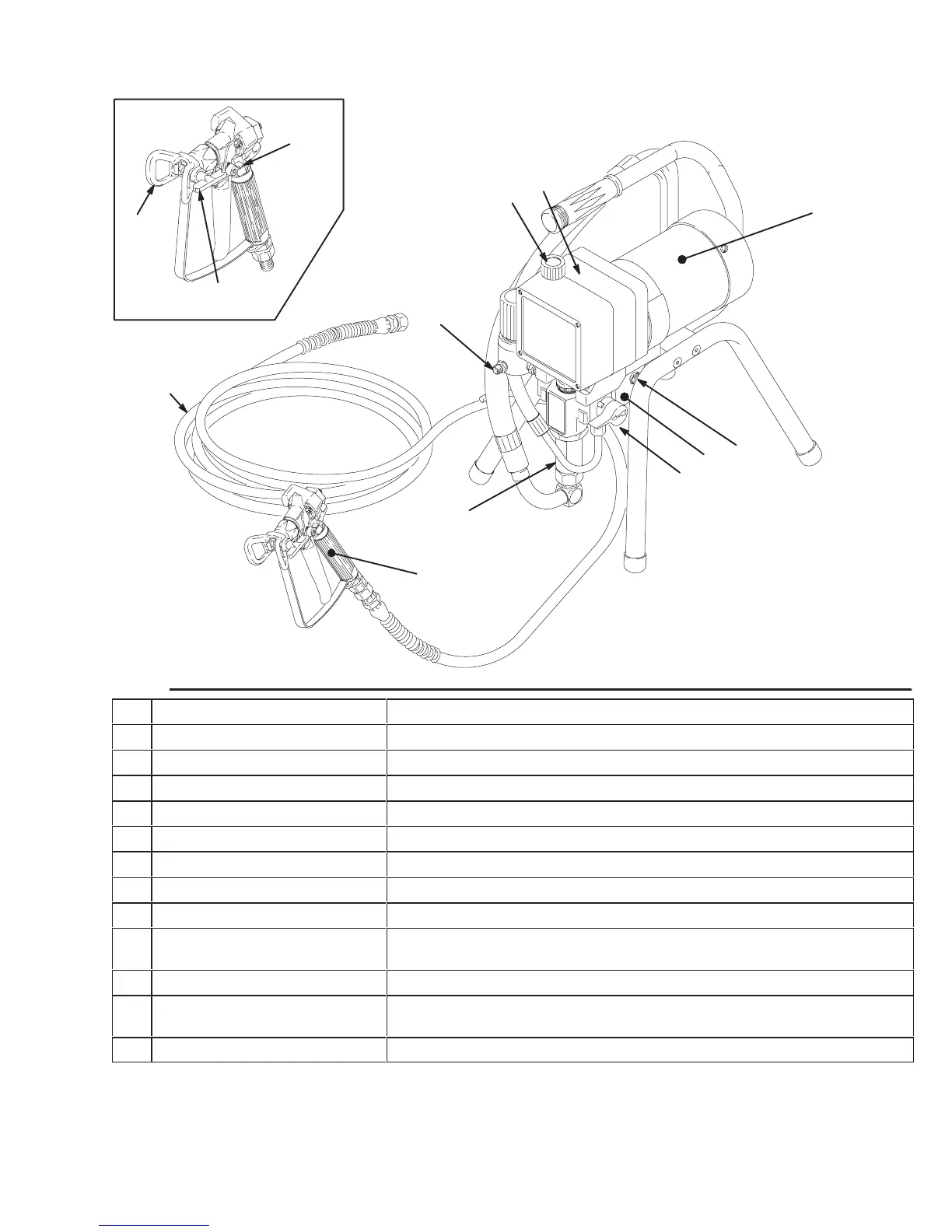

Component Function and Identification
C
Fig. 1
G
E
F
D
A
K
M
B
H
N
J
L
05963
Model 231580 shown
A Motor DC motor, 120 Vac, 15A, 1 phase
B Drive Assembly Transfers power from DC motor to the displacement pump
C Pressure Adjusting Knob Controls fluid outlet pressure
D ON/OFF Switch Power switch that controls 120 Vac power to sprayer
E Fluid Outlet Hose and spray gun is connected here
F Displacement Pump Pressurizes fluid to be sprayed through spray gun
G 50 ft (15 m) Main Hose 1/4 in. ID, grounded, nylon hose with spring guards on both ends
H RAC IV Tip Guard Reverse-A-Clean (RAC) tip guard reduces the risk of fluid injection injury
J FTx Gun High pressure spray gun with gun safety latch
K RAC IV Switch Tip RAC switch tip atomizes fluid and removes clogs from spray tip without
removing tip from spray gun
L Pressure Drain Valve Relieves fluid pressure when open
M Pressure Control Controls motor to maintain fluid pressure. Works with pressure
adjusting knob.
N Spray Gun Safety Latch Inhibits accidental triggering of spray gun
