24 308443
Service
Insert bearings tapered end first.

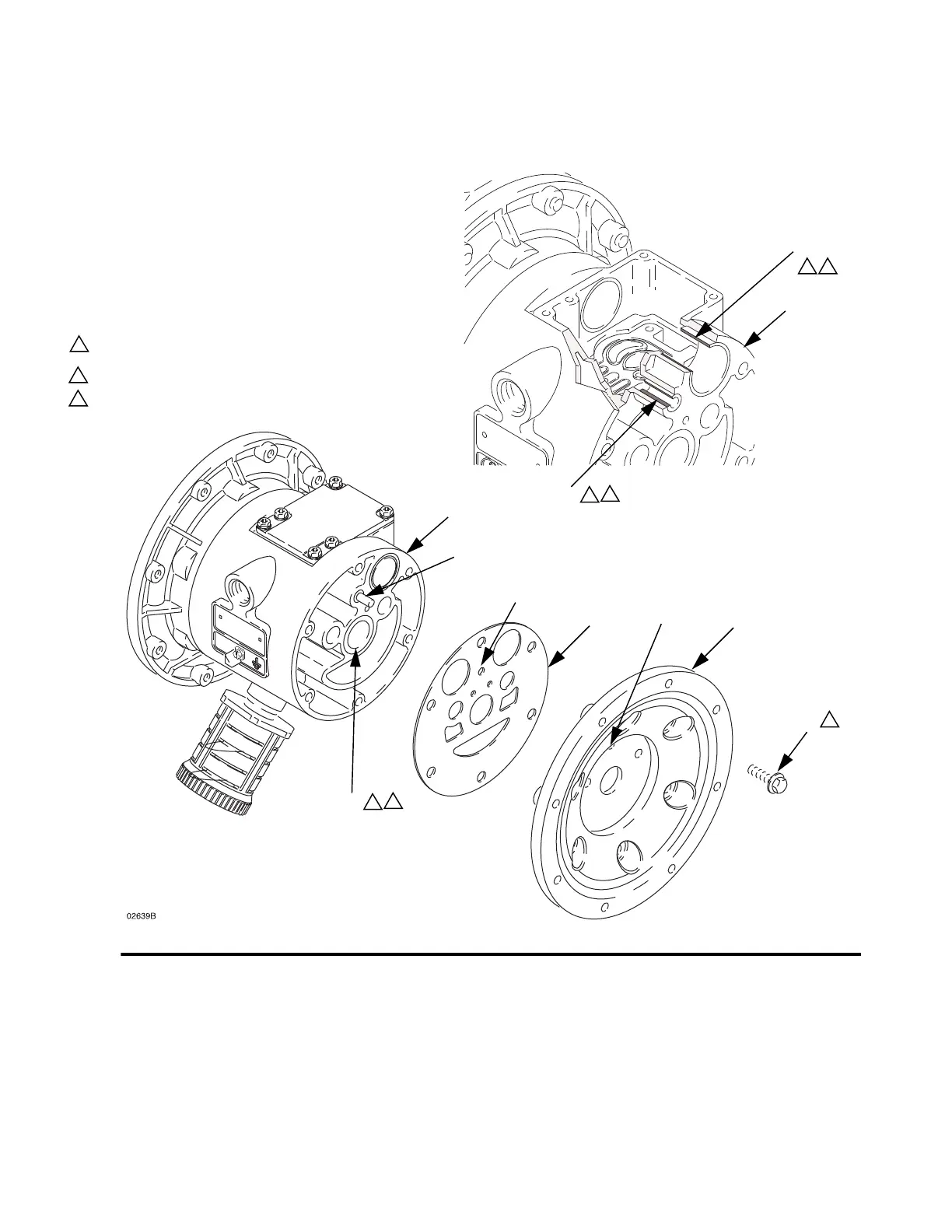

Detail of Air Valve Bearings
Press-fit bearings flush with surface of center housing (1).
Apply medium-strength (blue) Loctite® or equivalent.
Torque to 130 to 150 in-lb (14 to 17 N•m).
04158
1
12
2
1
15
1
2
1
16
H
22
19
1
2
2
1
3
M
23
25
3
Fig. 14
