312830C 3

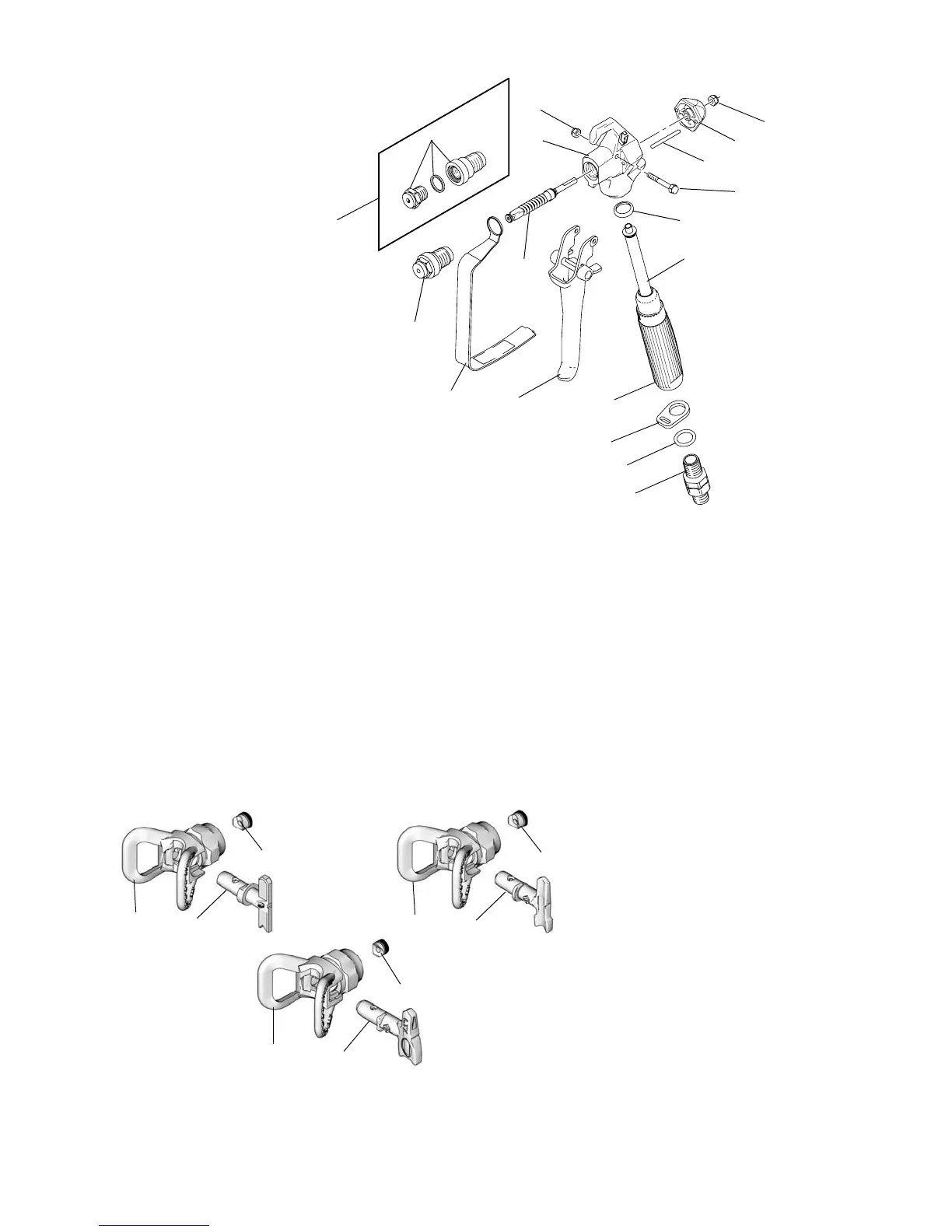

Parts
33
26
5
1a
4
6
23
ti15355a
1c
8
24
22
7
32
3
1b
10
*Kit 288817 repairs both
series A and B guns.
Series B
Series A
1a replaces these three
components of series A.
1a
Ref. Part Description Qty.
1 288817 KIT, repair, gun (includes 1a, 1b, 1c) 1
1a SEAT, valve 1
1b NEEDLE, gun 1
1c 115483 NUT, lock 1
3 243639 TRIGGER, repair kit
includes 32, 33
4 195495 GUARD, trigger 1
5 238817 KIT, swivel 1
195384 ADAPTER, gun inlet (SG2) 1
6✓ 243084 FILTER, gun, SG2/SG3 1
218131 FILTER, gun, SG3-E/SG3-A 1
7✓ 179733 SEAL, sleeve 1
8 195395 CAP, end 1
10 115484 PIN, actuator 2
22 113409 RETAINER, guard 1
23 195393 HANDLE, gun (SG2) 1
195788 HANDLE, gun (SG3, SG3-E) 1
195920 HANDLE, gun (SG3-A) 1
24 115485 O-RING 1
26 195389 HOUSING, fluid (SG2) 1
195390 HOUSING, fluid, (SG3 ALL) 1
32 177538 STUD, trigger 1
33 105334 NUT, lock, hex 1
▲ Replacement Warning labels, tags and cards are available
at no cost.
✓ Keep these spare parts on hand to reduce down time
Ref. Part Description Qty.
Ref Part Description Qty
24
243004
OneSeal
™
, RAC IV (2-pack)
1
243281
OneSeal
™
, RAC 5 (5-pack)
1
246453
OneSeal
™
, RAC X (5-pack)
1
25 237859 GUARD, RAC IV 1
243161 GUARD, RAC 5 1
246215 GUARD, RAC X 1
26 221515 TIP, spray 515, RAC IV 1
286515 TIP, spray 515, RAC 5 1
LTX515TIP, spray 515, RAC X 1
RAC X
RAC 5
25
26
24
24
25
26
ti11561a
ti8505b
RAC IV
24
25
26
ti11739a
