Graco 246220 - Page 20

20 309639

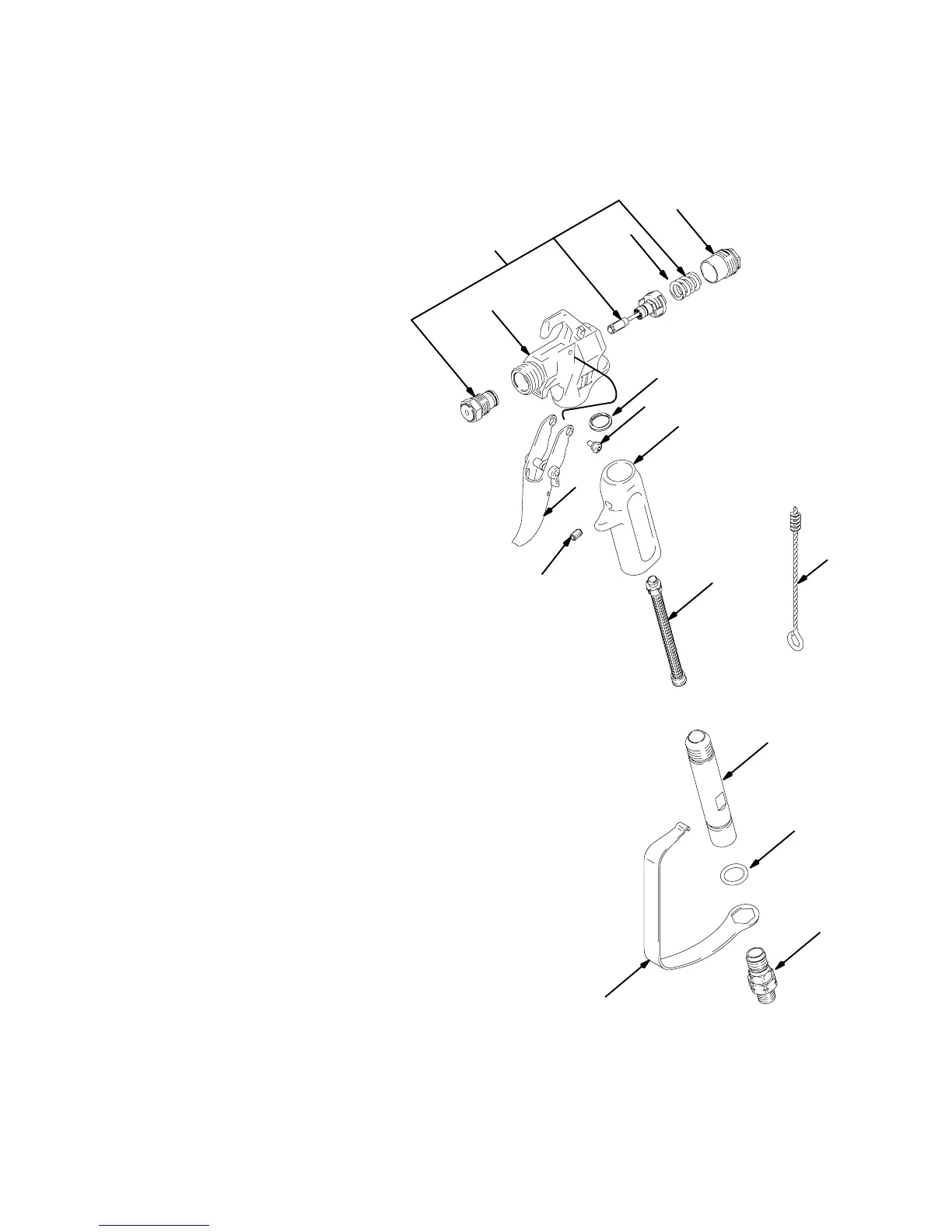

Parts Drawing / Pièces /
Diagrama de piezas / Desenho das peças
2
1
Contractor Gun Series A and B Models: / Modèles de pistolets Contractor:
Modelos de pistola Contractor: / Modelos de Pistola Contractor:
246220, 246221, 246222, 246224, 246225, 246434, 246538, 824987
Ref.
No. Part No. Description Qty.
1 15B569 HOUSING 1
2 15D917 SPRING, compression 1
3 15B549 NUT, end 1
4 287031 KIT, needle, repair,
(includes 2) 1
10 117602 SCREW, shoulder, pan hd
(included with 11) 2
11 287104 TRIGGER, 2–finger 1
287103 TRIGGER, 4–finger
12 15B579 GUARD, trigger 1
13 179733 SEAL, sleeve 1
14 287594 KIT, Gun handle,
includes 20 1
15 287032 FILTER, 60 mesh 1
287033 FILTER, 100 mesh
287034 FILTER, 60 & 100
mesh combo
16 15B583 TUBE, handle 1
17 15B958 O–RING, packing 1
18 287099 SWIVEL 1
19Y 222385 WARNING CARD
(not shown) 1
20 100002 SCREW, set 1
21 119799 BRUSH, cleaning 1
Y Replacement Danger and Warning labels,
tabs and cards are available at no cost.
Y Les étiquettes et les panonceaux de danger et
de mise en garde supplémentaires sont dispo-
nibles gratuitement.
Y Se pueden obtener gratuitamente tarjetas y
etiquetas de advertencia y de peligro, de re-
cambio.
Y Encontram-se disponíveis gratuitamente eti-
quetas, rótulos e cartões de advertência e de
perigo sobressalentes.
14
2
10
11
1
ti2585c
15
13
16
17
18
4
12
3
20
