Graco 253485 Instructions-Parts List

30 308441

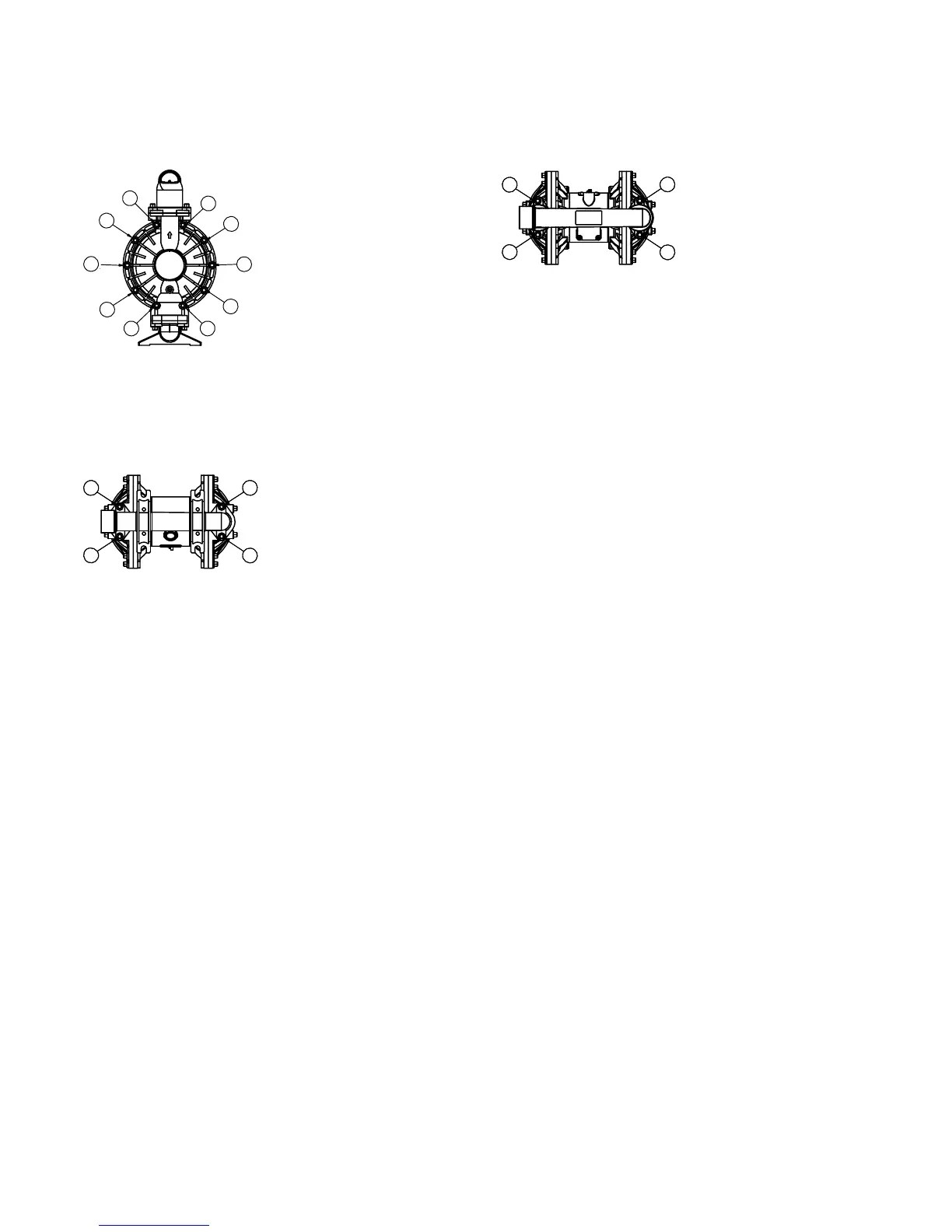

Torque Sequence
Always follow torque sequence when instructed to torque fasteners.
1. Left/Right Fluid Covers
Torque bolts to 190–220 in–lb (22–25 Nm).
SIDE VIEW
42
7
9
5
3
6
10
8
1
2. Inlet Manifold
Torque bolts to 120–150 in–lb (14–17 Nm).
BOTTOM VIEW
13
12
11
14
3. Outlet Manifold
Torque bolts to 120–150 in–lb (14–17 Nm).
TOP VIEW
15
18
17
16
