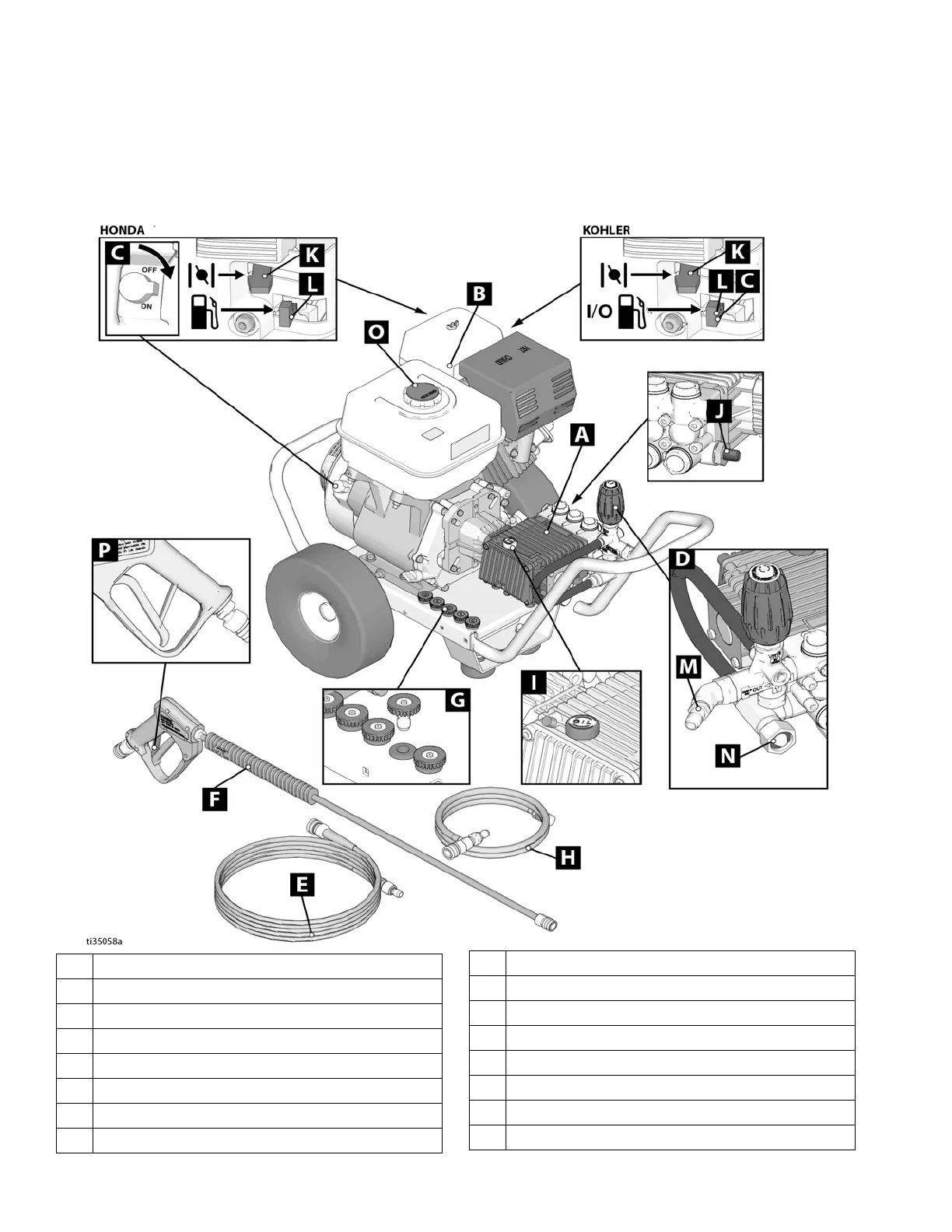

Component Identification
8 3A6588B
Component Identification
Direct-Drive Models
A Water Pump
BEngine
C ON/OFF Switch
D Unloader
E High-Pressure Washer Hose
FGun
G Nozzles
H Chemical Injector Hose
I Pump Oil Cap
J Thermal Relief Valve
K Choke
L Fuel Valve
M High-Pressure Outlet
N Low-Pressure Inlet
OGas Cap
P Trigger Lock
