Fuse Replacement
310824C 21
Fuse Replacement
Removal
1. Relieve pressure, page 7. Disconnect power cord
from outlet.
2. Remove two screws (30) and shroud (29).
3. Remove fuse from control board.
4. Remove spare fuse from motor.
Installation
1. Replace fuse on control board with spare fuse.
2. Install shroud (29) and two screws (30).

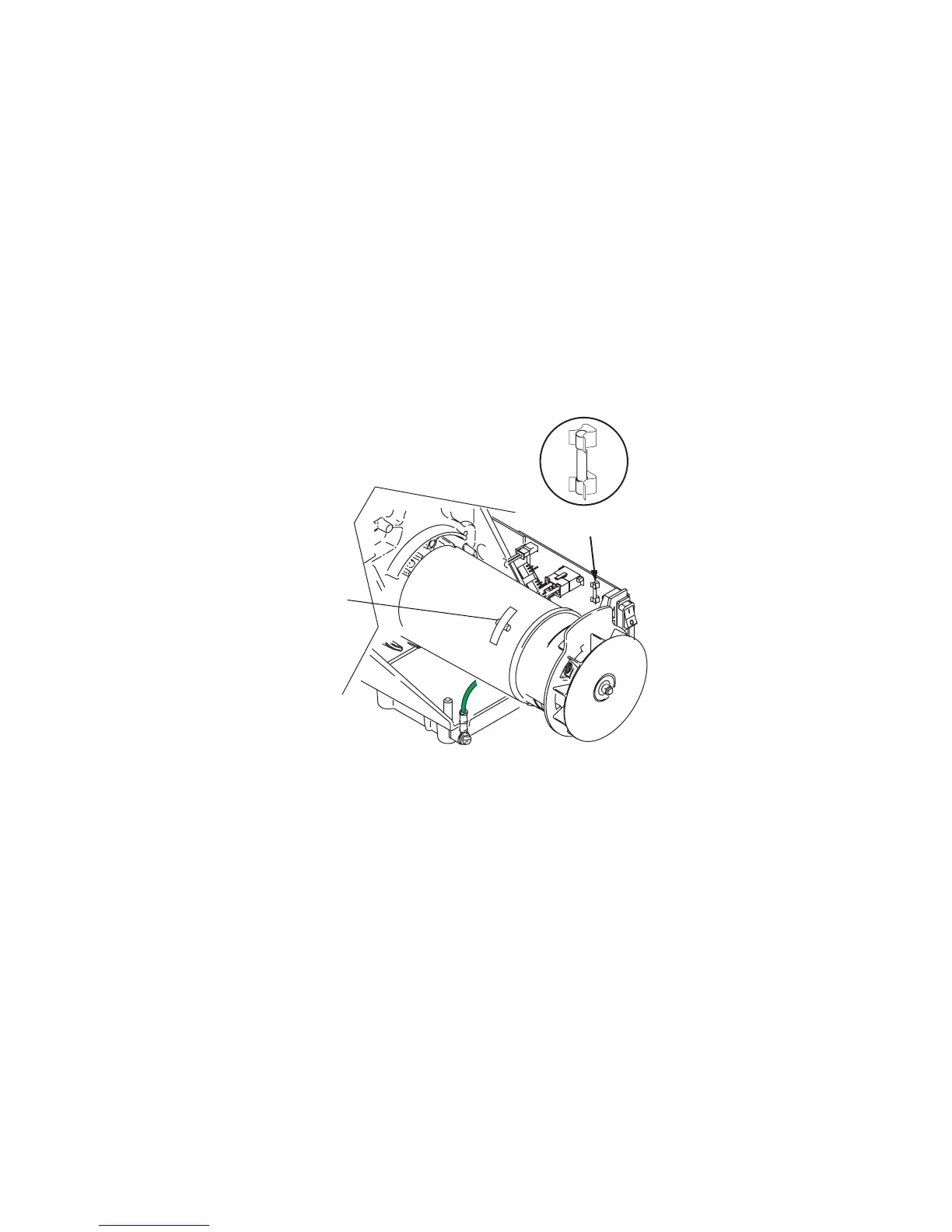

Replaceable Fuse
ti9134b
Spare Fuse

Table of Contents

Other manuals for Graco 390

Preview: Instructions
Instructions7 pages
Preview: Operation Manual
Operation Manual40 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Graco 390 and is the answer not in the manual?

Graco 390 Specifications

General IconGeneral
Max Pressure3300 PSI
Flow Rate0.47 GPM
Weight30 lbs
Power SourceElectric
TypeAirless
Hose Length50 ft
Voltage120V
Horsepower0.625 HP
