Category Data
Maximum Working Fluid Pressure . . . . . . . . . . . . . . . . . . Model G15: 1500 psi (10 MPa, 105 bar)
Model G40: 4000 psi (28 MPa, 280 bar)
Maximum Working Air Pressure . . . . . . . . . . . . . . . . . . . . 100 psi (0.7 MPa, 7 bar)
Maximum Gun Inlet Air Pressure for HVLP Operation . . . 14 psi (0.098 MPa, 0.98 bar)
Maximum Working Fluid Temperature . . . . . . . . . . . . . . .
110
°F (43°C)
Fluid Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4-18 npsm
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4-18 npsm (R1/4-19) compound male thread
Gun Weight. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 oz (450 grams)
*Sound Pressure at 20 psi (140 kPa, 1.4 bar) . . . . . . . . . 66.9 dB(A)
*Sound Pressure at 100 psi (0.7 kPa, 7 bar) . . . . . . . . . . 80.0 dB(A)
*Sound Power at 20 psi (140 kPa, 1.4 bar) . . . . . . . . . . . 76.8 dB(A)
*Sound Power at 100 psi (0.7 kPa, 7 bar) . . . . . . . . . . . . 89.9 dB(A)
Wetted Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Stainless Steel, Carbide, Ultra High Molecular Weight
Polyethylene, Engineered Plastic, PTFE, Nylon, Fluoro-
elastomer

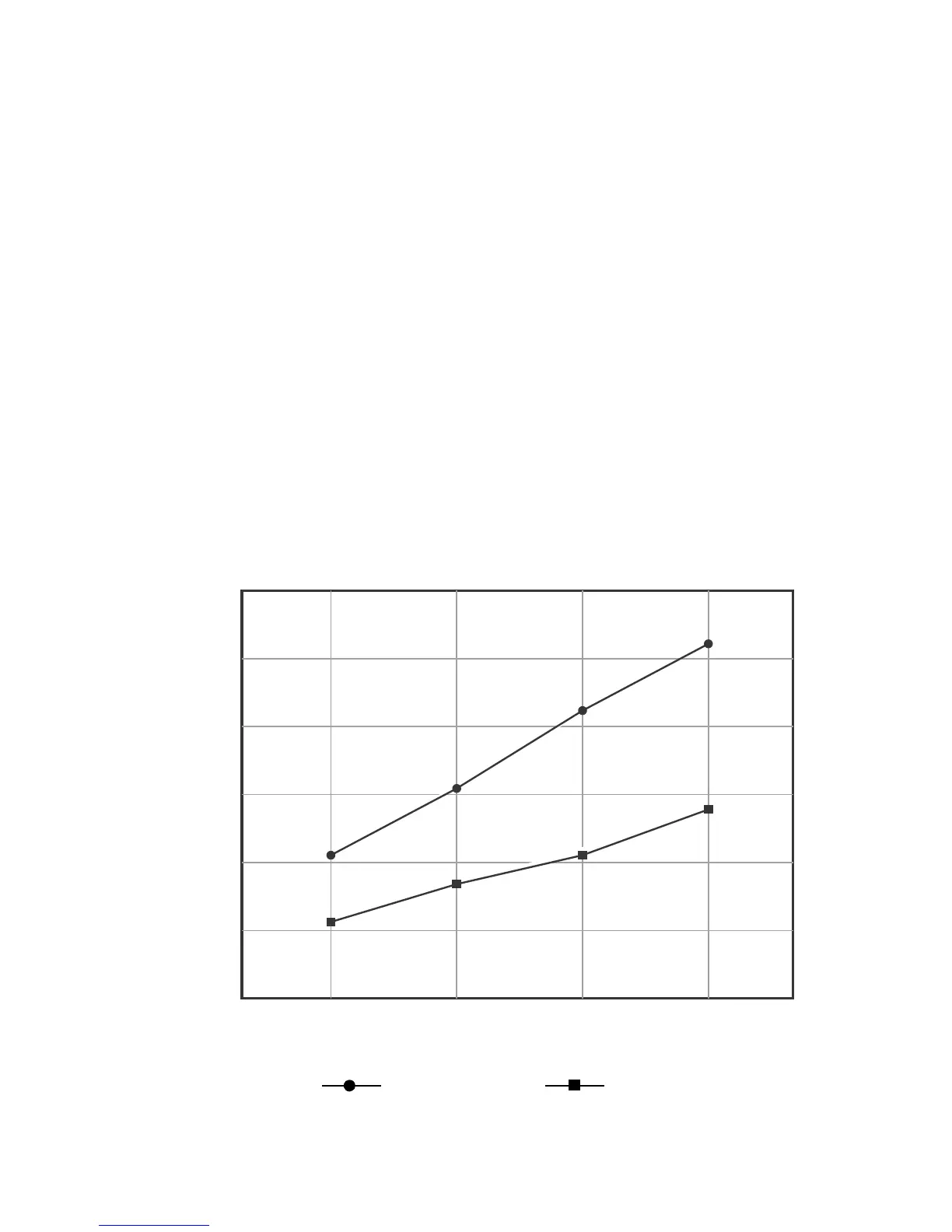

Air Flow, Standard Air Cap
Gun Inlet Pressure (PSI)
10 20
30 400
0
2
4
6
8
10
50
12
Air Flow
(SCFM)
4.2
6.4
8.6
10.6
5.8
4.6
3.8
2.6
Fan Valve Open Fan Valve Closed
