Pressure Control
Pump ON/OFF Switch

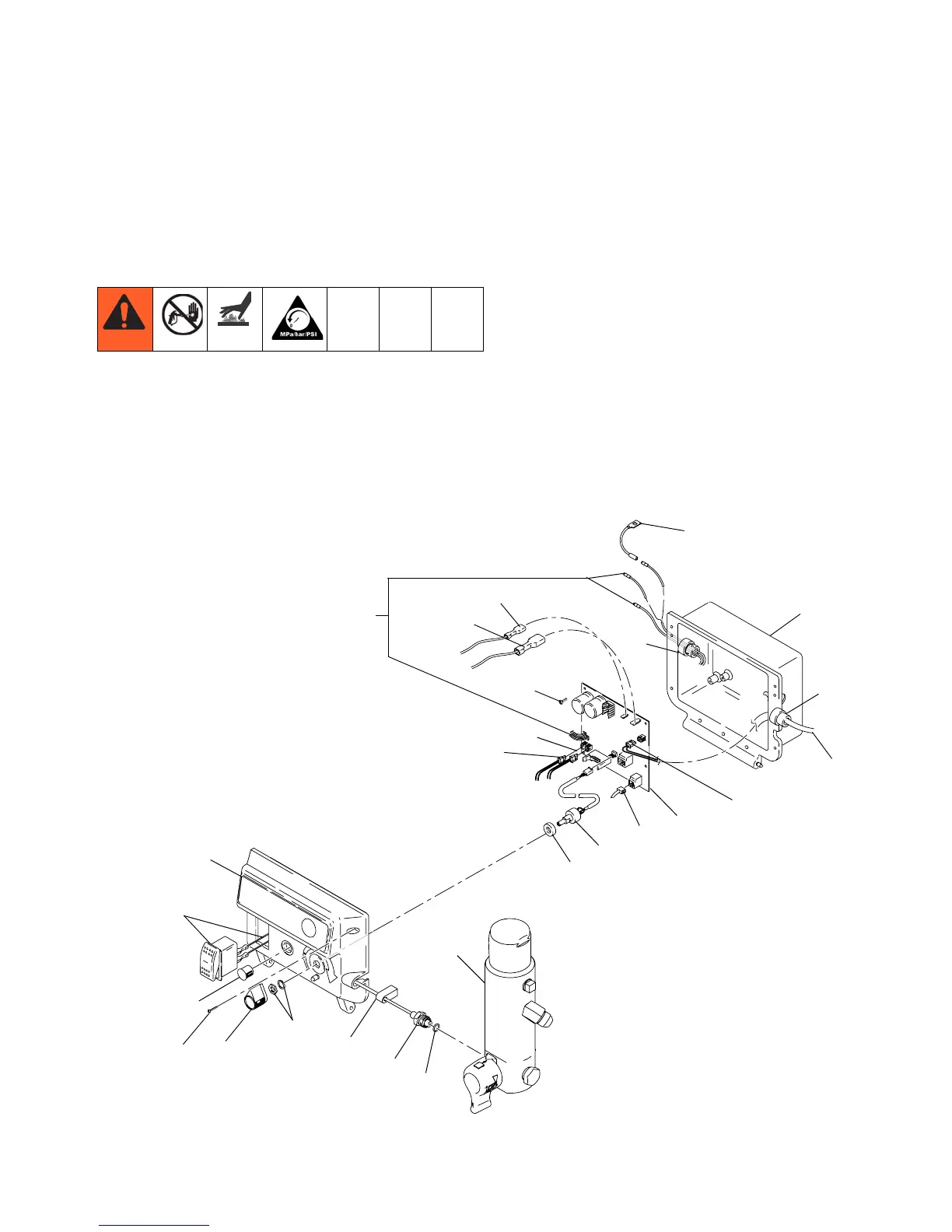

Removal
1. Remove two screws (71) and swing down
cover (130a).
2. Disconnect pump ON/OFF switch (130f) connector
from control board.
3. Press in on two retaining tabs on each side of pump
ON/OFF switch (130f) and remove switch from
cover.
Installation
1. Install new pump ON/OFF switch (130f) so tabs of
switch snap into place on inside of cover.
2. Connect pump ON/OFF switch connector to control
board.
3. Swing up cover (130a) and secure with two screws
(71).
