Graco 3A0243A - Page 25

Displacement Pump
3A0243A 25

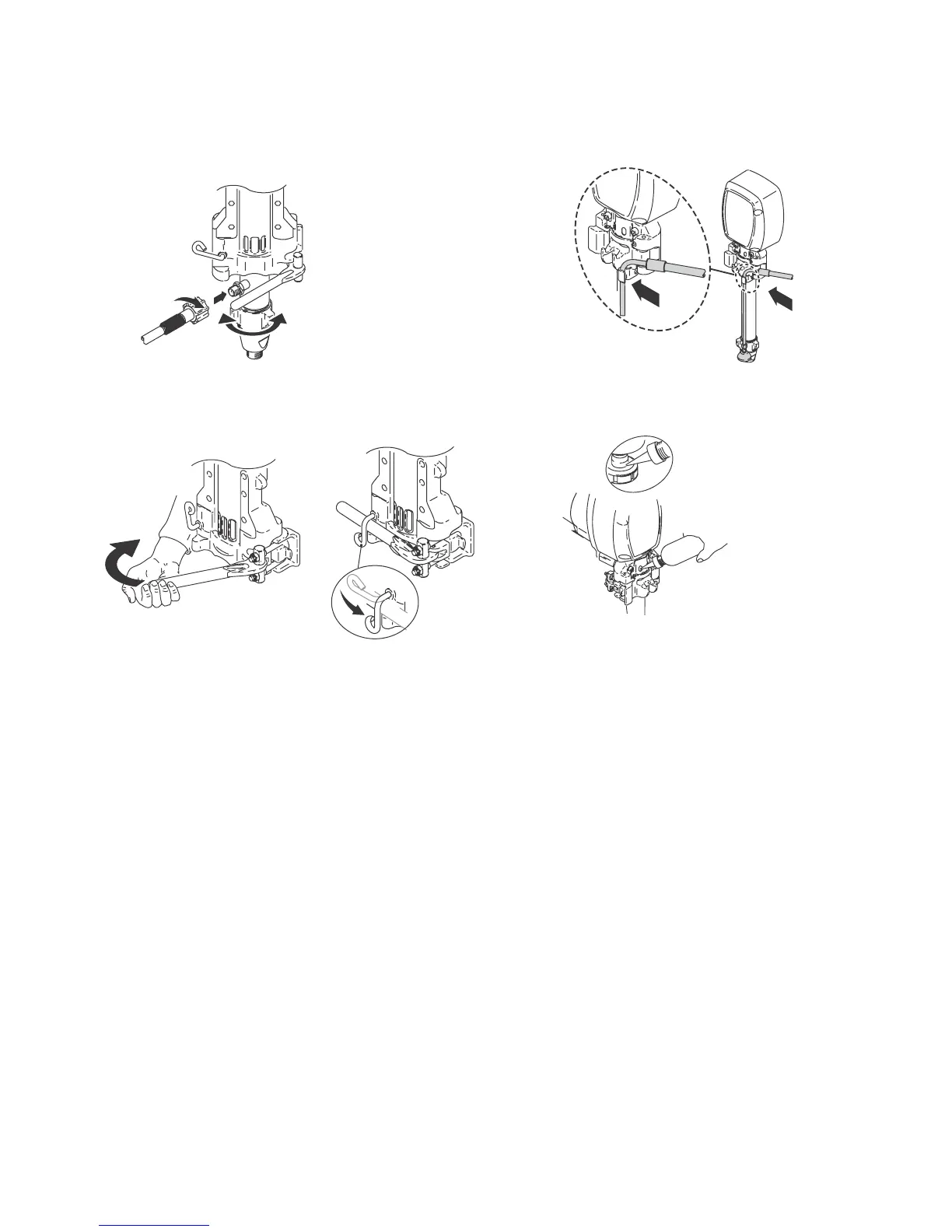

5. Rotate pump to align with material hose. Connect
material hose and hand tighten to 70 in-lb.
6. Tighten latch and rotate latch lock into locked posi-
tion.
7. Attach drain hose to sprayer.
8. Fill pump with Graco TSL until fluid flows onto top
of seal.
