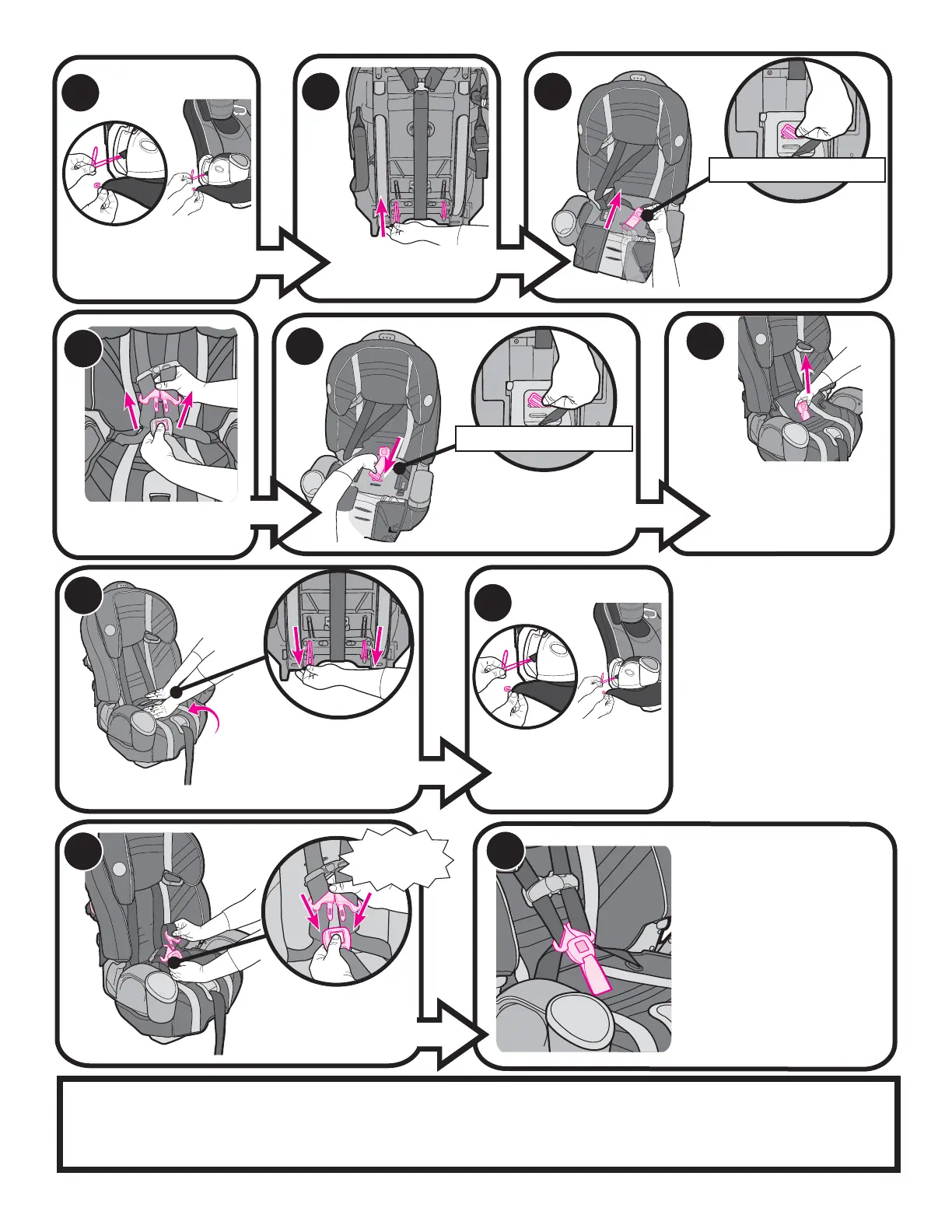

Remove elastic loops
from back of seat as
shown.
Push button and
remove tongues from
the NEW buckle.
Insert metal retainer
from NEW buckle into
crotch slot in the seat
bottom as shown.
Re-insert buckle
through slot in seat pad
and pull up on buckle
to be sure it is
secured in the slot.
Push seat pad back into
seating area until the elastic
straps come out the back
then re-attach to hooks as
shown.
Insert NEW tongues
into buckle.
13
Pull seat pad forward and
remove buckle from pad.
From bottom of seat push
metal retainer up and
discard buckle.
14
17
16
11
Remove elastic loops
from sides of seat as
shown.
CLICK!
18
Re-attach elastic loops
on sides of seat as
shown.
FINAL CHECK :
• Tug on the buckle to be sure
it is properly secured in the
bottom of the seat and does
not come out.
• MAKE SURE the harness
straps are not twisted.
• Make sure the chest clip is
properly threaded as shown
in Step 8.
20
UNDERSIDE OF SEAT
UNDERSIDE OF SEAT
