Graco Contractor II - Page 18

18 309639

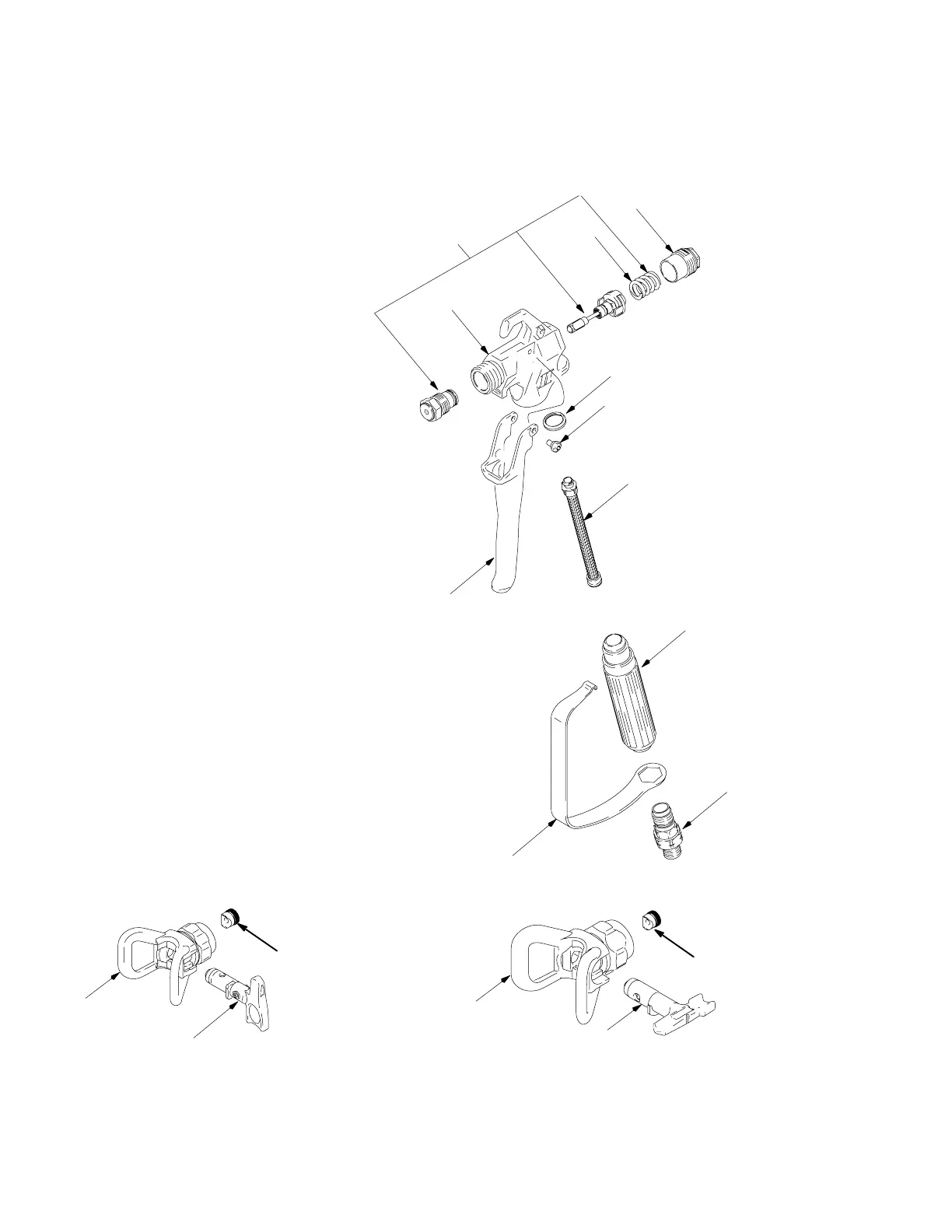

Parts Drawing / Pièces /
Diagrama de piezas / Desenho das peças
FTX Gun Model: / Modèle de pistolet FTX:
Modelos de pistola FTX: / Modelo de Pistola FTX:
246230 – 246235, 246435, 246539, 246540
14
2
3
10
11
12
1
15
ti2584a
4
13
18
Ref.
No. Part No. Description Qty.
1 15B569 HOUSING 1
2 15D917 SPRING, compression 1
3 15B549 NUT, end 1
4 287031 KIT, needle, repair (includes 2) 1
10 117602 SCREW, shoulder, pan hd 2
(included with #11)
11 287102 TRIGGER, 2–finger 1
287105 TRIGGER, 4–finger
287106 TRIGGER, 4–finger, CE
12 15B579 GUARD, trigger 1
13 179733 SEAL, sleeve 1
14 15B584 HANDLE 1
15B826 HANDLE (model 246233, 246540)
15 287032 FILTER, 60 mesh 1
287033 FILTER, 100 mesh
287034 FILTER, 60 and 100 mesh combo
16 15B903 SLEEVE, swivel 1
18 287099 SWIVEL 1
19Y 222385 WARNING CARD (not shown) 1
Y Replacement Danger and Warning labels, tabs and cards
are available at no cost.
Y Les étiquettes et les panonceaux de danger et de mise en
garde supplémentaires sont disponibles gratuitement.
Y Se pueden obtener gratuitamente tarjetas y etiquetas de
advertencia y de peligro, de recambio.
Y Encontram-se disponíveis gratuitamente etiquetas, rótulos
e cartões de advertência e de perigo sobressalentes.
RAC X TIP
9
8
7
7 246453 RAC X One Seal (5–pack) 1
8 LTX517 RAC X SwitchTip, Size 517 1
9 246215 RAC X HandTitet GUARD 1
RAC 5 TIP
9
7 243281 RAC 5 OneSealt (5–pack) 1
8 286517 RAC 5 SwitchTip, Size 517 1
9 243161 RAC 5 HandTitet Tip Guard 1
8
7
