Setup
8 311861R

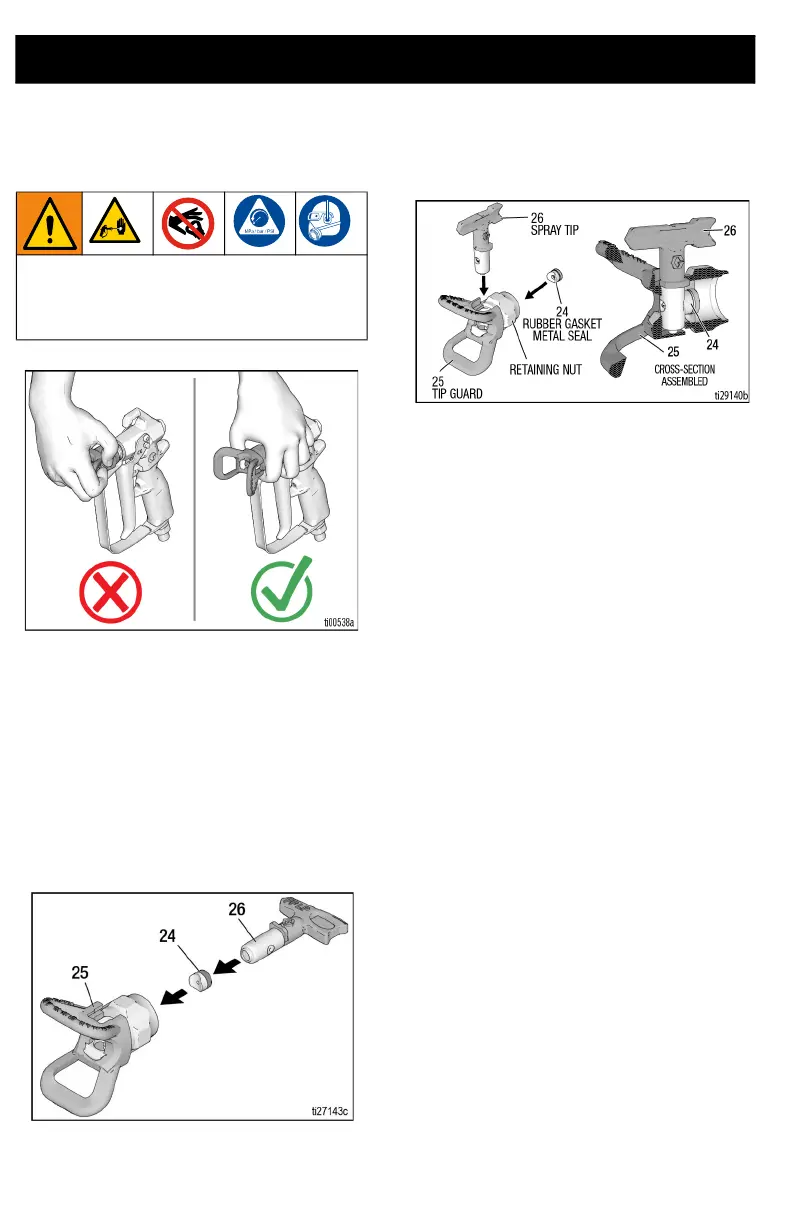

Install Tip and Tip Guard
on Gun
To prevent spray tip leaks make certain
spray tip and tip guard are installed
properly.
1. Relieve pressure. Follow the
Pressure Relief Procedure, page
7.
2. Engage trigger lock (15).
3. Use spray tip (26) to align gasket
and seal (24) in the tip guard (25).
4. Insert tip (26) in guard (25).
5. Verify spray tip and tip guard parts
are assembled in the order shown.
6. Install guard (25) over end of gun
(1). Hand tighten retaining nut.
Connect Gun to Sprayer
Make sure sprayer is turned off and
unplugged from power source. Refer to
your sprayer instruction manual for
priming and spray instructions.
1. Attach supply hose to sprayer fluid
outlet.
2. Attach other end of supply hose to
gun swivel (7). Use two wrenches
(one on the swivel (7) and one on
the hose), to tighten all connections
securely.
3. Refer to your sprayer instruction
manual for priming instructions.
To avoid serious injury from skin injection
do not put your hand in front of the spray
tip when installing or removing the spray
tip and tip guard.
