Graco DataTrak - Datatrak Controls and Indicators; Run Mode; Setup Mode

DataTrak Controls and Indicators
3A7634A 3
DataTrak Controls and Indicators
Run Mode Key
AE Display
BCS Batch Counter Suppression (Enables batch counter sup-
pression mode. While in BCS mode, batch counting is
disabled and the LED will flash.)
BT Batch Totalizer (manually resettable to zero (0)). Counts
revolutions of the motor/agitator.
CF Speed (rpm)
GT Grand Totalizer (not manually resettable). Counts revolu-
tions of the motor/agitator. Resets automatically to zero
(0) after reaching 100 million revolutions. Note: Grand
Totalizer accuracy is limited to speeds below 400 rpm.
LED LED (flashes during over-speed alert and in Batch
Counter Suppression mode)
RK Reset Key (Press and hold for 3 seconds to clear and
reset the Batch Totalizer).
Setup Mode Key
CF
BT
GT
AA
BCS
Run Mode
Setup Mode
RK
ti8622b
ti8623b
00 00
0
/min
0 000
00 000
/min
0
AE
LED
RK
BCS
AE

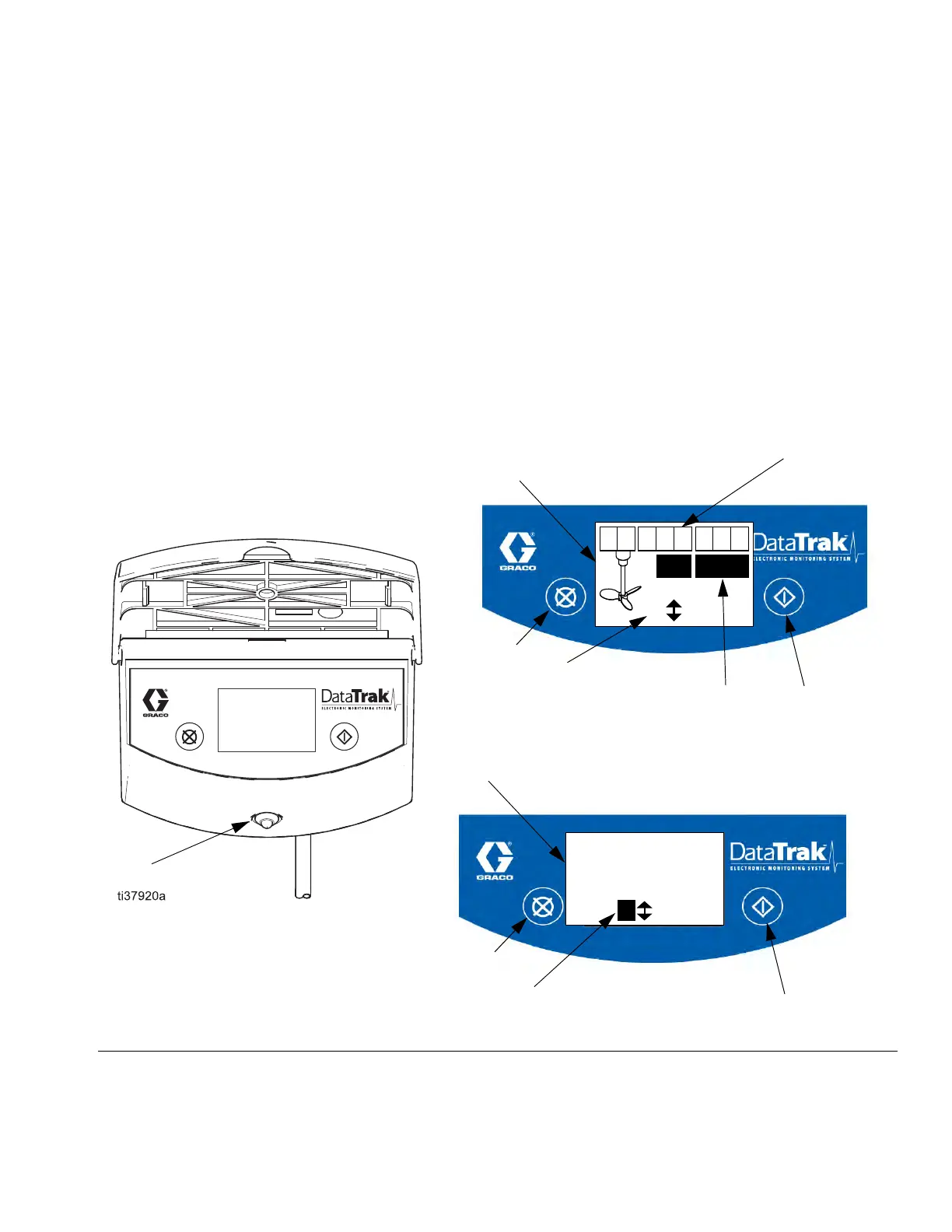

FIG. 1. DataTrak Controls and Indicators
AA Over-speed setting, rpm (user settable; 000 = OFF). To
set over-speed, hold the BCS button for five seconds.
Use the RK button to set values, and the BCS button to
advance to the next unit and to exit setup mode.
AE Display
