Graco FIRE-BALL - Parts Identification

11308-879

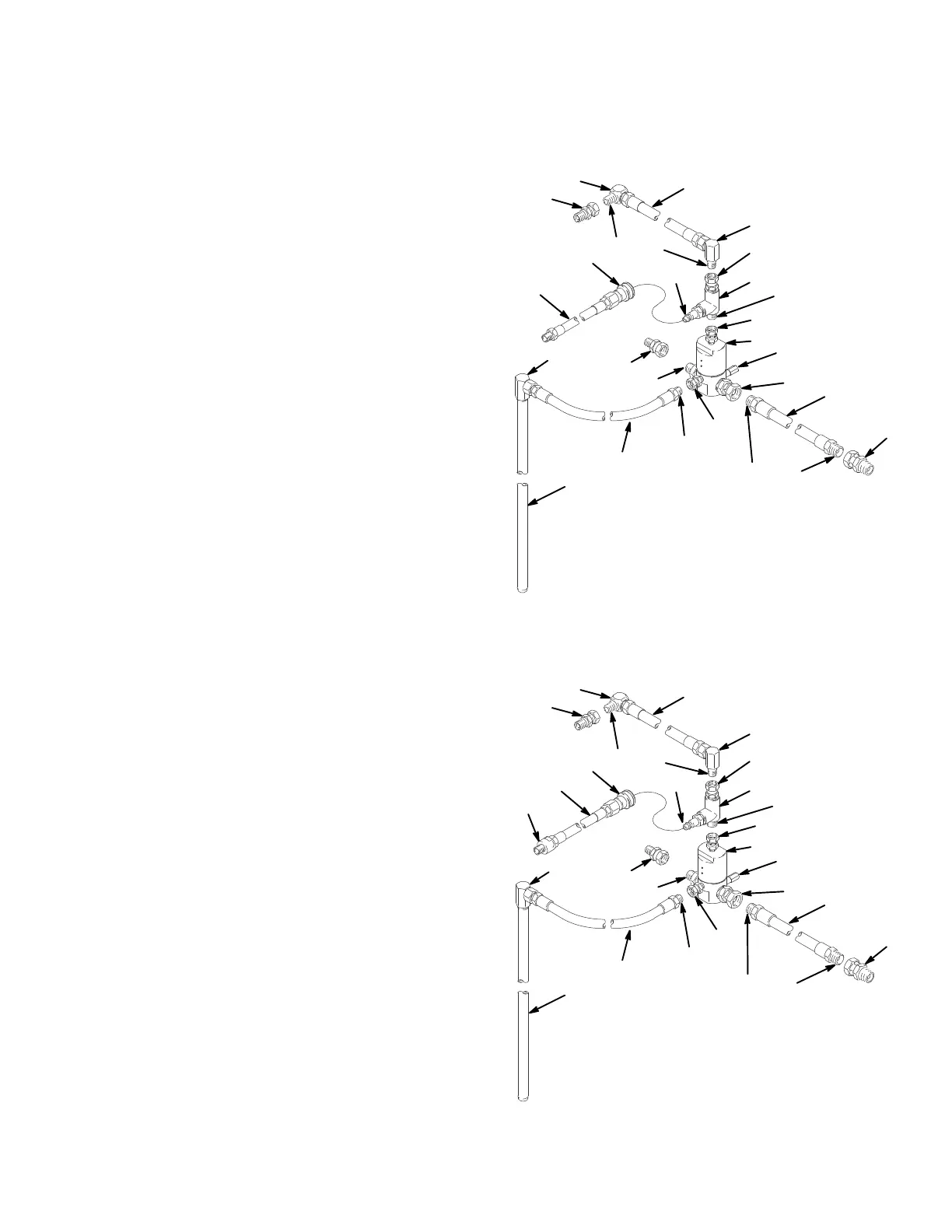

Parts — Vent Valve Kits,
Models 240–760, 240–761, and 240–763
12
19
18
8430A
Model No. 240–760 / 240–761
Ref
No. Part No. Description Qty.
1 * SEALANT , anaerobic (not shown) 1
2 109–105 HOSE, coupled 1
3 *
COUPLER, air line 1
4 * FITTING, air line 1
5 * SWIVEL, straight 1
6 * TEE 1
7 * UNION, swivel; 90  1
8 * UNION, adapter 2
9 * ELBOW
, street; 90  1
10 * FITTING, adapter 1
11 * UNION, swivel; 90  1
12 * UNION, swivel 1
13 * UNION, swivel 2
14 * UNION, swivel 1
15 *
TUBE, vent 1
16 203–320 HOSE, medium pressure 1
17 204–560 HOSE, medium pressure 1
18 220–598 HOSE, coupled 1
19 * VAL VE, vent 1
20 * VAL VE, safety relief 1
21 222–011
WIRE, ground, pump (not shown) 1
22 110–224 VAL VE, air , bleed (not shown) 1
* These parts cannot be ordered separately .
2
3
4
5
6
7
8
15
Model No. 240–760 / 240–761
10
14
9
8
13
13
18
17
16
20
Model No. 240–763
Ref
No. Part No. Description Qty.
1 * SEALANT , anaerobic (not shown) 1
2 109–105 HOSE, coupled 1
3 *
COUPLER, air line 1
4 * FITTING, air line 1
5 * SWIVEL, straight 2
6 * TEE 1
7 * UNION, swivel; 90  1
8 * UNION, adapter 2
9 * ELBOW
, street; 90  1
10 * FITTING, adapter 1
11 * UNION, swivel; 90  1
12 * UNION, swivel 2
13 * UNION, swivel 1
14 * TUBE, vent 1
15 205–418
HOSE, coupled 1
16 218–093 HOSE, medium pressure 1
17 220–598 HOSE; coupled 1
18 * VAL VE, vent 1
19 * VAL VE, safety relief 1
20 * ADAPTER 1
21 222–011
WIRE, ground, pump (not shown) 1
22 110–225 VAL VE, air , bleed (not shown) 1
* These parts cannot be ordered separately .
2
3
4
6
7
8
14
Model No. 240–763
10
13
11
5
9
8
12
12
17
16
15
19
20
Note: Parts for Vent V alve Kit 240–760 and
240–761 are the same, except for the length of
the vent tube (15).
11
3/8 npt
1/2 npt
1/2 npt
3/8 npt
1/2 npt
3/4 npt
3/4 npt
1/2 npt
5
