Graco FIRE-BALL - Page 12

12 308-879
Parts — Fire-Ball Packages,
Models 240–854 and 240–857
A
B
B
A
3
8427B
Ref
No. Part No. Description Qty.
1 207–609 Pump; 50:1 Fire-Ball,
for 70# barrel
See manual 306–517 1
2 240–668 Cover
, drum 1
3 240–760 KIT , vent valve
See parts on page 1 1 1
4 240–671 KIT , hold-down
See parts on page 14 1
5 114–624 P AIL, 10-gallon (38 liter) 1
Ref
No.
Part No. Description Qty.
1 203–869 Pump; 50:1 Fire-Ball,
for 120# barrel (not included)
See manual 306–517 1
2 240–668 Cover
, drum 1
3 240–761 KIT , vent valve
See parts on page 1 1 1
4 222–061 KIT , hold-down
See parts on page 14 1
Model No. 240–857 shown
2
4
5
Model No. 240–854

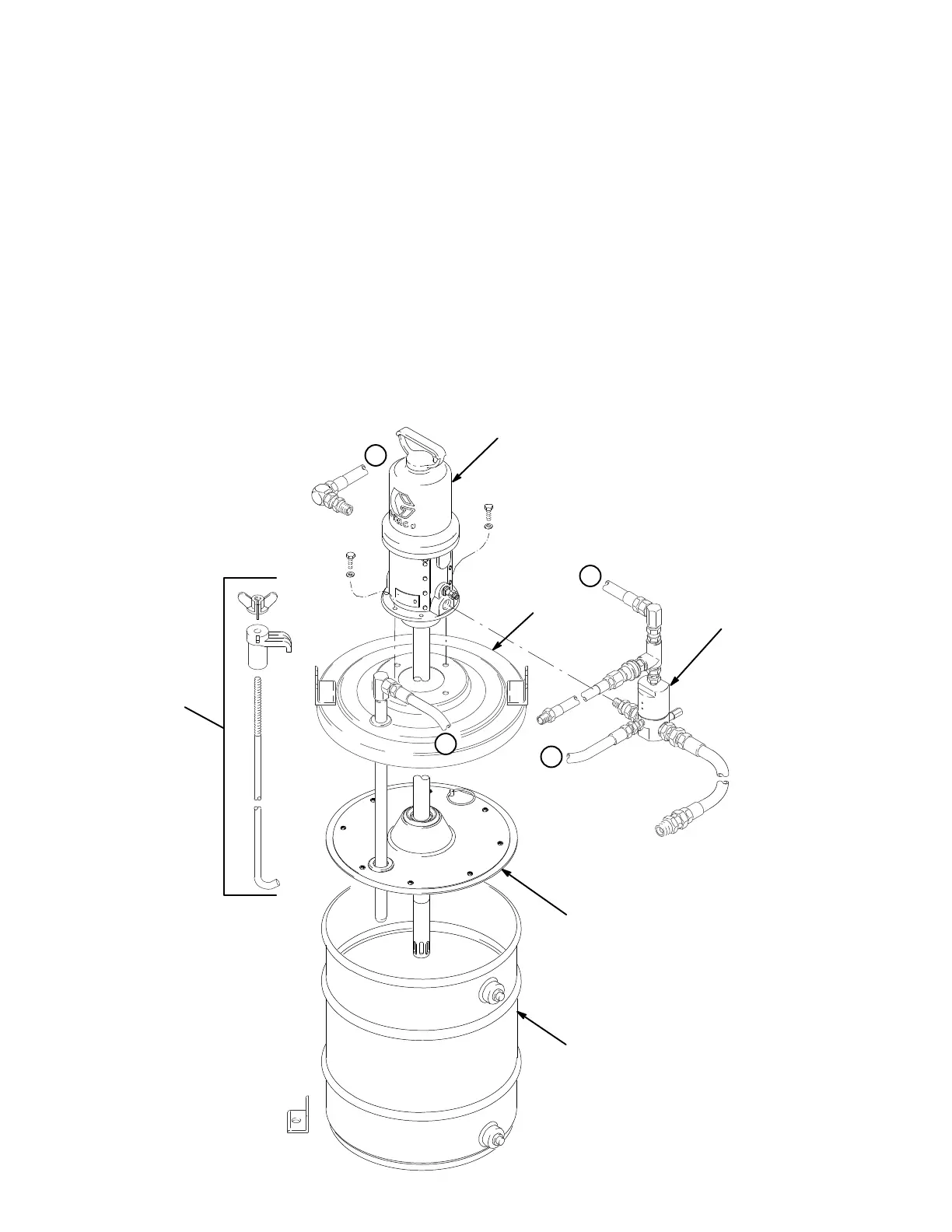

50:1 Fire-Ball Package for 120-pound Barrel
Model No. 240–857
50:1 Fire-Ball Package with 70-pound Pail
optional follow plate
1
