Pressure Control
310893L 13
Pressure Control
Pump ON/OFF Switch
Removal

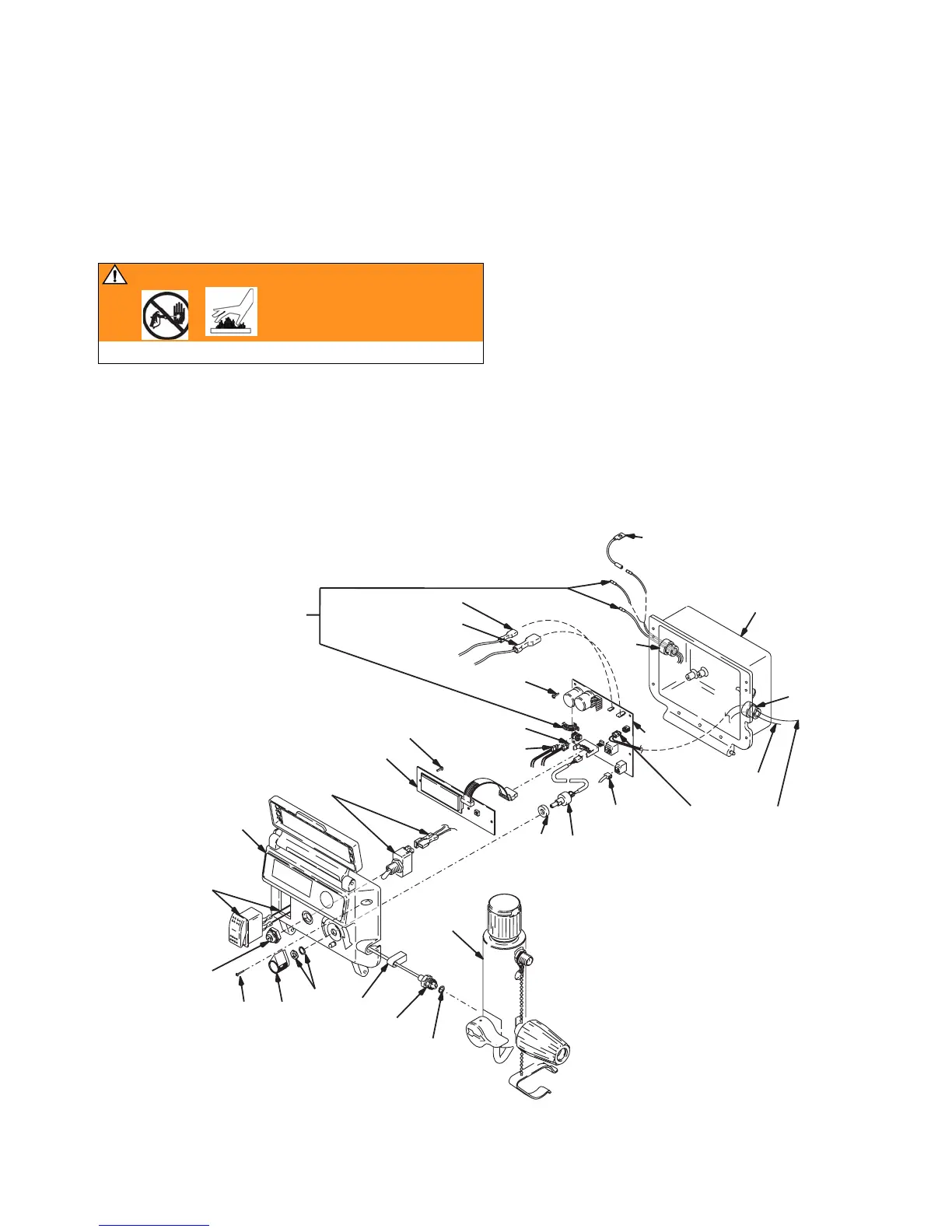

1. FIG. 14. Remove two screws (71) and swing down
cover (130a).
2. Disconnect pump ON/OFF switch (130f) connector from
control board.
3. Press in on two retaining tabs on each side of pump
ON/OFF switch (130f) and remove switch from cover.
Installation
1. Install new pump ON/OFF switch (130f) so tabs of switch
snap into place on inside of cover.
2. Connect pump ON/OFF switch connector to control
board.
3. Swing up cover (130a) and secure with two screws (71).
FIG. 14
WARNING
Read Injection Hazard, page 3; Burn Hazard, page 4
