Graco GMAX II 3900 Repair Manual

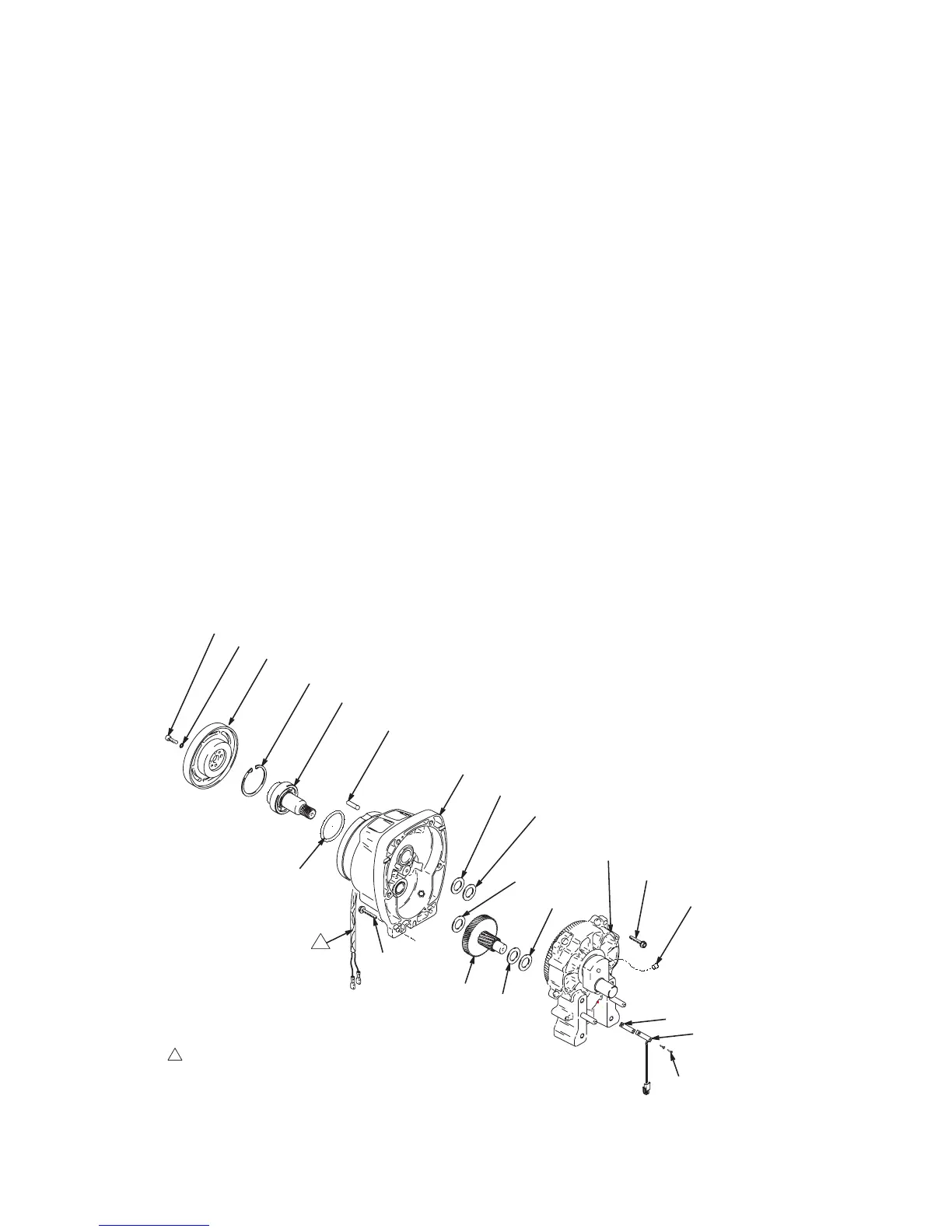

Parts Drawing and List - Pinion Housing, Drive Housing
26 310893L
Parts Drawing and List - Pinion Housing, Drive Housing
Ref 29: Pinion Housing
GMAX ll 3900: 287463
GMAX ll 5900: 287465
GMAX ll 7900: 287466
TexSpray 7900HD: 287466
Ref 33: Drive Housing
GMAX ll 3900: 287467
GMAX ll 5900: 287469
GMAX ll 7900: 287470
TexSpray 7900HD: 287470
Ref Part Description Qty
29 KIT, repair, field
287474 3900 1
287476 5900 1
287477 7900/TexSpray 7900HD 1
29a GEAR, driving, first
287525 3900 1
241114 5900/7900/TexSpray 7900HD 1
29b RING, retaining, large
113094 3900 1
112770 5900/7900/TexSpray 7900HD 1
29c 105489 PIN, dowel 2
29d O-RING
165295 3900 1
114683 5900/7900/TexSpray 7900HD 1
33a WASHER, thrust, steel
116191 3900 1
116192 5900/7900/TexSpray 7900HD 1
Ref Part Description Qty
33 DRIVE HOUSING 1
33a WASHER, thrust, steel
116191 3900 1
116192 5900/7900/TexSpray 7900HD 1
33b WASHER, thrust, brass
107089 3900 1
194173 5900/7900/TexSpray 7900HD 1
108 Ref*
34 Ref*
38 Ref
33
30,72 Ref
31 Ref
32 Ref
29
29c
29a
29b
27 Ref
28 Ref
ti5494c
38 Ref
39 Ref*
24 Ref
29d
30 Ref
1
33a
33b
109 Ref*
1
Pinion housing (29) includes clutch field
✬ Premium models
