Graco MAGNUM PROJECT PAINTER PLUS Quick Guide

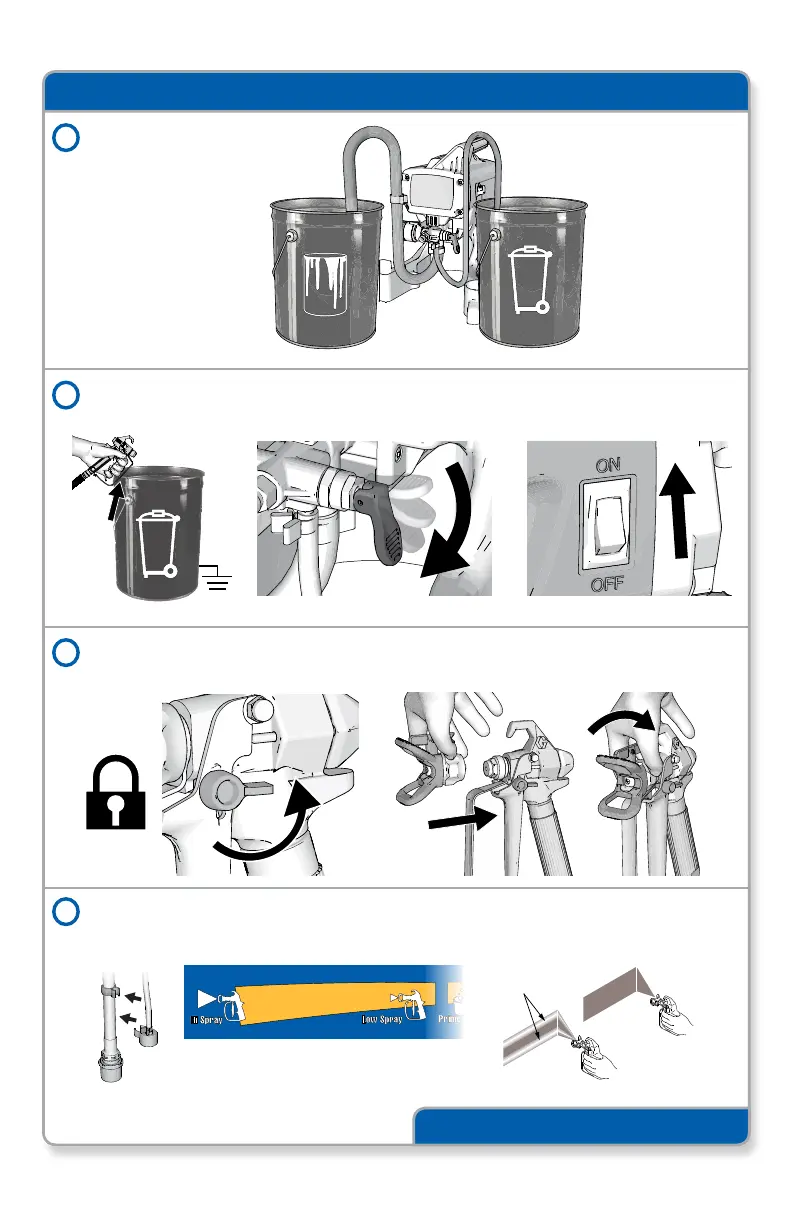

START UP – FILL PUMP, GUN & HOSE WITH PAINT
Trigger gun into waste pail, flip Prime/Spray Valve down to SPRAY and turn Power Switch ON .
When paint comes out of the gun, release trigger. Turn gun trigger lock to locked position. Thread spray tip and guard
assembly to gun.
Attach drain tube to suction tube and turn Pressure Control Knob to Spray Setting. Start at lowest
setting and increase until pattern is evenly distributed, no gaps at edge.
YOU ARE NOW READY TO SPRAY!
1
2
3
4
Submerge suction tube in paint. Turn Power
Switch ON and wait to see paint coming into
the drain tube. Turn Power Switch OFF .
1500 psi
103 bar/10.3 MPa
2800 psi
193 bar/19.3 MPa
Good
spray pattern
tails- gaps at edges
pressure
too low
ti28255a
ti28252a
2

Graco MAGNUM PROJECT PAINTER PLUS Specifications

General

Type	Airless Paint Sprayer
Maximum Pressure	2800 PSI
Flow Rate	0.24 GPM
Weight	15 lbs
Power Source	Electric
Maximum Flow Rate	0.24 GPM
Voltage	120V
Maximum Tip Size	0.015 in
Hose Length	25 ft
Spray Tip Size	0.015 in
