Graco MAGNUM PROJECT PAINTER PLUS Quick Guide

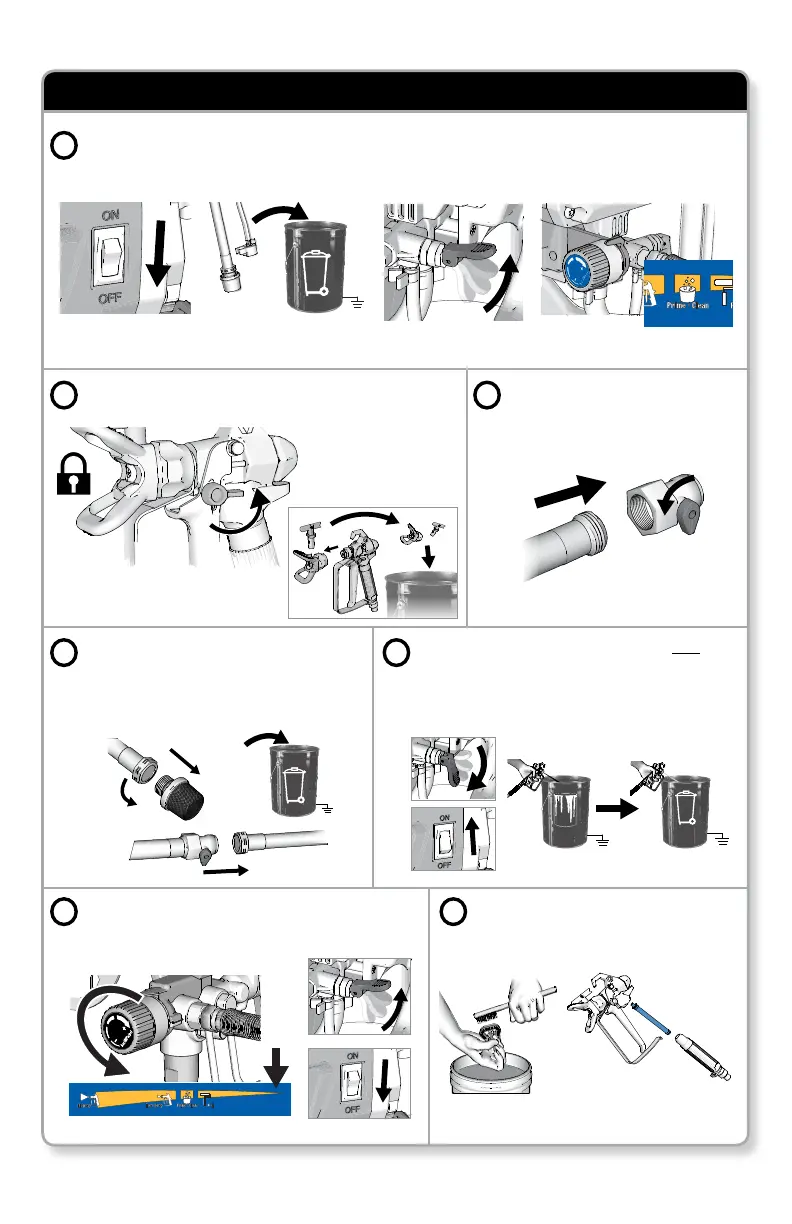

CLEAN UP: WATER-BASED PAINTS (see Owner’s Manual for oil-based paints)
3
Turn Power Switch OFF . Place suction and drain tubes in waste pail. Flip Prime/Spray Valve up to PRIME .
Turn Pressure Control Knob to Prime/Clean setting. Trigger gun into waste pail.
Unscrew inlet strainer from suction tube and place
in waste pail for cleaning. Thread Power Flush
attachment to suction tube. Turn Power Switch
ON and let water run through drain tube for
20 seconds. Turn Power Switch OFF .
Turn Pressure Control Knob to lowest setting and release
trigger. Turn gun trigger lock to locked position. Flip Prime/
Spray Valve up to
PRIME . Turn Power Switch OFF .
With the trigger lock in locked position, unthread spray tip and
guard assembly from gun. Place in waste pail for further cleaning.
TO SAVE PAINT IN HOSE : Trigger gun into paint pail,
flip Prime/Spray Valve down to SPRAY and turn Power
Switch ON . When water comes out of gun, keep gun
triggered and aim into waste pail. Continue to flush until
water runs clear.
Clean spray tip, guard, inlet strainer with
brush. Remove gun filter and clean.
Reassemble gun filter, spray tip and guard.
Thread Power Flush
™
attachment onto
garden hose, turn water on. Rinse paint
off of suction and drain tubes,
inlet screen and spray tip/guard.
1
2
4
6
5
7
3
ti28255a
ti28252a
ti28255a
ti28252a

Graco MAGNUM PROJECT PAINTER PLUS Specifications

General

Type	Airless Paint Sprayer
Maximum Pressure	2800 PSI
Flow Rate	0.24 GPM
Weight	15 lbs
Power Source	Electric
Maximum Flow Rate	0.24 GPM
Voltage	120V
Maximum Tip Size	0.015 in
Hose Length	25 ft
Spray Tip Size	0.015 in
