Graco MARK V Operation Manual

Hose Reel
332916E 19

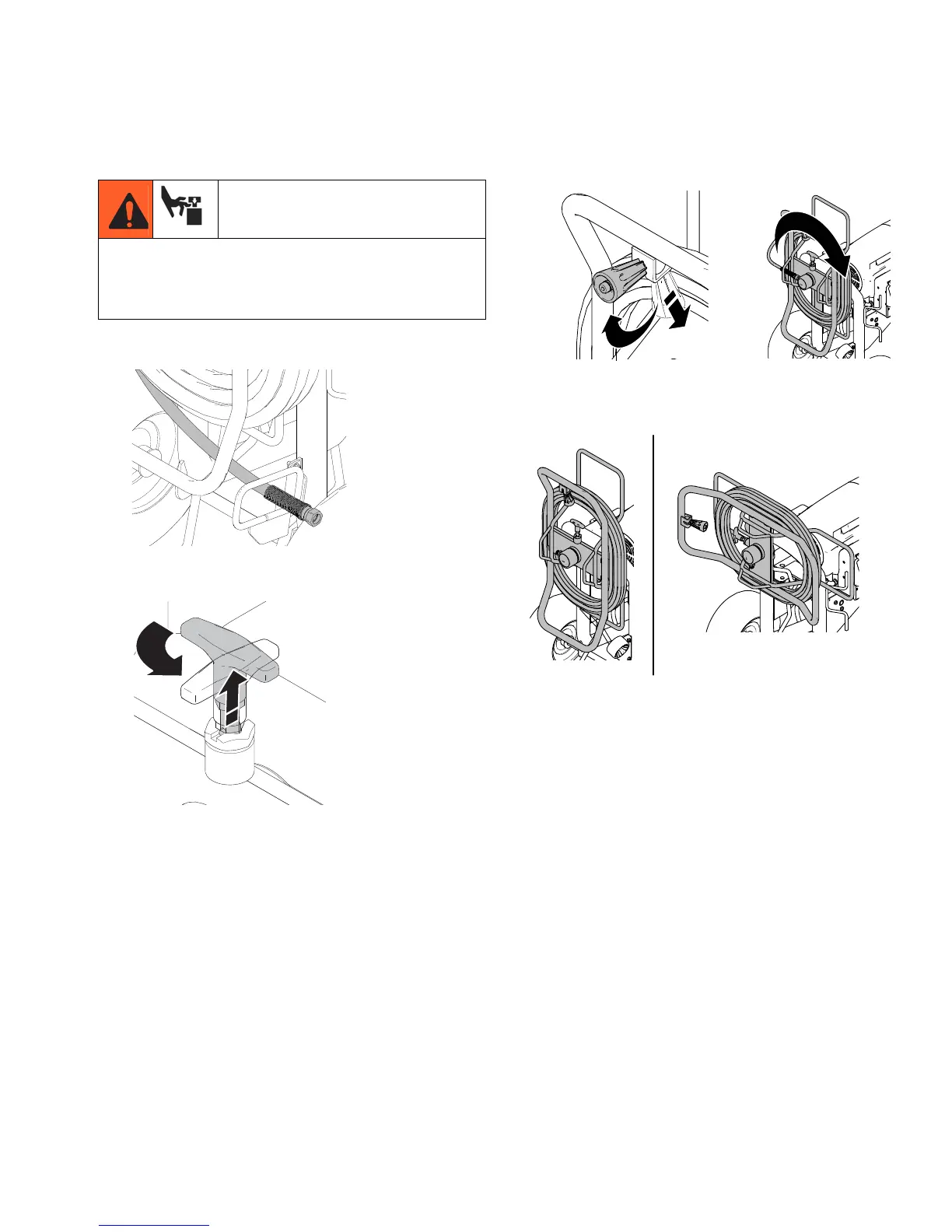

Hose Reel
(ProContractor models only)
1. Make sure hose is routed through hose guide.
2. Lift and turn pivot lock 90° to unlock hose reel. Pull
on hose to remove it from hose reel.
3. Pull reel handle up and turn clockwise to reel in
hose.
NOTE: The hose reel can be locked into two positions:
Usage (A) and Storage (B).
Moving parts can pinch, cut or amputate fingers and
other body parts. To avoid injury from moving parts, be
sure to keep your head clear of hose reel while winding
up hose.
ti18241a
ti13501c
ti13503b
ti13502b
(A)
(B)
ti13563b
