Cleanup
332916E
23
9.
Remove filters from gu
n and sprayer, if installed.
Clean and inspect.
Install filters.
10.
If flushing with water, flush again
with mineral spir-
its, or Pump
Armor, to leave
a protective coat
ing to
prevent free
zing or corrosion.
11.

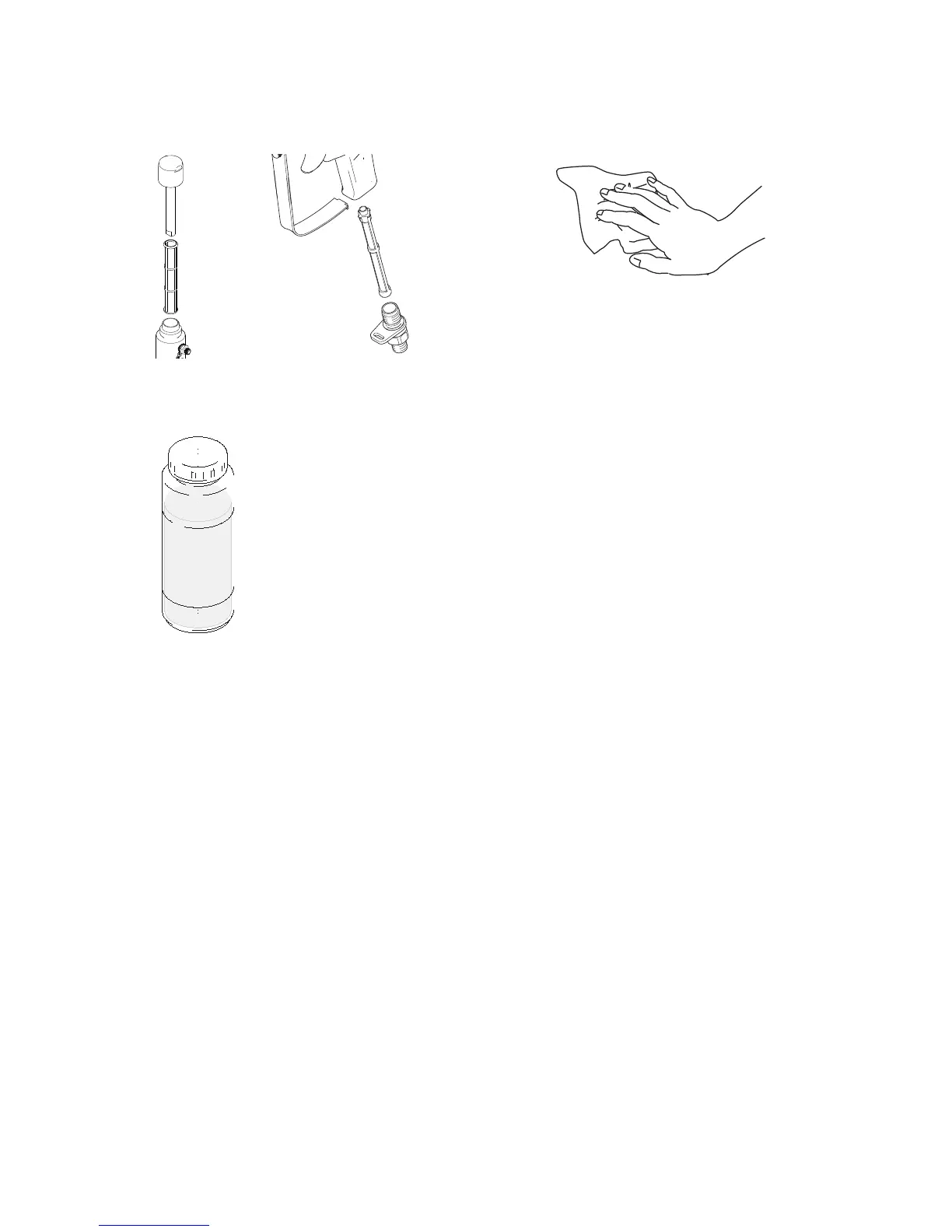

Wipe sprayer, hose and gun with a rag soaked in
water or mineral spirits.
ti13454a
ti15018a
ti2895a
Pump Armor
ti2776a
22
24
