Graco Mark VII - Page 52

Diagrams and Parts
52 3A6342A

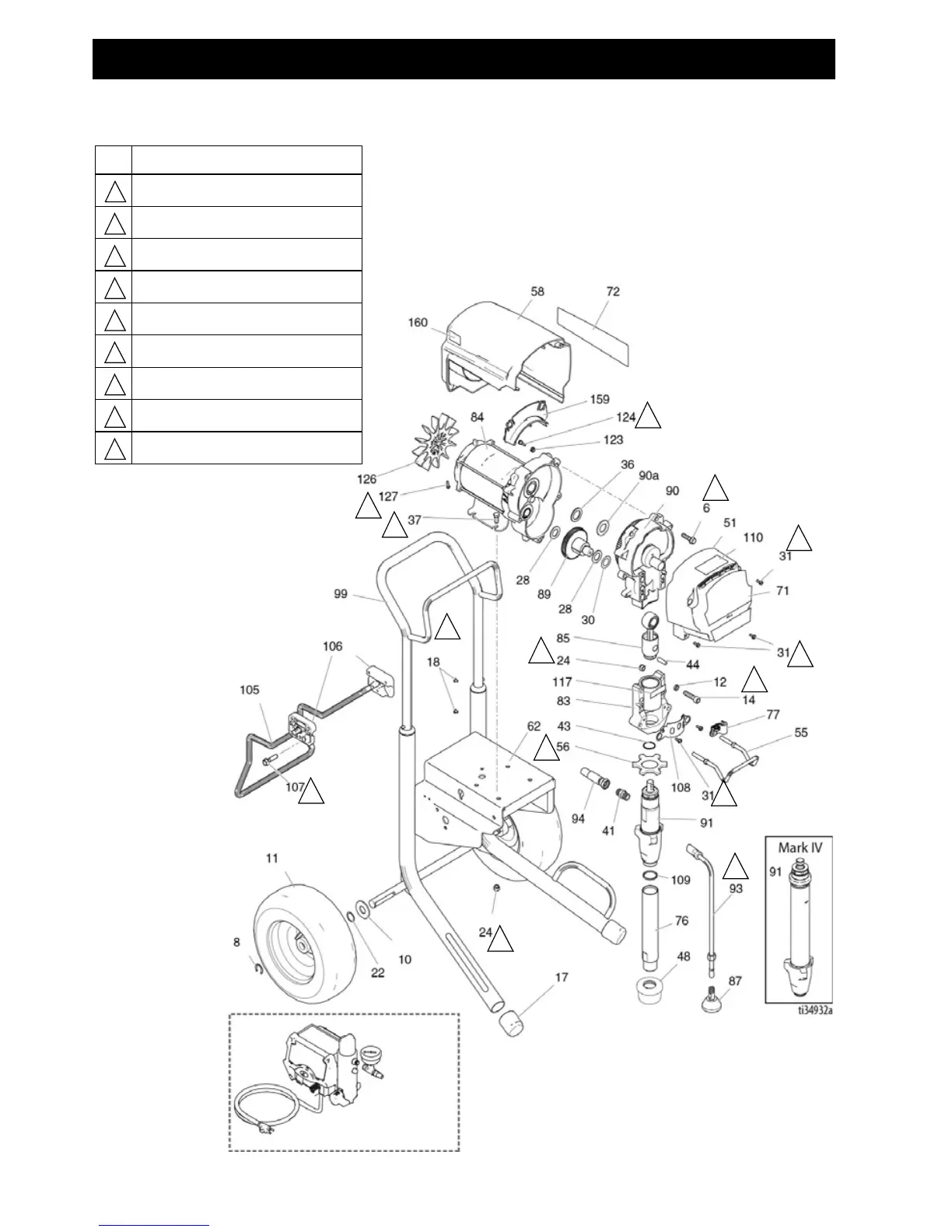

695/795/Mark IV Hi-Boy Standard Diagram
1
1
9
9
1
2
9
3
3
4
5
6
6
7
8
Ref. Torque
40-45 in-lb (4.5 - 5.0 N•m)
9-11 in-lb (1.0 - 1.2 N•m)
200-230 in-lb (22.6 - 25.9 N•m)
190-210 in-lb (21.4 - 23.7 N•m)
22-28 in-lb (2.4 - 3.1 N•m)
25-30 ft-lb (33.8 - 40.6 N•m)
70-80 ft-lb (94.9 - 108.4 N•m)
130-150 in-lb (14.6 - 16.9 N•m)
65-85 in-lb (7.3 - 9.6 N•m)
1
2
3
4
5
6
7
8
9
9
See pages
72-77.
