Graco Mark VII - Page 66

Diagrams and Parts
66 3A6342A

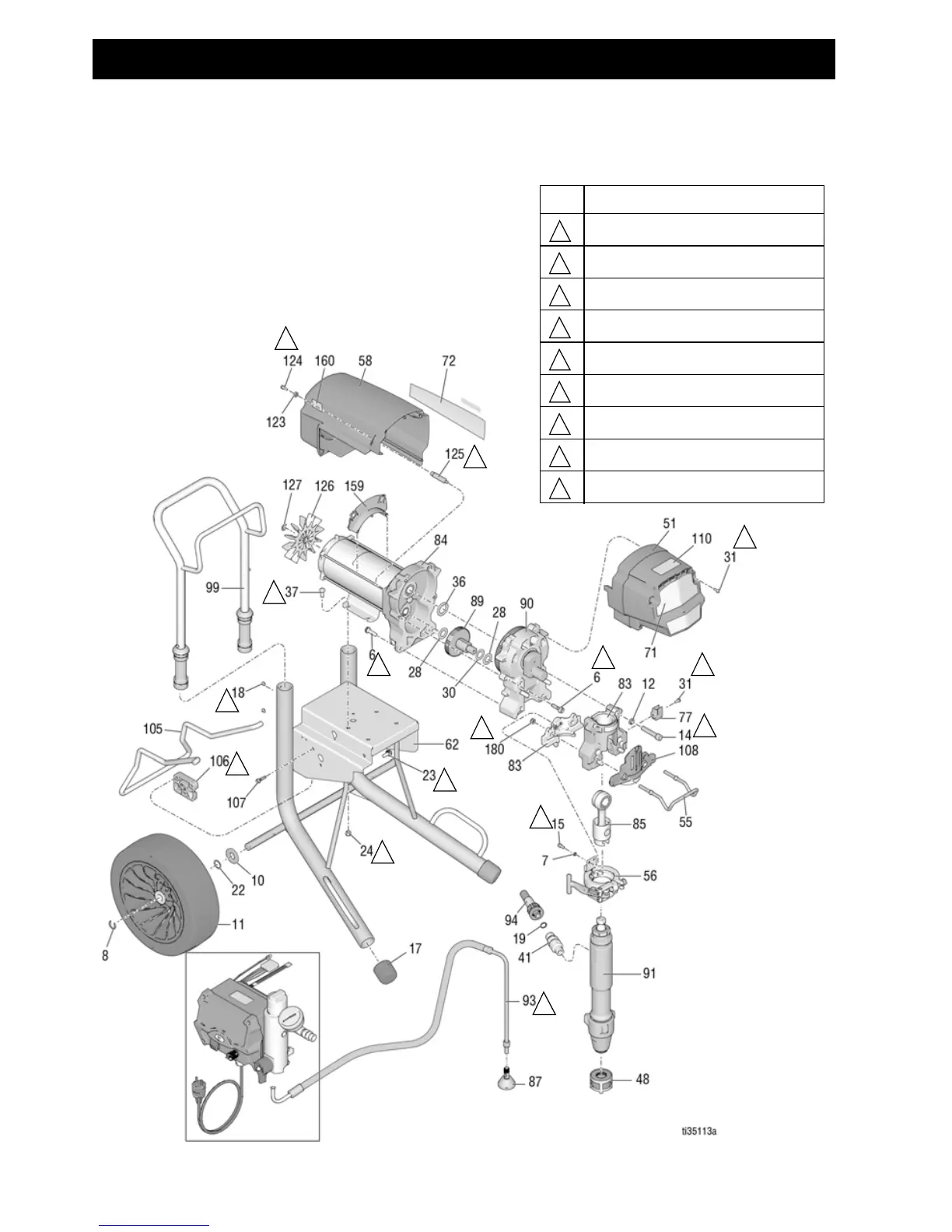

Mark X IronMan Parts
Diagram
Ref. Torque
40-45 in-lb (4.5 - 5.0 N•m)
55-60 in-lb (6.2 - 6.7 N•m)
200-230 in-lb (22.6 - 25.9 N•m)
190-210 in-lb (21.4 - 23.7 N•m)
22-28 in-lb (2.4 - 3.1 N•m)
25-30 ft-lb (33.8 - 40.6 N•m)
130-150 in-lb (14.6 - 16.9 N•m)
90-110 in-lb (10.1 - 12.4 N•m)
65-85 in-lb (7.3 - 9.6 N•m)
1
2
3
4
5
6
7
8
9
1
2
3
4
5
7
3
3
9
8
1
6
4
9
6
See pages 72-77.
