Graco Modu-Flo AL-5M - Pneumatic Pump

Parts
8 332042D
Parts

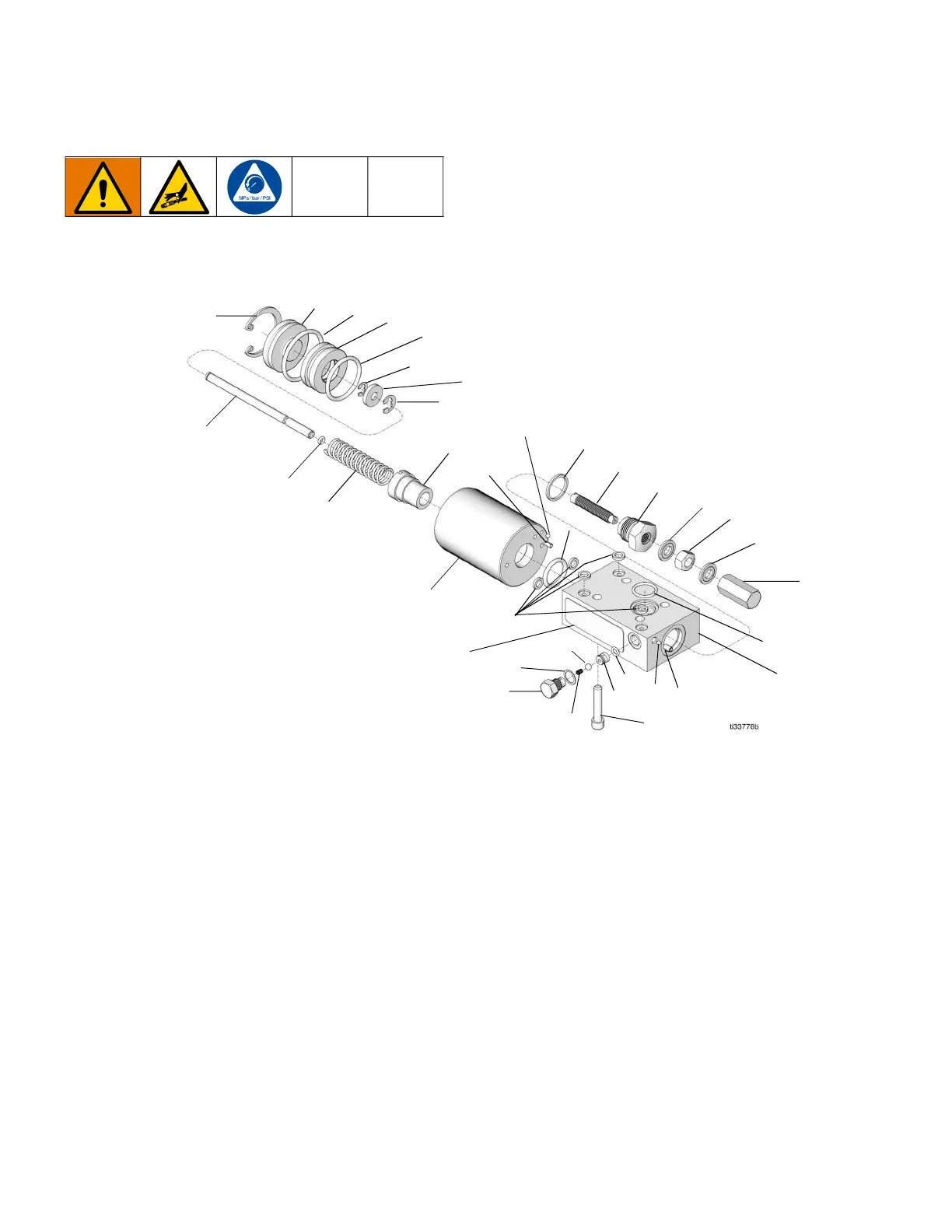

Pneumatic Pump
Part No./Description
6
8
2
33
27
3
7
29
34
12
9
10
11
25
1
22
19
5
13
14
21
35
17
31
15
23
4
16
30
20
26
34
28
18
24
28
Ref. Part Description Qty.
563304 PUMP ASSEMBLY, AL-5M
563306 PUMP ASSEMBLY, AL-25M
563308 PUMP ASSEMBLY, AL-50M
1❄ BODY, pump 1
2 ✿★◆ SPRING, check valve 1
3 ✿★◆ SEAT, check valve 1
4 ✿★◆ O-RING 1
5 ✿★◆ PIN, 1/8” dia x 1/4 lg 1
6 557617 SCREW, check valve enclosure 1
7 103345 SCREW, socket-head, 1/4-20 x
1-1/4
4
8 ✿★◆ GASKET 1
9 ✿ NUT, jam, hexagon, 5/16-24 1
★ NUT, jam, hexagon, 7/16-20 1
◆ NUT, jam, hexagon, 1/2-20 1
10 560741 BODY, adjustment screw, AL-5M 1
15R127 BODY, adjustment screw, AL-25M 1
557592 BODY, adjustment screw, AL-50M 1
11 557589 SCREW, adjustment, AL-5M 1
15R126 SCREW, adjustment, AL-25M 1
560740 SCREW, adjustment, AL-50M 1
12 560737 CAP, adjustment screw, AL-5M 1
560738 CAP, adjustment screw, AL-25M 1
560739 CAP, adjustment screw, AL-50M 1
13 15M726 RETAINER, air cylinder 1
14 ✿★◆ SPRING, piston return 1
15 557563 PISTON, air, AL-5M 1
557567 PISTON, air, AL-25M 1
557570 PISTON, air, AL-50M 1
16 557562 CAP, cylinder, AL-5M 1
557566 CAP, cylinder, AL-25M 1
557569 CAP, cylinder, AL-50M 1
17 560728 RETAINER, spring, AL-5M 1
560727 RETAINER, spring, AL-25M 1
560721 RETAINER, spring, AL-50M 1
18❄ PISTON, lube 1
Ref. Part Description Qty.
