13
307-043
Parts
05705
10
**16
17
13**
14**
15
30
*18
20
24
25
9
21
31
33
32
7
*11
29
28**
12**
13**
1
37
**19
8
27**
22**
**23
26
35
34
NOTE:
Seal
lips face upward
3
4
2
5
36
6
STANCHION TUBE MOUNTING

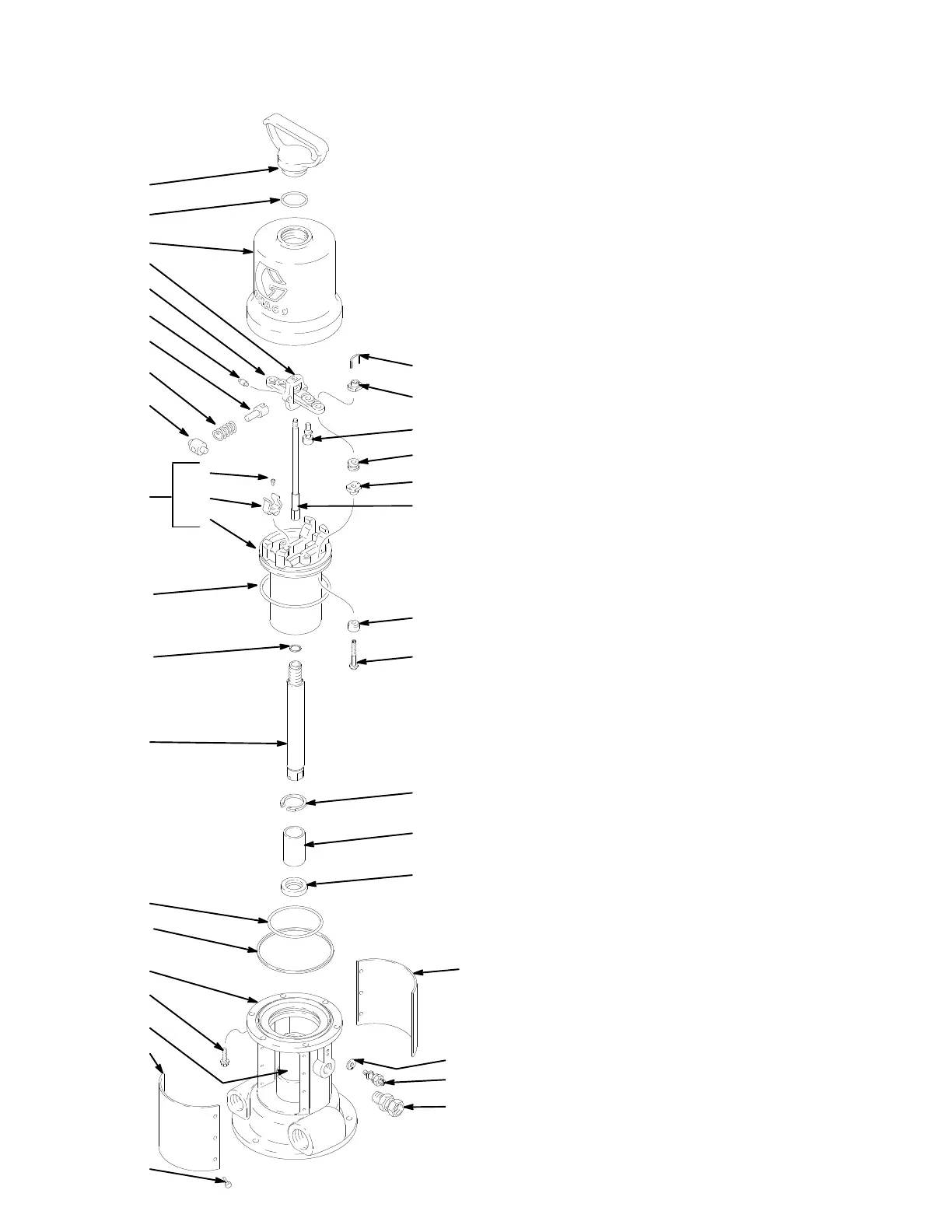

Model 206–955, Series G
Air Motor Assembly
Includes items 1–37
Ref.
No.
Part No. Description Qty.
1 100–078 SCREW , hex head;
no. 8–32 x 0.38 in. (10 mm) long. 8
2* 101–524 SEAL 1
3 101–525
RING, retainer 1
4 101–526 BEARING 1
5 101–578 SCREW
, hex head;
5/16 x 0.875 in. (10 mm) long 6
6 155–665
UNION, straight adapter;
3/8 npt(mxf) 1
7* 156–698 O-RING; buna-N 1
8 158–360
YOKE, rod, trip 1
9 158–362
PIN, toggle 2
10 158–364 ROCKER, toggle 2
11* 167–585 SPRING, helical compression 2
12** 158–367 GROMMET
, rubber , air intake 2
13** 160–261 NUT
, adjusting 4
14** 160–618 LOCKWIRE, transfer valve 2
15 172–867 ACTUATOR, valve 1
16** 160–621 O-RING, nitrile rubber 1
17 160–623
ARM, toggle 2
18*
160–624 O-RING, buna-N 1
19** 160–625 O-RING, buna-N 1
20 160–885 BASE 1
21
160–886 ROD; piston 1
22** 160–896 STEM, valve 2
23**
160–932 GASKET ; copper 1
24 164–186 CYLINDER 1
25
164–704 NUT , cap; with carry handle 1
26 172–452 PLA
TE, identification 1
27** 170–708 POPPET
, valve; urethane 2
28** 170–709 POPPET , valve; urethane 2
29 203–965 ROD, trip 1
30* 214–036 PISTON Assy; Includes items 31–33
(also includes repair kit 206–728 when
ordered as a replacement part) 1
31 102–975  SCREW , rd hd mach;
no. 6–32 x 0.25” (6.3 mm) 2
32 172–866  CLIP , spring 2
33
 PIST ON, bare (not sold separately) 1
34
104–029 LUG, grounding 1
35 104–582 WASHER, tab 1
36 180–233
LABEL, warning 1
37
172–443 PLA TE, warning 1
* Recommended ”tool box” spare parts. Keep on hand to
reduce down time.
**Supplied in Repair Kit 206–728. Purchase the kit separate -
ly
. See page 15.
