Component Identification and Function
ti4281a
ti2377a
K
E
H
B
A
D
J
G
F
V

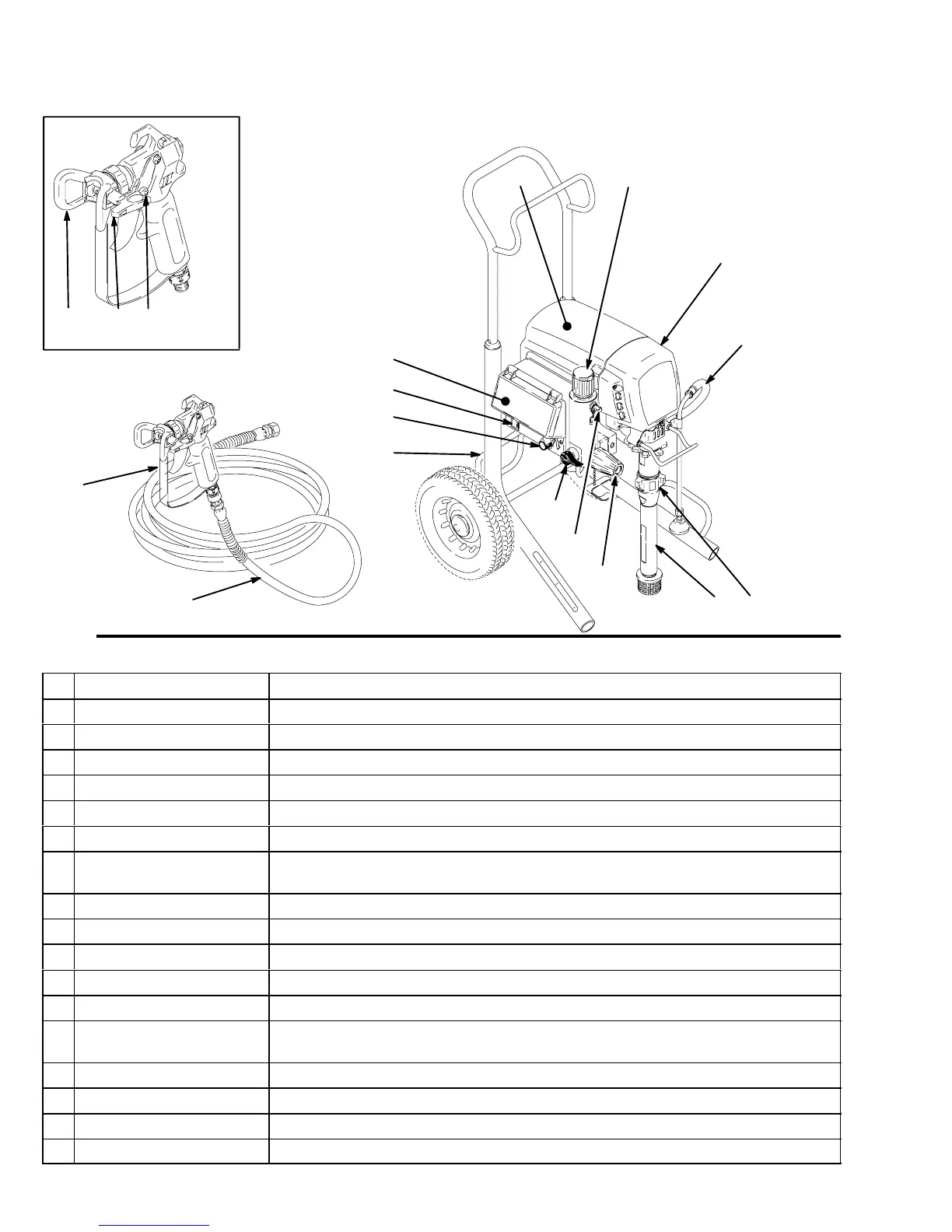

Fig. 1
U
N
M
PR
T
S
W
A Motor DC motor, permanent magnet, totally enclosed, fan cooled
B Drive Assembly Transfers power from DC motor to displacement pump
D Displacement Pump Transfers fluid to be sprayed from source through spray gun
E Fluid Outlet Spray gun is connected here
F Prime Valve Used to prime and drain sprayer (also relieves fluid outlet pressure) when open
G Fluid Filter Final filter of fluid to spray gun
H Pressure Adjusting Knob Controls fluid outlet pressure
J Pressure Control Controls motor speed to maintain fluid outlet pressure at displacement pump
outlet. Works with pressure adjusting knob.
K ON/OFF Switch Power switch that controls main power to sprayer
M 50 ft (15 m) Main Hose 1/4 in. ID, grounded, nylon hose with spring guards on both ends
N Spray Gun High pressure spray gun with gun safety latch
P Spray Tip Uses high pressure fluid to clear tip clogs without removing tip from spray gun
R HandTitet Tip Guard Tip guard reduces risk of injection injury
S Gun Safety Latch Gun safety latch inhibits accidental triggering of spray gun. Contractor II gun
shown. Refer to your gun manual to properly set your gun safety latch.
T Hose Rack Holds wrapped hose for storage
U Suction Tube Transfers fluid to be sprayed from source to pump
V Drain Tube Fluid outlet used to drain and prime the sprayer
W AutoClean Reverse flush system
